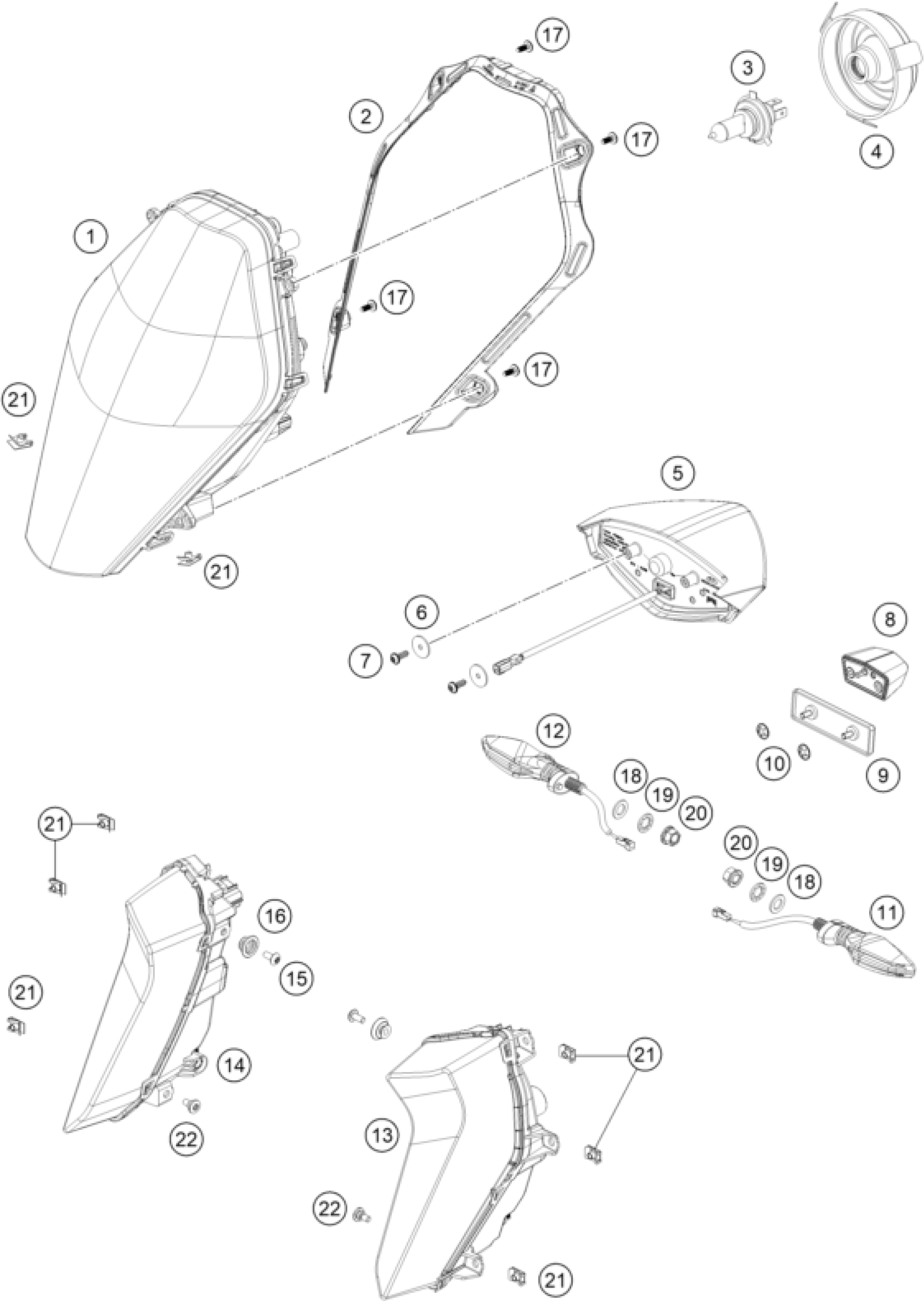

KTM 1290 SUPER DUKE GT GREY 17 <2017> LIGHTING SYSTEM Diagram

#

Description
Price

1

HEADLIGHT

61414001000

$686.66

2

HEADLIGHT FRAME

61414037000

$40.66

3

BULB H4 12V 60/55W X-VISION

61414003000

Unavailable

4

RUBBER CAP FOR HEAD LIGHT

61314001050

$15.42

5

Rear light Superduke SAE

61314140300

$259.17

6

WASHER DIN522 A2K 4.3X20X1.25

0522040003

$1.49

7

EJOT PT screw K50x14

0081050141

$1.49

8

license plate lighting

60314047000

$35.62

9

REFLECTOR RED

58412080000

$5.23

10

LOCK WASHER D5

60408061060

$1.49

11

turn signal front left/rear ri

60314025000

$42.61

12

turn signal front right/rear l

60314026000

$42.61

13

CORNERING LIGHT L/S

61414007000

$463.56

14

CORNERING LIGHT R/S

61414008000

$463.56

15

Oval head screw M5x14 TX25

58605083014

$3.08

16

BUSH CORNERING LIGHT

61414007010

$5.88

17

SCREW FOR PLASTIC K45X12 T20

0081045121

$1.49

18

Washer DIN0433-M10

0433100003

$1.49

19

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

20

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

21

clip nut M5

69008021080

$3.08

22

special screw M5x12

69008021160

$4.11
