Description

Price

1

AIR FILTER HOUSING LOWER PART

60306001200

$42.16

2

AIR FILTER BOX COVER

60306002000

$43.00

3

OIL SEPARATOR

60330088100

$37.67

4

CLAMP YDNAC 10128 12MM

58031005000

$3.08

5

Special screw K60X30 WS=6

0017060305

$2.05

6

EJOT PT SCREW K50X16 1451

0081050161

$1.49

7

O-RING 21,00X2,00 NBR70

0770021020

$2.05

9

FILTERCLAMPING FRAME

60406016000

Unavailable

10

Air filter

60706015000

$10.84

11

FILTERCLAMPING LINER

60406017000

$7.28

15

O-RING 66X2,5 FKM

0770066025

$6.35

17

OIL SEPARATOR FOAM HOSE

60330088030

$9.53

18

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

19

Intake duct, left

61506041000

$31.22

20

Intake duct, right

61506040000

$31.22

21

GASKET INTAKE CHANNEL

61406040050

$13.36

22

GASKET INTAKE CHANNEL

61406041050

$13.36

31

HOSE NBR 7X11 PER METER

60015019001

$7.66

34

MOUNTING BRACKET PLUG

61311099000

$5.98

35

PLUG FUEL DRAIN

90515011000

$1.49

41

INSULATION MAT MIDDLE

61306095010

$20.75

42

INSULATION MAT L/S

61306095020

$17.01

43

INSULATION MAT R/S

61306095030

$17.48

36

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

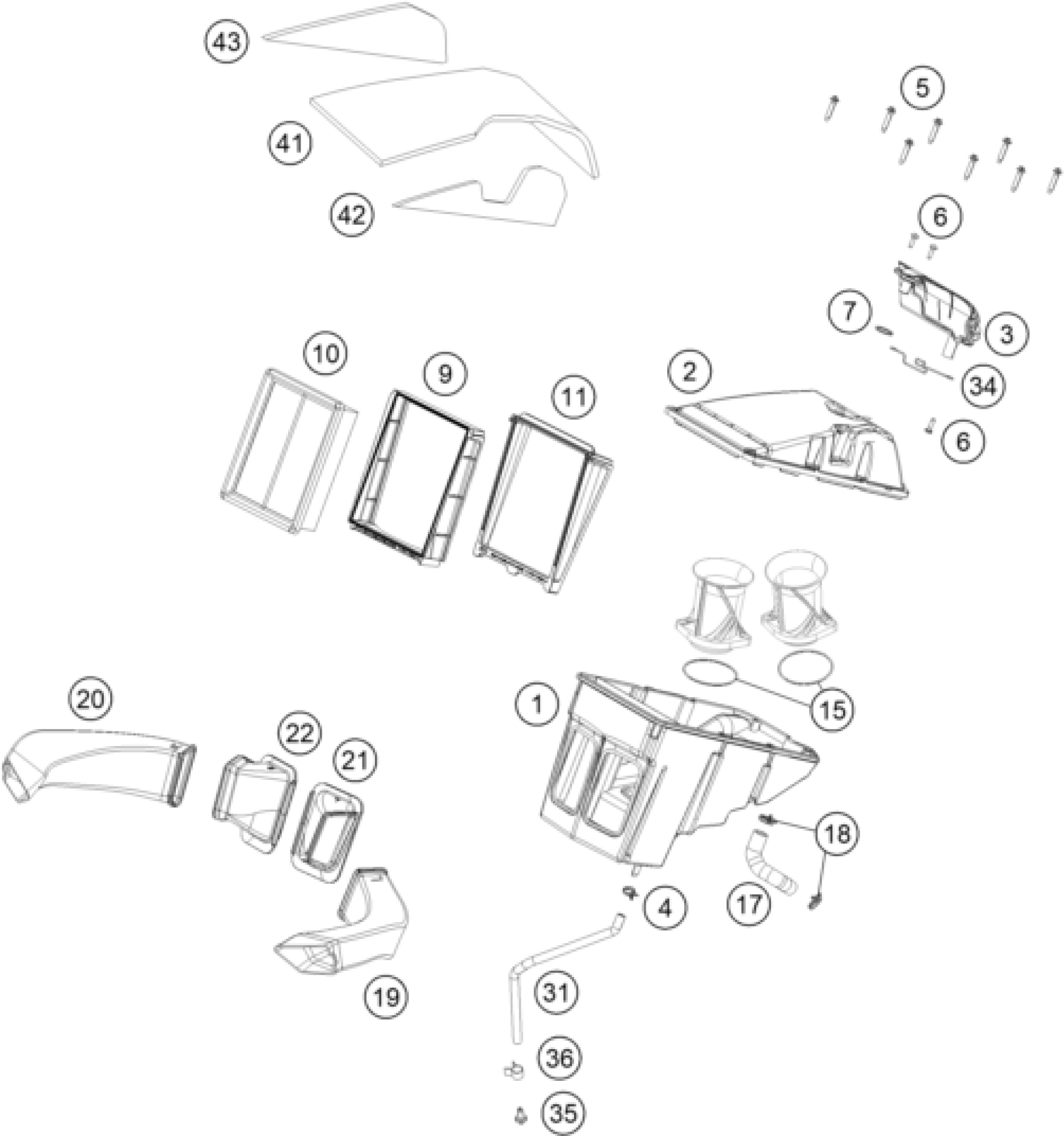

KTM 1290 SUPER DUKE GT, black 2021 AIR FILTER Diagram

AIR FILTER HOUSING LOWER PART

AIR FILTER BOX COVER

OIL SEPARATOR

CLAMP YDNAC 10128 12MM

Special screw K60X30 WS=6

EJOT PT SCREW K50X16 1451

O-RING 21,00X2,00 NBR70

FILTERCLAMPING FRAME

Air filter

FILTERCLAMPING LINER

O-RING 66X2,5 FKM

OIL SEPARATOR FOAM HOSE

YDNAC-clamp 10173 (16MM)

Intake duct, left

Intake duct, right

GASKET INTAKE CHANNEL

GASKET INTAKE CHANNEL

HOSE NBR 7X11 PER METER

MOUNTING BRACKET PLUG

PLUG FUEL DRAIN

INSULATION MAT MIDDLE

INSULATION MAT L/S

INSULATION MAT R/S

YDNAC-CLAMP 10107 10MM
