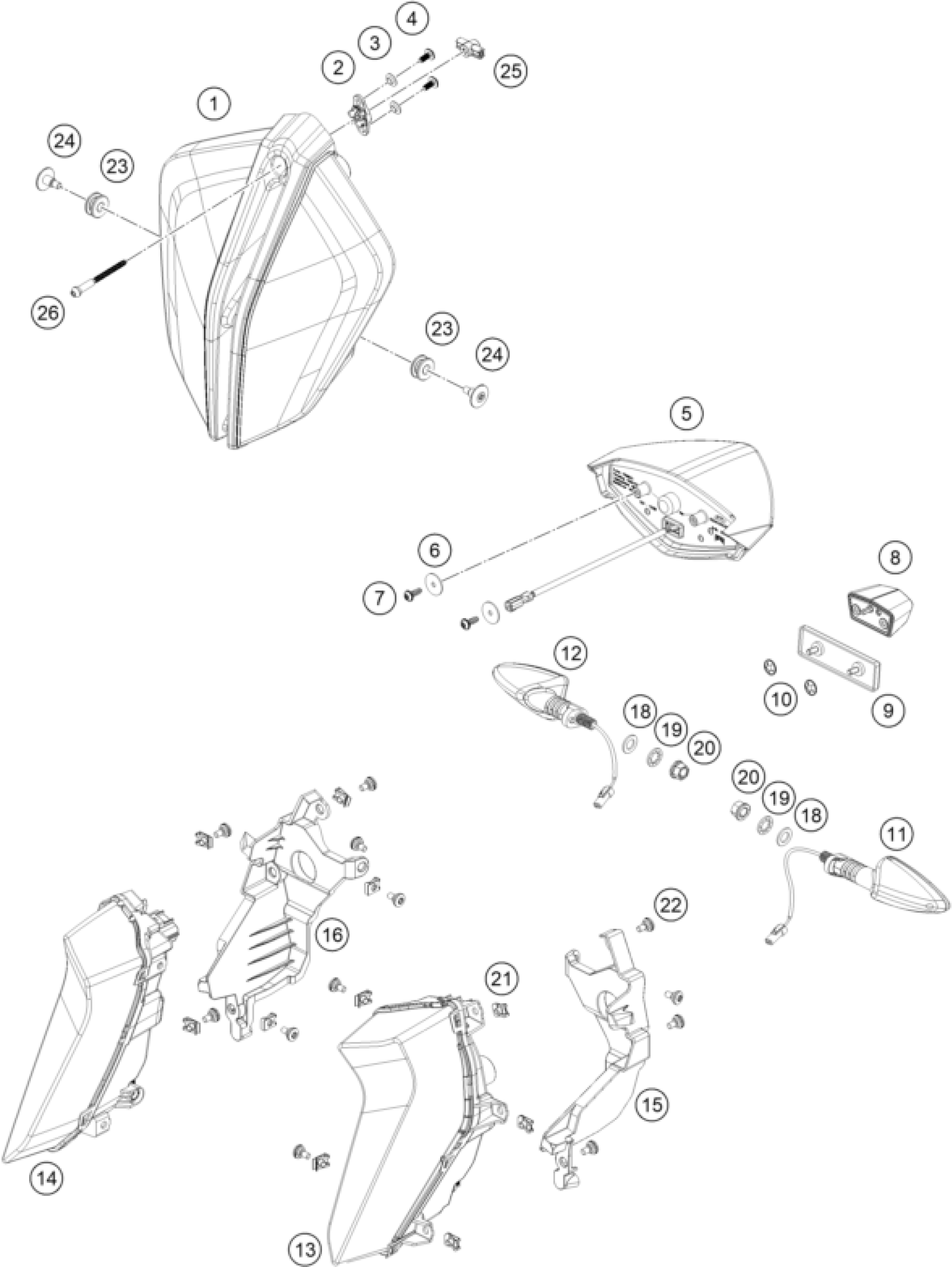

KTM 1290 Super Duke GT, black 2020 LIGHTING SYSTEM Diagram

#

Description
Price

1

Headlight LED

61614001000

$1,104.69

2

Ballhead holder

61614020100

$13.92

3

Bush 13X7X3.3

61412032010

$1.49

4

EJOT ALTRACS 50X12

61614018100

$1.49

5

Rear light Superduke SAE

61314140300

$259.17

6

WASHER DIN522 A2K 4.3X20X1.25

0522040003

$1.49

7

EJOT PT screw K50x14

0081050141

$1.49

8

license plate lighting

60314047000

$35.62

9

Rear reflector red

58412080400

$5.23

10

LOCK WASHER D5

60408061060

$1.49

11

FLASHER CPL.FRONT L/S REAR R/S

78114025000

$32.72

12

FLASHER CPL.FRONT R/S REAR L/S

78114026000

$32.72

13

Cornering light left

61414007100

$463.56

14

Cornering light right

61414008100

$463.56

15

Bracket, cornering light left

61514007010

$8.50

16

Bracket, cornering light right

61514008010

$6.63

18

Washer DIN0433-M10

0433100003

$1.49

19

LOCK WASHER DIN6797-J10,5 ZI

0797100003

$1.49

20

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

21

clip nut M5

69008021080

$3.08

22

special screw M5x12

69008021160

$4.11

23

Rubber bushing

61614013050

$2.05

24

Special screw M6x18

61514021000

$9.81

25

Ball-head screw shaft

61514019000

$5.88

26

Ball-head screw

61514020010

$5.79
