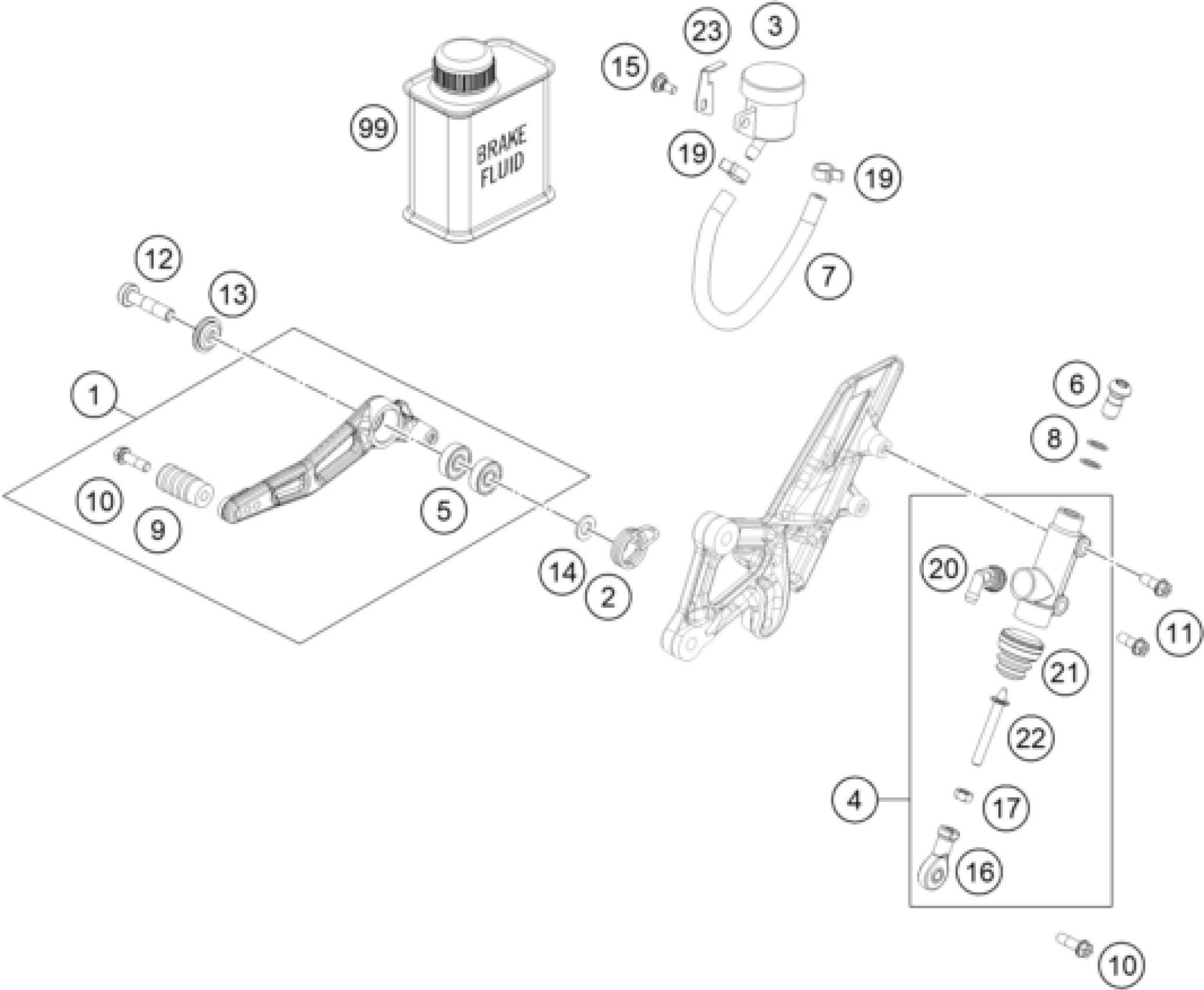

KTM 1290 Super Duke GT, black 2020 REAR BRAKE CONTROL Diagram

#

Description
Price

1

FOOT BRAKE LEVER CPL.

6131305004433S

Unavailable

2

SPRING

61313052000

Unavailable

3

reservoir, rear cpl.

61013069000

Unavailable

4

REAR BRAKE CONTROL

6031306000030

Unavailable

5

Grooved ball bearing 608 2RS C

0625006087

Unavailable

6

banjo bolt M10x1x19.5

62113020100

Unavailable

7

HOSE FOR RESERVOIR 6X1,5

69013069001

Unavailable

8

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

9

Brake lover pedal Duke 94

58303060051

Unavailable

10

HH collar screw M6x20 TX30

0025060206S

Unavailable

11

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

12

AH collar screw M8x30 ISA45

0035080306S

Unavailable

13

SPECIAL WASHER D=23X7,2MM

61334041000

Unavailable

14

washer DIN 125 A -8.4

0125080003

Unavailable

15

Screw for expansion tank

69013099050

Unavailable

16

SWIVEL HEAD M6 FOOT BRAKE LEV.

54603069000

Unavailable

17

Hex. nut DIN 934 M6

0934060003

Unavailable

19

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

20

ANGLE PIECE

54513155000

Unavailable

21

RUBBER SLEEVE

54513151000

Unavailable

22

PUSH ROD CPL.

60313056044

Unavailable

99

Brake fluid DOT5.1 0,25L

00062030000

Unavailable

23

Lock washer, brake fluid reser

61713069020

Unavailable
