LIGHTING SYSTEM

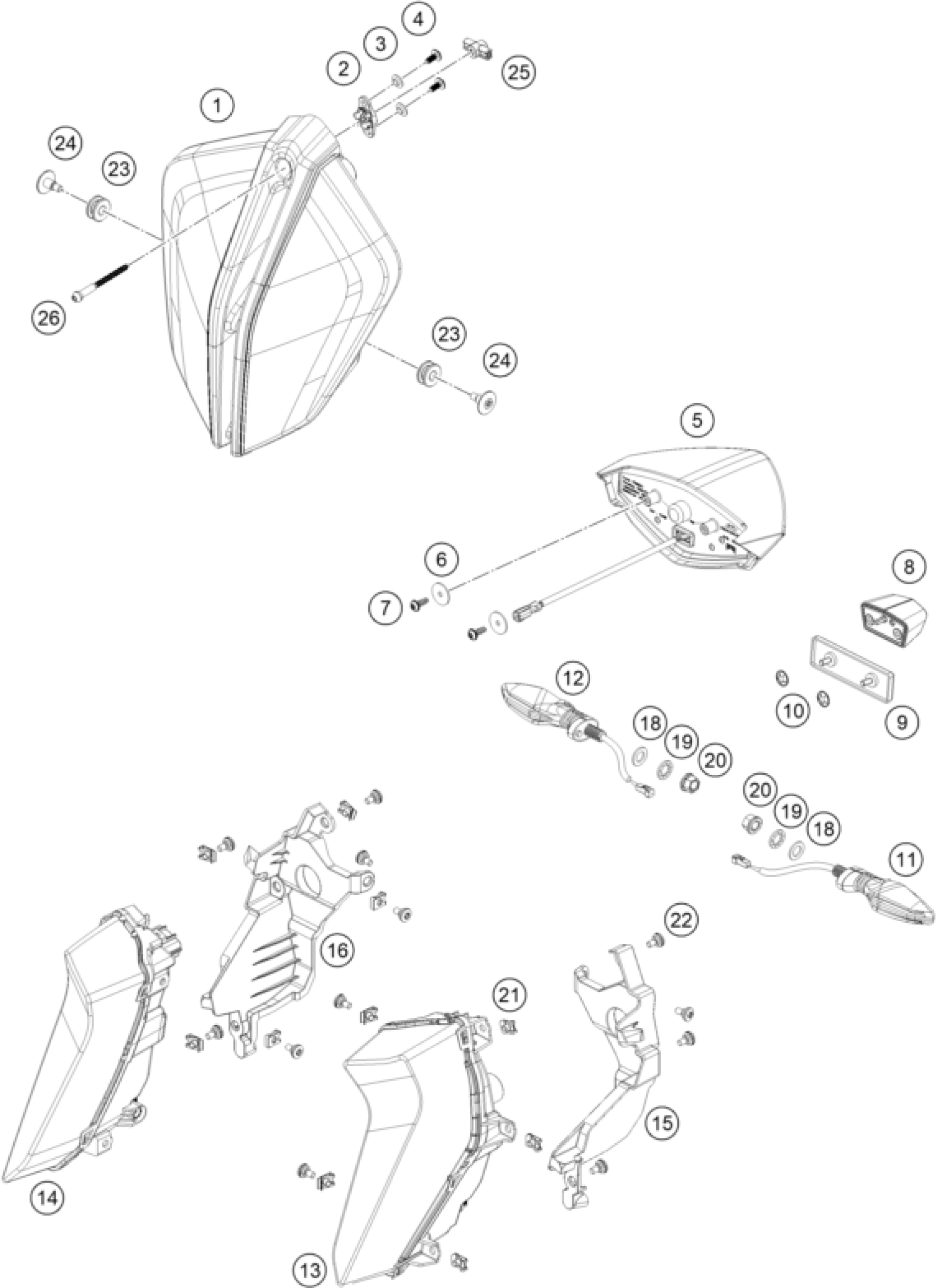

KTM 1290 Super Duke GT, black 2020 LIGHTING SYSTEM Diagram
#
Description
Price
1
Headlight LED
61614001000
$1,104.69
2
Ballhead holder
61614020100
$13.92
3
Bush 13X7X3.3
61412032010
$1.49
4
EJOT ALTRACS 50X12
61614018100
$1.49
5
Rear light Superduke SAE
61314140300
$259.17
6
WASHER DIN522 A2K 4.3X20X1.25
0522040003
$1.49
7
EJOT PT screw K50x14
0081050141
$1.49
8
license plate lighting
60314047000
$35.62
9
Rear reflector red
58412080400
$5.23
10
LOCK WASHER D5
60408061060
$1.49
11
turn signal front left/rear ri
60314025000
$42.61
12
turn signal front right/rear l
60314026000
$42.61
13
Cornering light left
61414007100
$463.56
14
Cornering light right
61414008100
$463.56
15
Bracket, cornering light left
61514007010
$8.50
16
Bracket, cornering light right
61514008010
$6.63
18
Washer DIN0433-M10
0433100003
$1.49
19
LOCK WASHER DIN6797-J10,5 ZI
0797100003
$1.49
20
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
21
clip nut M5
69008021080
$3.08
22
special screw M5x12
69008021160
$4.11
23
Rubber bushing
61614013050
$2.05
24
Special screw M6x18
61514021000
$9.81
25
Ball-head screw shaft
61514019000
$5.88
26
Ball-head screw
61514020010
$5.79
