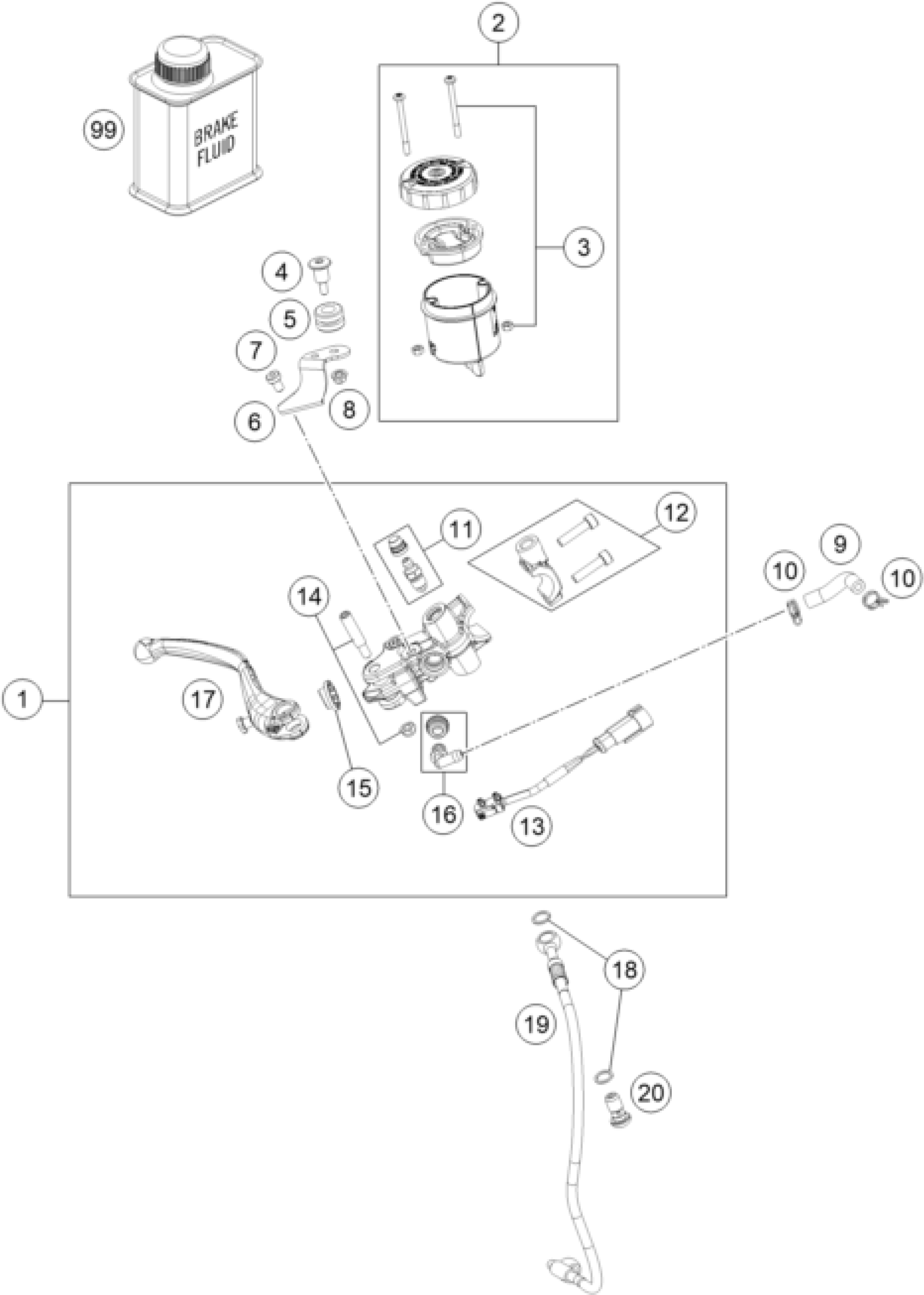

KTM 1290 Super Duke GT, black 2020 FRONT BRAKE CONTROL Diagram

Front master cylinder PR16/19

6131310100030

$408.77

BRAKE FLUID RESERV. BLACK CPL.

61313029000

$64.51

SCREW + NUT F. RESERVOIR

61013009203

$17.10

SCREW RET.PANEL-RESERVOIR

61013013050

$9.06

RUBBER BUSH 05

61013013000

$3.08

Retaining brkt., front brake f

61513028000

$17.76

SCREW RET.PANEL-BRAKE CYLINDER

61013021000

$1.49

NUT FOR RESERVOIR

61013009004

$3.08

HOSE FOR RESERVOIR 6X1,5

69013069001

$16.35

YDNAC-clamp 10101 (10.4MM)

58007017000

$3.08

BLEEDER SCREW WITH CAP

60013020000

$7.38

CLAMP CPL. 16

76013005100

$64.32

BRAKE LIGHT SWITCH FRONT

61311050000

$61.14

LEVER SCREW CPL. 05

61013006000

$12.43

RUBBER CUP 05

61013008000

$7.66

ANGLE PIECE

54513155000

$14.58

HAND BRAKE LEVER LOOSE BLACK

6101300200030

$126.03

sealing ring DIN 7603 10x14x1

0603100141

$2.05

BRAKE HOSE HANDBREAK CYLINDER,

61442001000

$56.65

banjo bolt M10x1x19.5

62113020100

$8.78

Brake fluid DOT5.1 0,25L

00062030000

$12.52
