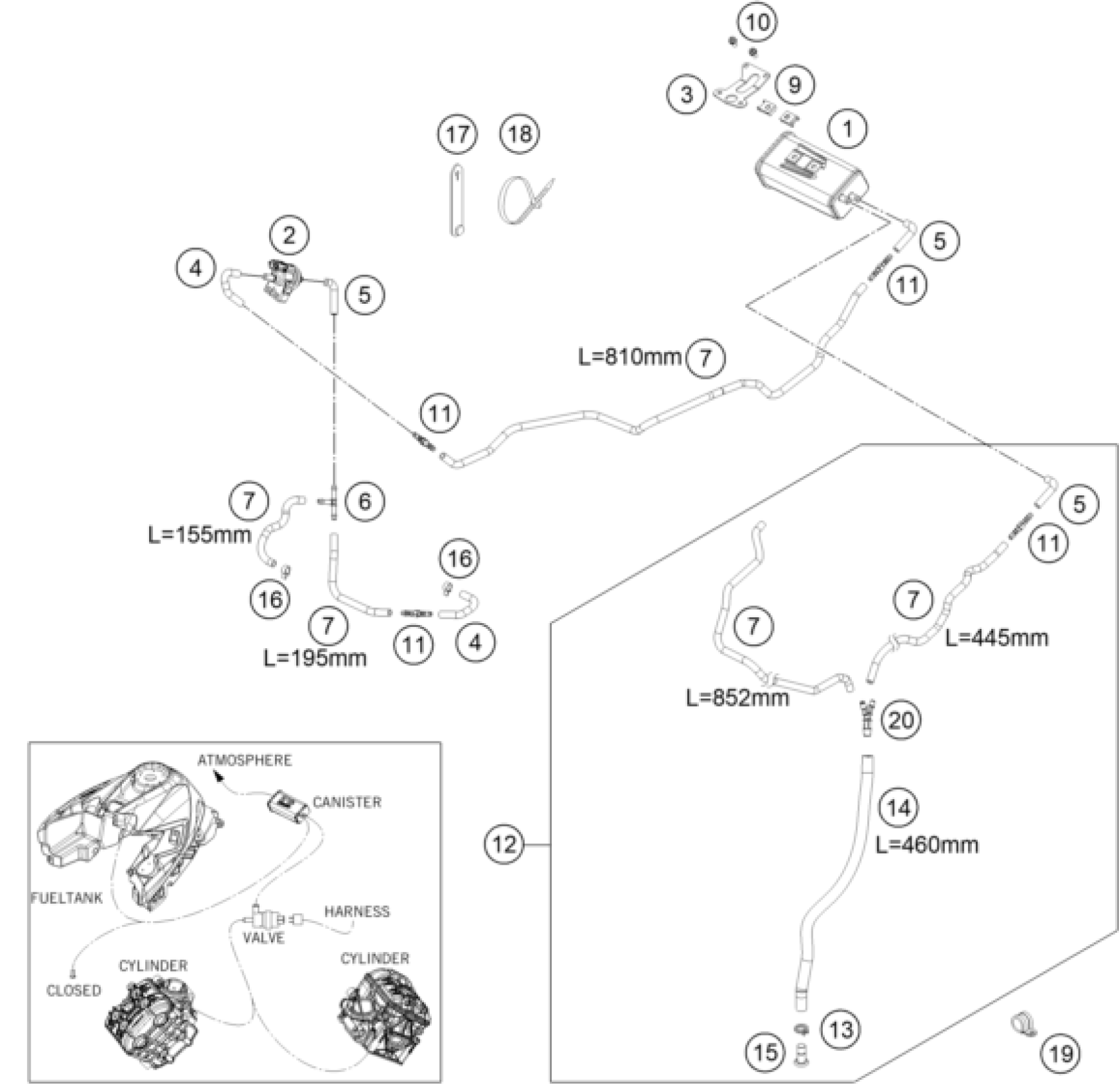

KTM 1290 Super Duke GT, black 2020 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

CARBON CANISTER

75015001200

$66.66

2

EVAP valve

76015015000

$254.78

3

BRACKET FOR CARBON CANISTER

61415002000

$16.54

4

HOSE PURGE VALVE

61415021000

$25.05

5

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

6

T-connector TS-6 03

60015022000

$5.98

7

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

9

clip nut M6

54603048100

$4.11

10

HH collar screw M6x12 TX30

0025060126

$3.08

11

HOSE CONNECTION STRAIGHT

69015019010

$5.23

12

TANK VENT. TUBE - AKF

61415025033

$134.16

13

YDNAC-clamp 10173 (16MM)

58431082100

$1.49

14

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

15

PLUG D=10

61315026000

$21.87

16

CLAMP YDNAC 10096F (9,6MM)

59007017000

$2.05

17

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

17

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

18

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

19

CABLE CLAMP D=16

61315027000

$6.35

20

Y-CONNECTOR YS 6-10-6

61315028100

$8.41
