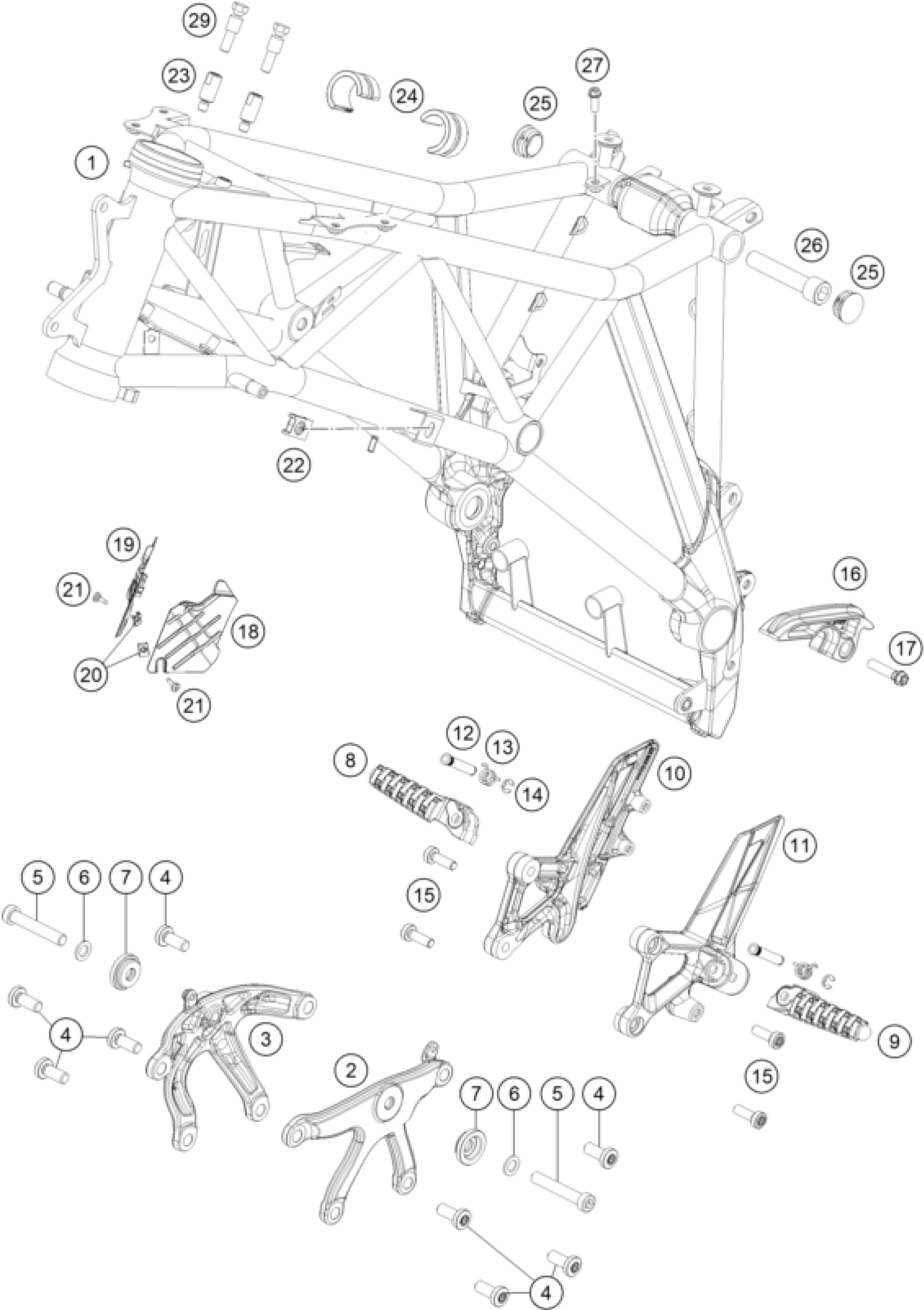

KTM 1290 Super Duke GT, black 2019 FRAME Diagram

#

Description
Price

1

Frame 615SA

61503001000EB

Unavailable

2

ENGINE SUPPORTL/S BLACK

6030300500033S

Unavailable

3

ENGINE SUPPORT R/S BLACK

6030300600033S

Unavailable

4

AH collar screw M10x24 ISA45

0035100249

Unavailable

5

AH-COLLAR SCREW M10X60 ISA45

0035100609S

Unavailable

6

Washer DIN0433-M10

0433100003

Unavailable

7

BUSHING MOTOR MOUNTING

60303010000

Unavailable

8

FOOTREST FRONT R/S 13

6900314100033S

Unavailable

9

FOOTREST FRONT L/S 13

6900314000033S

Unavailable

10

FOOTREST SUPPORT FRONT R/S BL.

6130303910033S

Unavailable

11

FOOTREST PLATE FR. L/S

6130313800033S

Unavailable

12

footrest bolt, rear

60003044100

Unavailable

13

SPRING FOOTREST FRONT 05

61003042000

Unavailable

14

retaining washer DIN 6799 - 6

0799060003

Unavailable

15

AH collar screw M8x25 ISA45

0035080256

Unavailable

16

CHAIN SLIDING BLOCK-FRAME

61304076000

Unavailable

17

HH collar screw M8x35 TX40

0025080356

Unavailable

18

Frame cover left

61503085000

Unavailable

19

FRAME COVER RIGHT

61403086000

Unavailable

20

clip nut M5

69008021080

Unavailable

21

special screw M5x17

69008021060

Unavailable

22

RANGE CHANGE METAL NUT M8

54603048000

Unavailable

23

Connecting piece keyless ignit

61503001013

Unavailable

24

SPACER FUEL TANK 05

61007014000

Unavailable

25

PLUG SFL28 05

61003088000

Unavailable

26

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

27

HH collar screw M6x12 TX30

0025060126

Unavailable

29

Tamper-proof screw

61611064000

Unavailable
