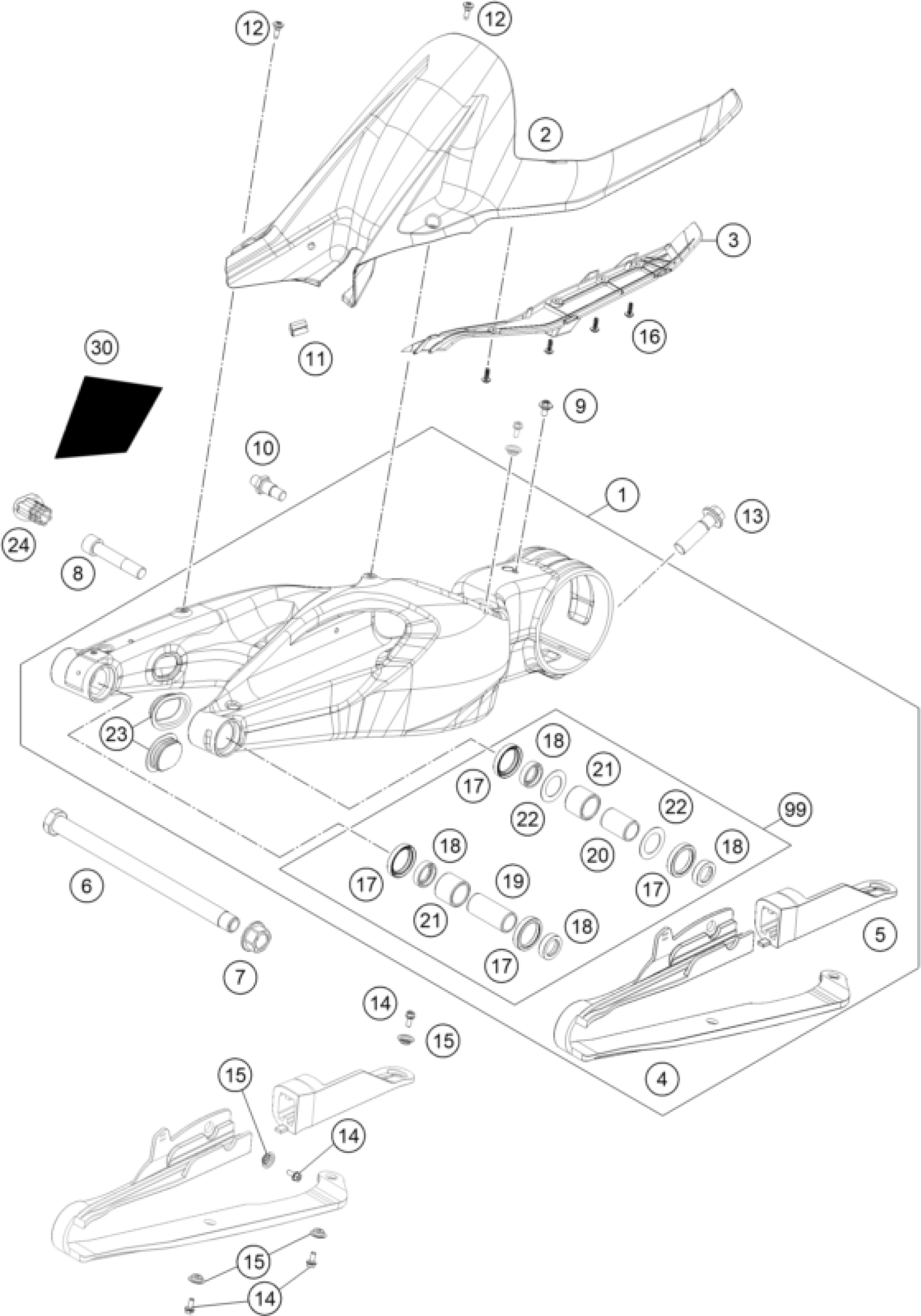

KTM 1290 Super Duke GT, black 2019 SWING ARM Diagram

#

Description
Price

1

Swingarm cmpl. SD-GT

6140403014433A

Unavailable

2

REARFENDER

61304050100

Unavailable

3

BRACKET SPLASH PROTECTOR

61304051000

Unavailable

4

CHAIN SLIDING GUARD FRONT

61304060000

Unavailable

5

CHAIN SLIDING GUARD REAR

61304070000

Unavailable

6

SWING ARM BOLT

69004037244

Unavailable

7

Collar nut M19X1.5 SW=27MM

60004038200

Unavailable

8

SCREW M14X1,5 L=73MM 03

60004017000

Unavailable

9

special screw M6x12x3

83008000012

Unavailable

10

BOLT BRAKE SADDLE BRACKET

76004142000

Unavailable

11

CABLE SUPPORT

61304042000

Unavailable

12

special screw M5x17

69008021060

Unavailable

13

HH collar screw M16X1.5X55

61310021000

Unavailable

14

HH collar screw M5x12 TX30

0025050126

Unavailable

15

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

16

EJOT PT screw K50x14

0081050141

Unavailable

17

Radial shaft seal 30X40X7

0760304073

Unavailable

18

Bucket f. shaft seal ring 03

60004034000

Unavailable

19

Inner ring JR 20X25X56.5

69004032000

Unavailable

20

INNER RING JR20X25X38,5 03

60004032000

Unavailable

21

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

22

Stop disk 03

60004033000

Unavailable

23

Locking cap swingarm

61304041100

Unavailable

24

Plug

61604041040

Unavailable

30

Swing protective foil sw.

61604030010

Unavailable

99

swingarm rep. kit

69004230010

Unavailable
