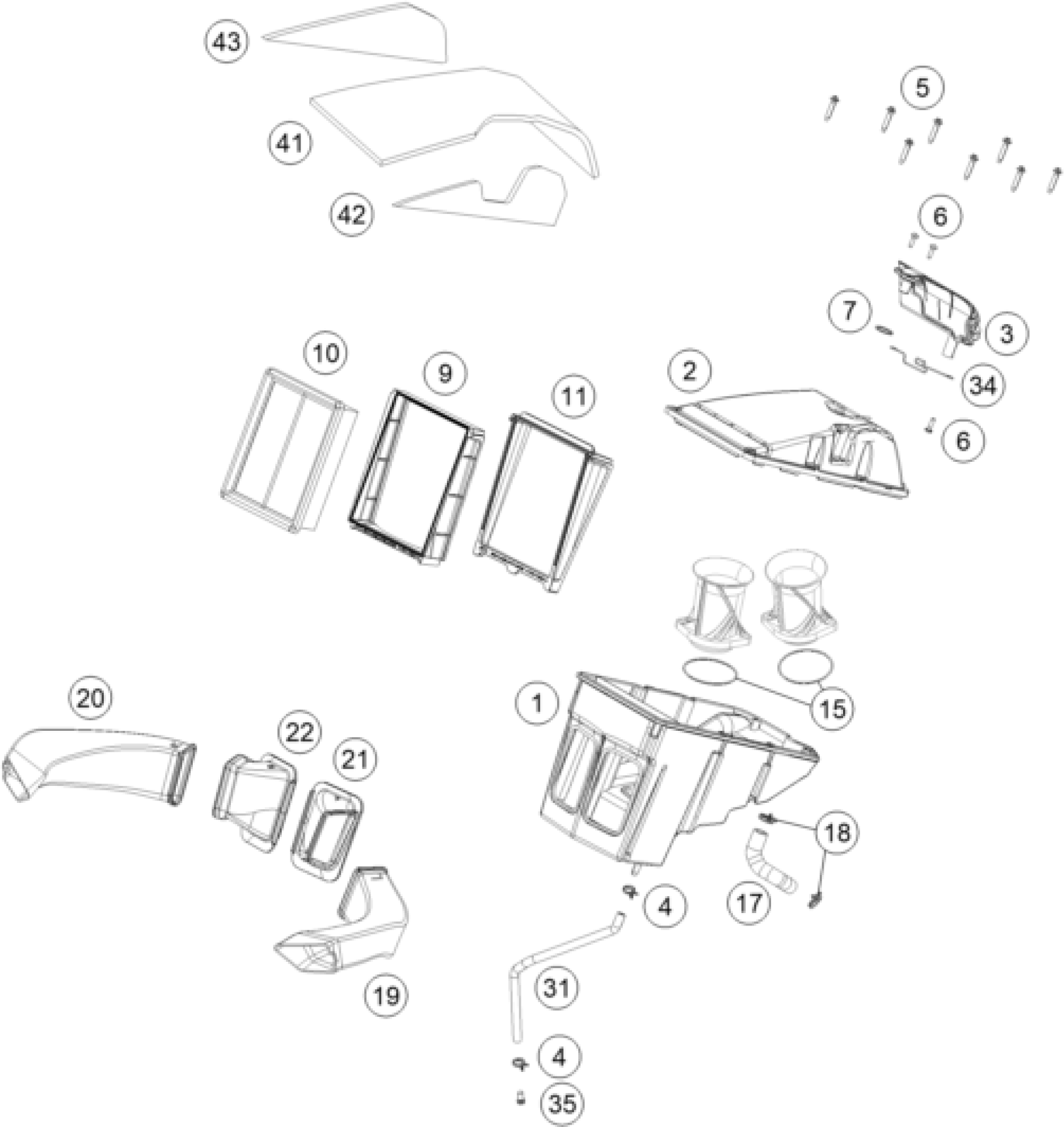

KTM 1290 Super Duke GT, black 2019 AIR FILTER Diagram

#

Description
Price

1

AIR FILTER HOUSING LOWER PART

60306001200

Unavailable

2

AIR FILTER BOX COVER

60306002000

Unavailable

3

OIL SEPARATOR

60330088100

Unavailable

4

CLAMP YDNAC 10128 12MM

58031005000

Unavailable

5

Special screw K60X30 WS=6

0017060305

Unavailable

6

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

7

O-RING 21,00X2,00 NBR70

0770021020

Unavailable

9

FILTERCLAMPING FRAME

60406016000

Unavailable

10

Air filter

60706015000

Unavailable

11

FILTERCLAMPING LINER

60406017000

Unavailable

15

O-RING 66X2,5 FKM

0770066025

Unavailable

17

OIL SEPARATOR FOAM HOSE

60330088030

Unavailable

18

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

19

Intake duct, left

61506041000

Unavailable

20

Intake duct, right

61506040000

Unavailable

21

GASKET INTAKE CHANNEL

61406040050

Unavailable

22

GASKET INTAKE CHANNEL

61406041050

Unavailable

31

HOSE NBR 7X11 PER METER

60015019001

Unavailable

34

MOUNTING BRACKET PLUG

61311099000

Unavailable

35

HH collar screw M8x12 TX40

0025080126

Unavailable

41

INSULATION MAT MIDDLE

61306095010

Unavailable

42

INSULATION MAT L/S

61306095020

Unavailable

43

INSULATION MAT R/S

61306095030

Unavailable
