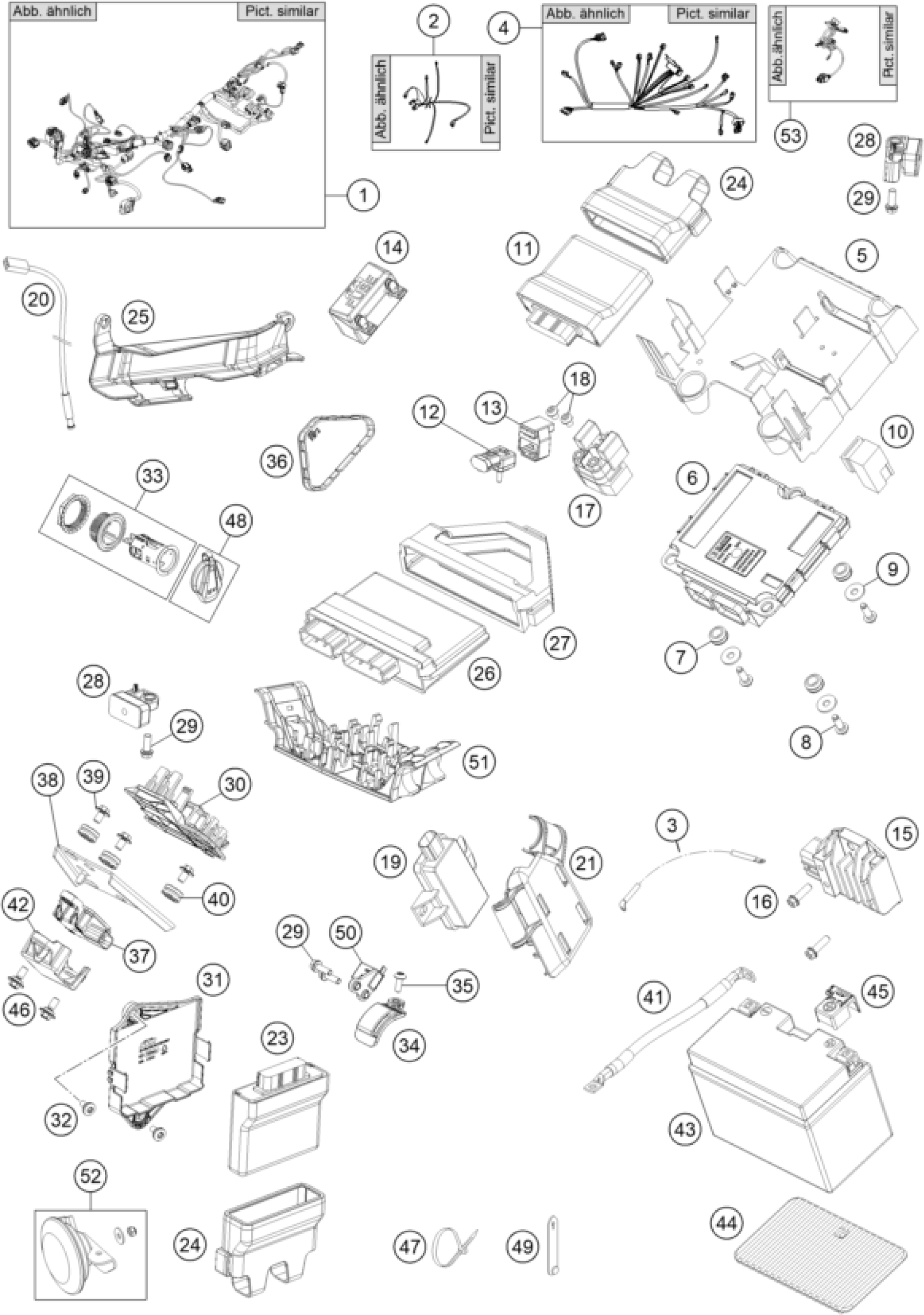

KTM 1290 Super Duke GT, black 2018 WIRING HARNESS Diagram

#

Description
Price

1

MAIN HARNESS CPL.

61411075033

Unavailable

2

engine harness

61411085100

Unavailable

3

BATTERY CABLE

61311059050

Unavailable

4

REAR WIRING HARNESS

61311076100

Unavailable

5

MCU HOLDER

61408018010

Unavailable

6

MOTORCYCLE CONTROL UNIT 2.1

60311033200

Unavailable

7

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

8

SCREW F. PLASTIC K60X20AL SW6

0017060206

Unavailable

9

Washer DIN9021-A 6.4

0021060003

Unavailable

10

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

11

ELECTRONIC CONTROL UNIT SAFE

60416031000

Unavailable

12

PRESSURE SENSOR 06

61041085100

Unavailable

13

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

14

RUBBER CASING FUSE BOX

61311087050

Unavailable

15

VOLTAGE REGULATOR

60311034000

Unavailable

16

HH collar screw M6x20 TX30

0025060206

Unavailable

17

Starter relay

76211058000

Unavailable

18

Oval head screw ISK ISO7380 M6

0738060101

Unavailable

19

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

20

Temperatur sensor

61111018100

Unavailable

21

TPMS holder

61412032040

Unavailable

23

CONTROL UNIT CURVE LIGHT

60414039000

Unavailable

24

RUBBER EDS-CONTROL UNIT

60316029000

Unavailable

25

CABLE CHANNEL R/S

60311047000

Unavailable

26

ECU EFI

61341031200

Unavailable

27

ECU RUBBER BRACKET

60341031050

Unavailable

28

ACCLERATION SENSOR

60416063000

Unavailable

29

HH collar screw M6x16 TX30

0025060166

Unavailable

30

CONNECTOR BOARD FRONT

61411083000

Unavailable

31

LCU HOLDER

61414039050

Unavailable

32

special screw M5x17

69008021060

Unavailable

33

Power socket 12V

60711042000

Unavailable

34

MAGNET HOLDER

60416061000

Unavailable

35

Oval head screw M5x14 TX25

58605083014

Unavailable

36

HEATINGSWITCH COVER

61408019040

Unavailable

37

SLOPING POSITIONS SENSOR

60342090000

Unavailable

38

SUPPORT SLOPING POS. SENSOR

61342090040

Unavailable

39

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

40

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

41

GROUND CABLE BATT.-FRAME 16MM

61411098000

Unavailable

42

COVER SENSOR BOX

61342090050

Unavailable

43

BATTERY 12V/11AH 03

60011053000

Unavailable

44

RUBBER PLATE FOR BATTERY

61311053050

Unavailable

45

COVER POSITIVE POLE

62111059060

Unavailable

46

SPECIAL SCREW M6X15X3

83008000015

Unavailable

47

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

47

Cable tie 200/4.6mm black

44011076200

Unavailable

47

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

48

Lid 12V-socket

60311042050

Unavailable

49

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

50

WHEEL TRAVEL SENSOR

60416062000

Unavailable

51

CONNECTOR BOARD REAR

61411049000

Unavailable

52

Direct current horn complete

61611060033

Unavailable

53

HARNESS FRONT

61411078000

Unavailable
