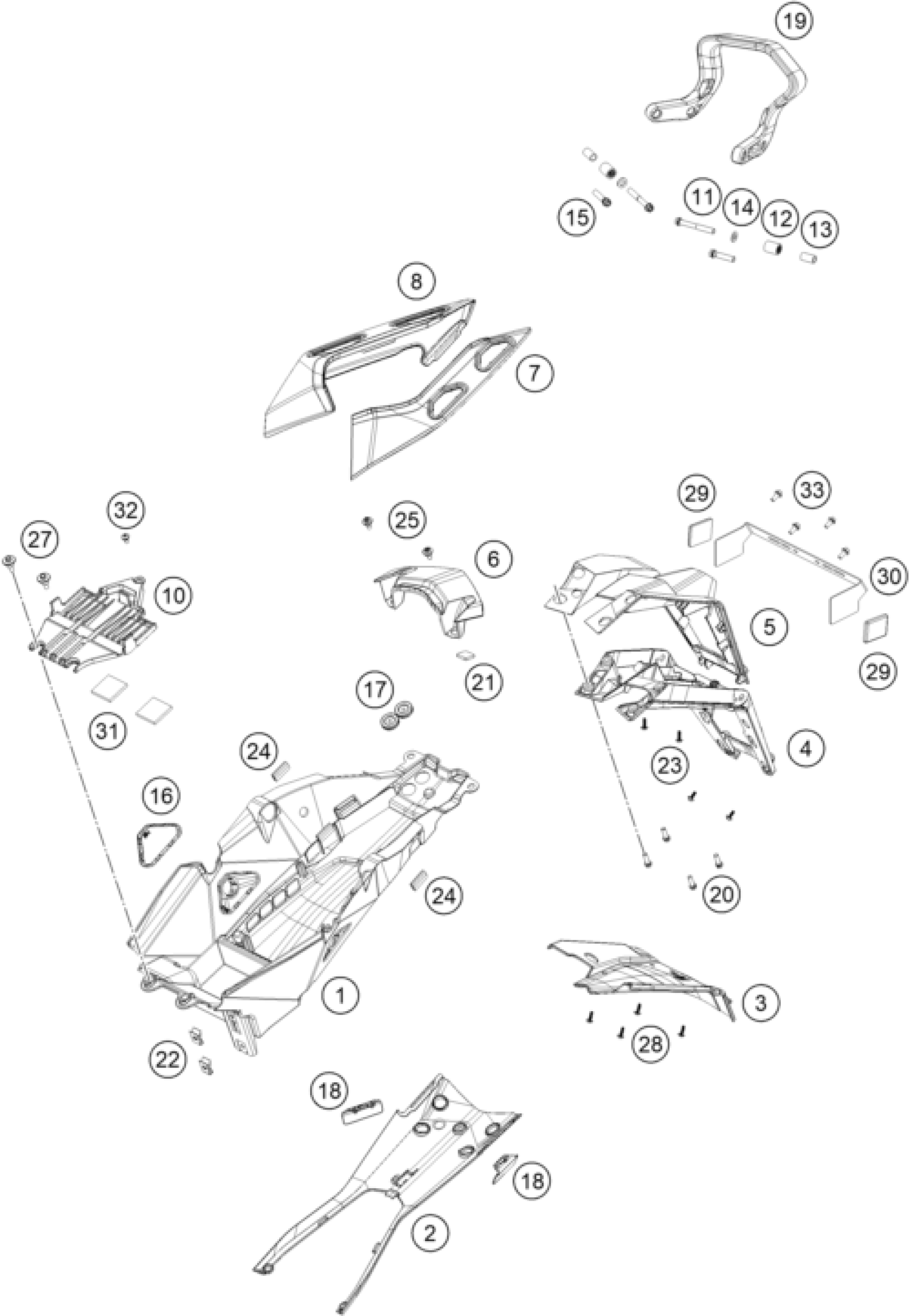

KTM 1290 Super Duke GT, black 2018 TRIM REAR Diagram

#

Description
Price

1

TAIL UNDERPART

61408019000

Unavailable

2

Bottom rear spoiler

61408019050KC

Unavailable

3

SPLASH PROTECTOR

61408023010

Unavailable

4

NPC LOWER PART

61408023000

Unavailable

5

NPC UPPER PART

61408022000

Unavailable

6

TAIL LIGHT COVER

61408015020

Unavailable

7

Rear fairing, left dark galv.

61408042000KCA

Unavailable

8

Rear fairing, right dark galv.

61408041000KCA

Unavailable

10

BATTERY HOLDER

61411054000

Unavailable

11

HH COLLAR SCREW M8x60 TX40

0025080606

Unavailable

12

RUBBER SEAT-CONTACT SURFACE

60307048000

Unavailable

13

BUSHING 8.4X12X21.5

61407049000

Unavailable

14

washer DIN 125 A -8.4

0125080003

Unavailable

15

HH collar screw M8x35 TX40

0025080356

Unavailable

16

HEATINGSWITCH COVER

61408019040

Unavailable

17

Rubber grommet, standby gas se

60006001023

Unavailable

18

PANNIER HOOK DAMPING RUBBER

61403002059

Unavailable

19

PILLION HANDLE BAR

61412008000

Unavailable

20

HH collar screw M6x20 TX30

0025060206

Unavailable

21

METAMOLL F. TAIL LIGHT COVER

61408015030

Unavailable

22

clip nut M6

54603048100

Unavailable

23

EJOT PT screw K50x12

0081050121

Unavailable

24

EDGE PROTECTOR PER METER

58312085100

Unavailable

25

Special screw M6x15x5.5

83008100015

Unavailable

27

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

28

EJOT PT screw K50x14

0081050141

Unavailable

29

SIDE REFLECTOR RED REAR

16512180100

Unavailable

30

BRACKET SIDE REFLECTOR

62512081100

Unavailable

31

BATTERY HOLDER ABSORBER

61411054050

Unavailable

32

special screw M5x12

69008021160

Unavailable

33

HH COLLAR SCREW M 5X12 WS=6

0014050123

Unavailable
