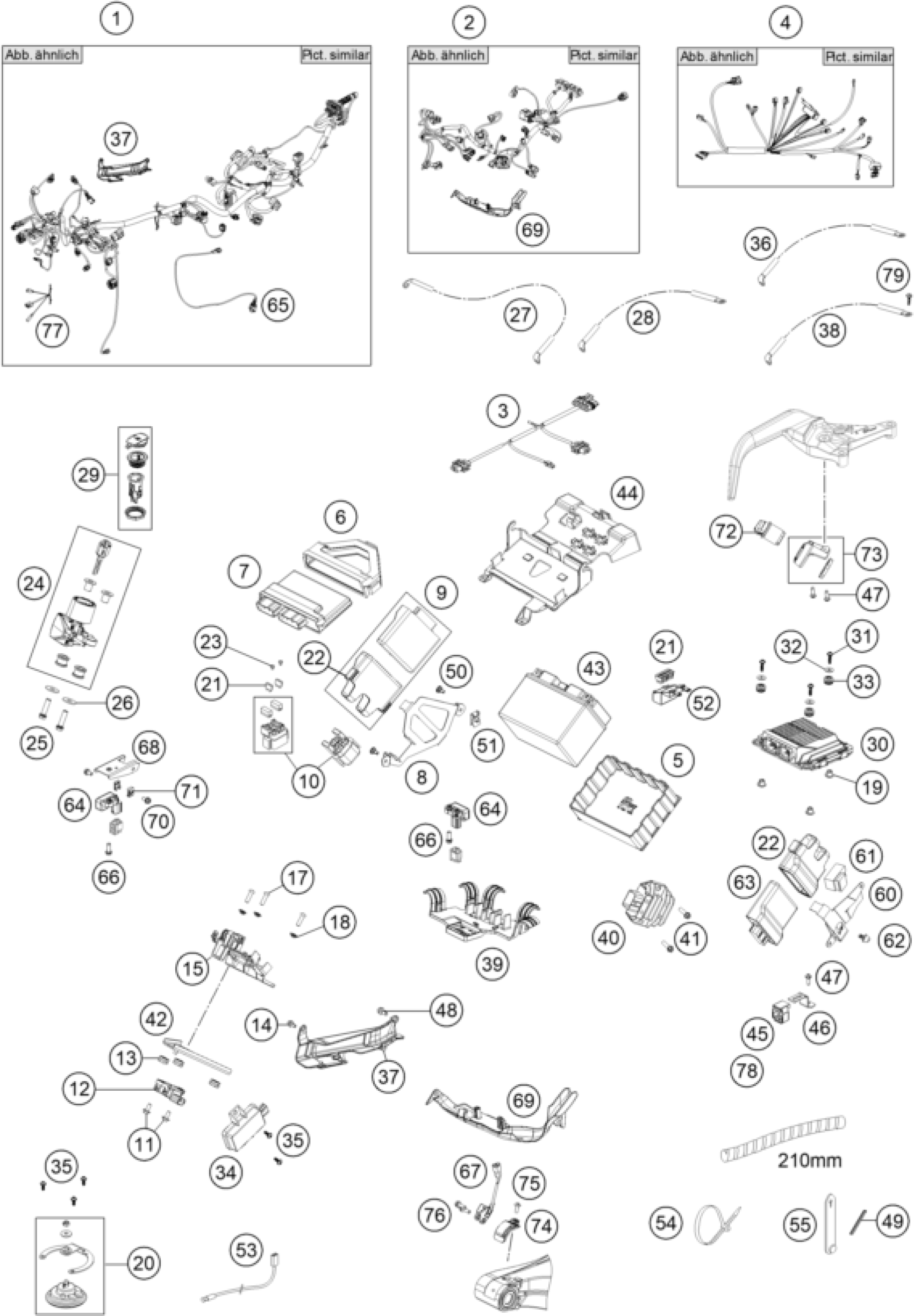

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> WIRING HARNESS Diagram

MAIN HARNESS CPL.

60411075133

$923.08

WIRING HARNESS ENGINE

60411085100

$425.14

WIRING HARNESS HEAD LIGHT

60311079000

$49.83

REAR WIRING HARNESS

60311076000

$44.12

Battery Housing

60311053050

$13.74

ECU RUBBER BRACKET

60341031050

$17.76

ECU

61341031100

$829.99

BRACKET ELECTRIC

60311057050

$41.97

ELECTRONIC CONTROL UNIT SAFE

60416031000

$522.47

Starter reley 12V 99

58211058000

$72.64

HH collar screw M6x13 TX30

0024060136

$3.08

SLOPING POSITIONS SENSOR

60342090000

$466.28

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

special screw M5x12

69008021160

$4.11

SUPPORT BRACKET FRONT

60311048100

$5.23

FLAT HEAD SCREW ISO7380 M6X20

0738060201

$1.49

COLLAR BUSHING 6,5X8,8X12,5X10

60611046000

$5.70

collar bushing 6.1x9.2x15x8.5x

69014015000

$5.23

Direct current horn complete

60711060033

$39.82

FUSE 40 A

58011109140

Unavailable

Plug-in fuse, big 30A

58011109130

Unavailable

FUSE 25 A

58011109125

Unavailable

FUSE 15 A

58011109115

Unavailable

Plug-in fuse, big 10A

58011109110

Unavailable

RUBBER EDS-CONTROL UNIT

60316029000

$33.18

Oval head screw ISO 7380 M 6X8

0902060083

$1.49

IGNITION LOCK

60311066100

$589.14

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

WASHER DIN9021-A 8,4

0021080003

$1.49

STARTER CABLE

60311059000

$29.82

GROUND CABLE

60311098000

$22.81

POWER OUTLET 12V

60311042000

Unavailable

MOTORCYCLE CONTROL UNIT 2.1

60311033200

$838.03

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

washer DIN 9021 A - 5.3

0021050003

$1.49

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

RECEIVER AIR PRESSURE SENSOR

60312032000

$169.69

EJOT PT screw K50x12

0081050121

$2.05

GROUND CABLE

60311097000

$28.04

CABLE CHANNEL R/S

60311047000

$8.13

BATTERIE CABLE

60311059050

$20.75

SUPPORT BRACKET REAR

60311049100

$5.40

VOLTAGE REGULATOR

60311034000

$177.55

HH collar screw M6x20 TX30

0025060206

$3.08

BRACKET SLOPING POSITIONS SENS

60342090040

$36.18

BATTERY 12V/11AH 03

60011053000

$366.89

BATTERIE COVER

60308017000

$19.81

RUBBER SUPP. PRESSURE SENS. 05

61041085050

$4.11

BRACKET PRESSURE SENSOR

60311040100

$11.30

EJOT PT SCREW K50X16 1451

0081050161

$1.49

COLLAR SCREW M6X12 TX

0023060123

$2.05

EDGE PROTECTOR L=45MM 05

61011055045

$3.08

special screw M5x12

69008021160

$4.11

RANGE CHANGE METAL NUT M5

54603048200

$5.23

RUBBERCOVER F.LOCKHOLDER

58411087050

$11.49

Temperatur sensor

61111018100

$31.59

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

Cable tie 200/4.6mm black

44011076200

Unavailable

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

SUPPORT CONTROLUNIT CURVELIGHT

60411099000

$38.79

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

DISTANCE RUBBER D=14X10,5

69003027060

$6.54

CONTROL UNIT CURVE LIGHT

60414039000

$393.07

ACCLERATION SENSOR

60416063000

$69.84

WIRING HARNESS MONOSHOCK SAFE

60411015000

$31.03

HH collar screw M6x16 TX30

0025060166

$3.08

WHEEL TRAVEL SENSOR

60416062000

$126.96

SUPPORT ACCLERATION SENSOR CPL

60416065000

$18.69

CABLE CHANNEL L/S

60311046000

$7.66

HH collar screw M5x10 TX30

0025050106

$1.49

clip nut M5

69008021080

$3.08

SWITCH SEAT HEATER PILLION

60411041000

$79.28

SUPPORT SWITCH SEAT HEATER

60411041050

$5.51

MAGNET HOLDER

60416061000

$52.73

Oval head screw M5x14 TX25

58605083014

$3.08

HH collar screw M5x20 TX30

0025050206

$2.05

CABLE FOR SOCKET 07

60111042060

$6.79

SPIRAL HOSE D=9MM PER METER

58513001000

$21.59

Oval head screw ISO 7380 M 6X8

0902060083

$1.49
