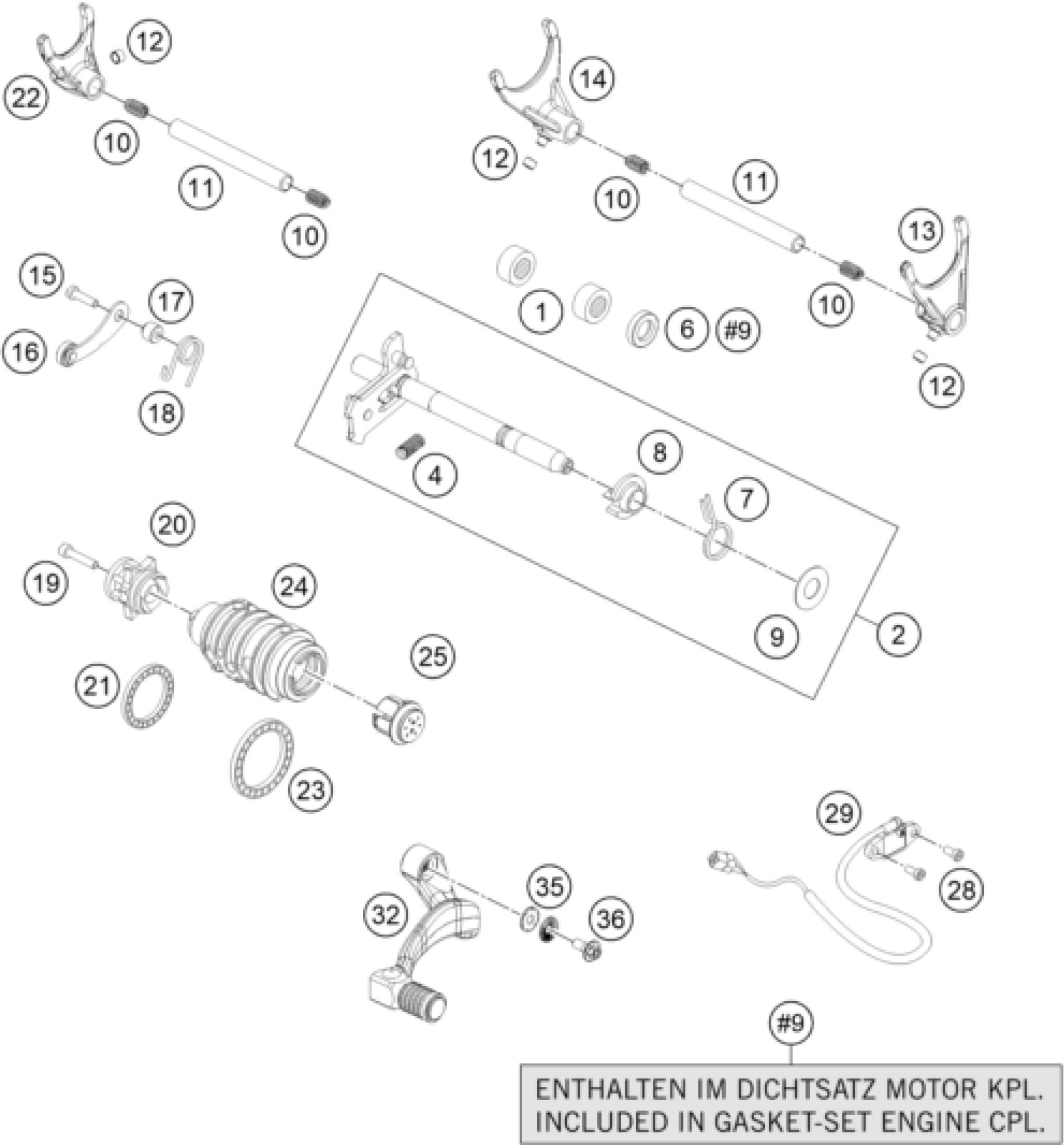

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> SHIFTING MECHANISM Diagram

#

Description
Price

10

PRESSURE SPRING 0,9MM

58038023200

Unavailable

1

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

2

SHIFT SHAFT CPL.

61234005333

Unavailable

4

TENSIONING SPRING 0,8MM

56534013100

Unavailable

6

radial shaft seal 14x24x6 B

0760142460

Unavailable

7

RETURNSPRING 2MM

61234014000

Unavailable

8

SPRING GUIDE

54634020000

Unavailable

9

STOP DISK 14X30X1

54634050000

Unavailable

11

SHIFT RAIL 11,8X105MM

59034020000

Unavailable

12

SHIFTING ROLLER 6X8X5,2

50334018100

Unavailable

13

SHIFT FORK 2-3 GEAR

61234002100

Unavailable

14

SHIFTING FORK 08

61234001000

Unavailable

15

HH collar screw M6x20 TX30

0024060206

Unavailable

16

LOCKING LEVER CPL. 07

75034024044

Unavailable

17

SLEEVE FOR LOCKING LEVER 07

75034052000

Unavailable

18

SPRING - LOCKING LEVER

61234023000

Unavailable

19

AH SCREW DIN0912-M 6X30 12.9

0912060309

Unavailable

20

SHIFT DRUM LOCATING CPL.

61234015444

Unavailable

21

BALL BEARING 61805 C3

0625618050

Unavailable

22

SHIFT FORK 5-6 GEAR

61234003200

Unavailable

23

GROOVED BALL BEARING 6808 JRC3

0625068080

Unavailable

24

SHIFTING DRUM 6G

60434012001

Unavailable

25

Magnet bracket cmpl.

79234012020

Unavailable

28

CYLIND. SCR. DIN6912 M5X12 8.8

0984050123S

Unavailable

29

GEAR POSITION SENSOR

60411023000

Unavailable

32

SHIFTING LEVER CPL.

6003403104433S

Unavailable

35

PAIR NORDLOCK WASHER M6

50233041500

Unavailable

36

HH collar screw M6x15 TX30

0024060156S

Unavailable
