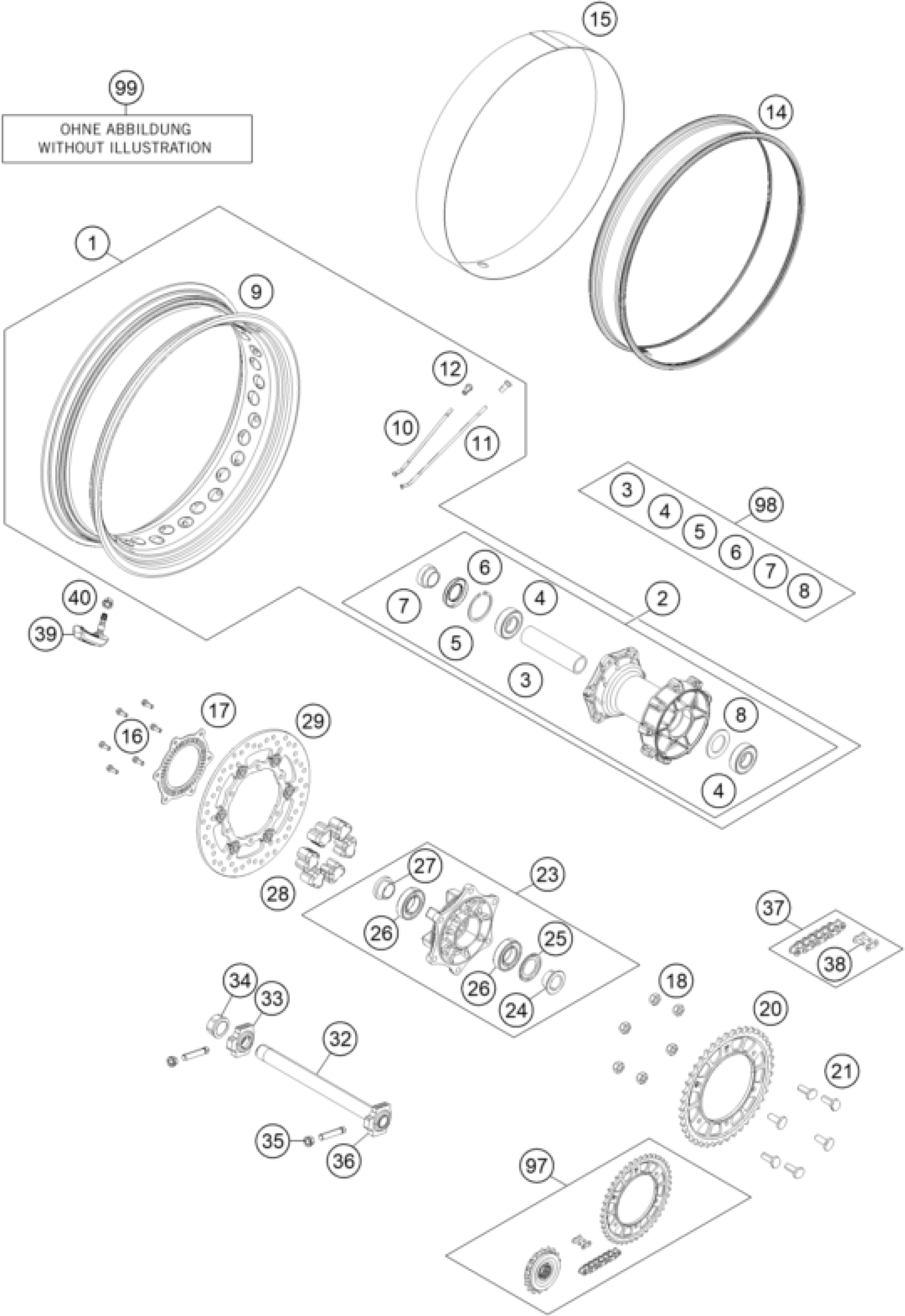

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> REAR WHEEL Diagram

REAR WHEEL CPL. 5''X17''

6041000114430A

$1,153.50

REAR HUB CPL.

60310010144KBA

$385.87

Bearing spacing tube L=124.8mm

60010011000

$20.09

Grooved ball bear. 6205-2RSHC3

0625062052

$30.85

CIRCLIP DIN0472-52X2

0472052200

$3.08

Radial shaft seal 30X52X7

0760305271

$5.23

SPACER BUSHING REAR WHEEL R/S

60310013000

$18.13

Spacer ring 03

60010015000

$10.56

RIM REAR 5,0X17'' TL

6041007010030A

$562.67

SPOKE 5/4.37/M5

60310271000

$5.23

SPOKE 5/4.37/M5

60310371000

$5.23

SPOKE NIPPLE QUADRAX M5

60310072100

$2.05

GASKET RUBBER 5''X17''

60310277100

$54.22

RIM BAND 17''

60310173200

$64.23

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

$2.05

REAR SPROCKET 42-T 03

60010051042

$82.46

Phonic wheel ABS, rear

60142021100

$21.59

Hexag. nut DIN 980V M10X1.25 S

0980101253

$2.05

SPROCKET SCREW M10X1,25 03

60010052000

$5.23

SPROCKET SUPPORT CPL. BLACK

6011005004433

$193.16

SPACER BUSH. SPROCKET SUPP. 06

60110012000

$20.09

NILOS RING 6006AV

60110016000

$9.72

BALL BEARING 6006 DDU2CG23S6NM

0625060060

$18.69

SPACER BUSH. SPR. SUPP. IN. 06

60110014000

$17.38

Rubber damping block 91

54610459000

$8.03

AXLE REAR CPL.

60310081044

$88.35

Chain tension adjuster, right,

60010084000

$22.81

Collar nut M25X1.5 WS=32 05

61010086000

$17.20

BRAKE DISK REAR

6031006000030

$254.31

HH COLLAR NUT M10X1,25 WS=13

58414030000

$2.05

screw M10x1.25x50 WS10

50304040100

$5.23

CHAIN 525 SDZZ WITH MAST. LINK

60410165118

$156.14

MASTER LINK F.CHAIN 525 SDZZ

60410066000

Unavailable

TIRE AIR PRESSURE SENSOR

60312033000

$141.74

NUT AIR PRESSURE SENSOR

60312033050

$14.11

DRIVETRAIN KIT ADV/-S 17T/42T

00050002013

Unavailable

REAR WHEEL REP. KIT ADV 13-14

60310015000

Unavailable

VALVE KIT AIR PRESSURE SENSOR

60312034044

$19.72
