LIGHTING SYSTEM

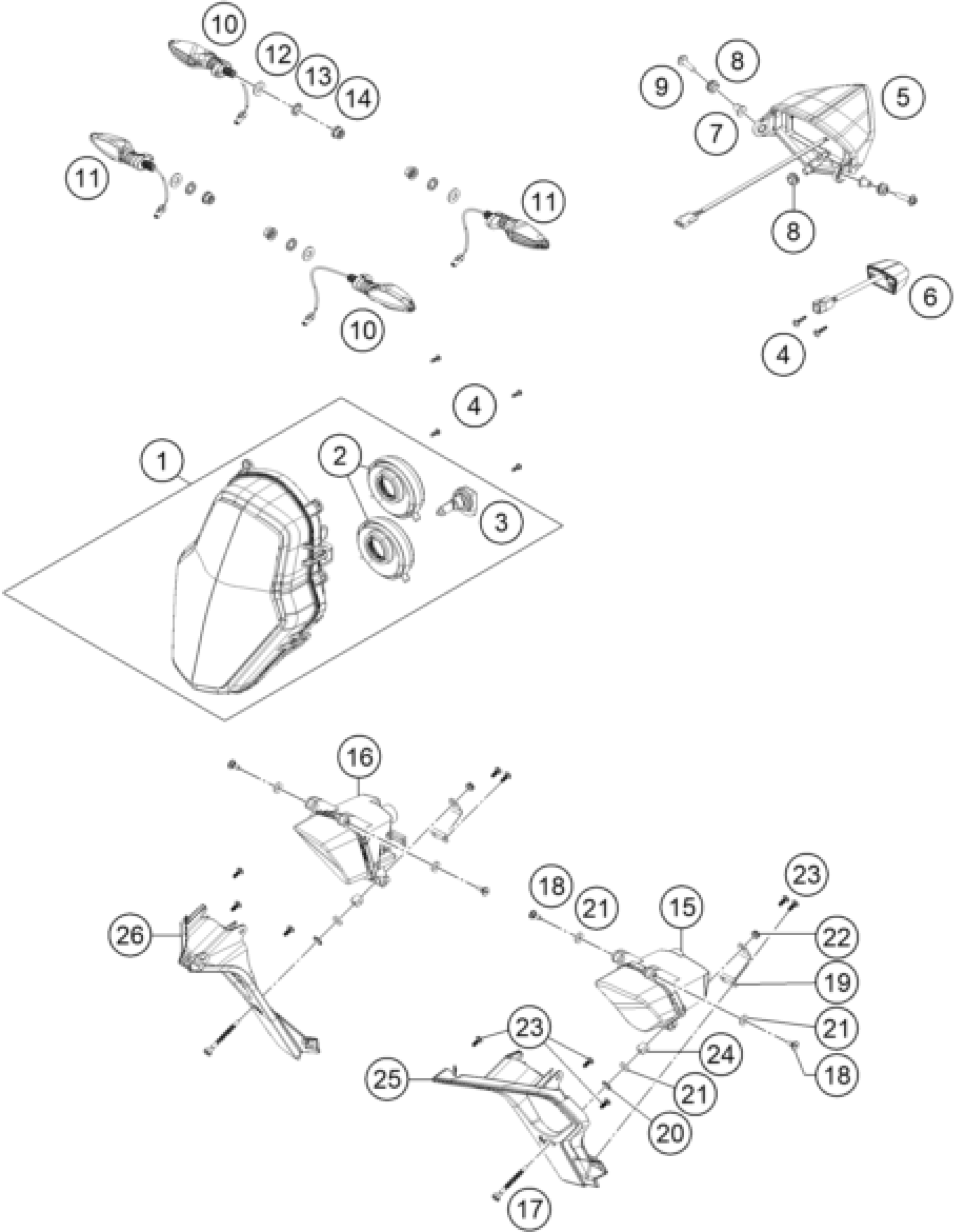

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016 LIGHTING SYSTEM Diagram
#
Description
Price
3
LAMP H11 12V 55W
60314003000
$26.45
1
HEAD LIGHT TFL
60314001100
$562.02
2
CAP H11
60314001050
$22.71
4
EJOT PT screw K50x12
0081050121
$2.05
5
REAR LIGHT
60314040000
$117.24
6
license plate lighting
60314047000
$35.62
7
COLLAR BUSHING 6,2X9,2X15X12,5
60308006000
$3.08
8
rubber grommet 9x11x16x8.5 mm
60006001022
$2.05
9
HH COLLAR SCREW M6X25 TX30
0024060256
$3.08
10
turn signal front left/rear ri
60314025000
$42.61
11
turn signal front right/rear l
60314026000
$42.61
12
Washer DIN0433-M10
0433100003
$1.49
13
LOCK WASHER DIN6797-J10,5 ZI
0797100003
$1.49
14
HH COLLAR NUT M10X1,25 WS=13
58414030000
$2.05
15
CORNERING LIGHT L/S ADV.
60414007000
$400.55
16
CORNERING LIGHT R/S ADV.
60414008000
$400.55
17
ADJUSTING SCREW CURVE LIGHT
60414007125
$4.11
18
Screw for expansion tank
69013099050
$4.11
19
STABILIZER PLATE
60408055000
$13.92
20
QUICKLOCK D=6
60408061160
$1.49
21
RUBBER 14X6.5X2.3MM
60408061050
$5.23
22
RUBBER GROMMET
60408055010
$1.49
23
SCREW FOR PLASTIC K45X12 T20
0081045121
$1.49
24
INSERT FOR HEADLIGHT ENTRY
60414007030
$2.05
25
FRONT SPOILER LEFT
60408060100
$20.75
26
FRONT SPOILER RIGHT
60408061100
$19.63
