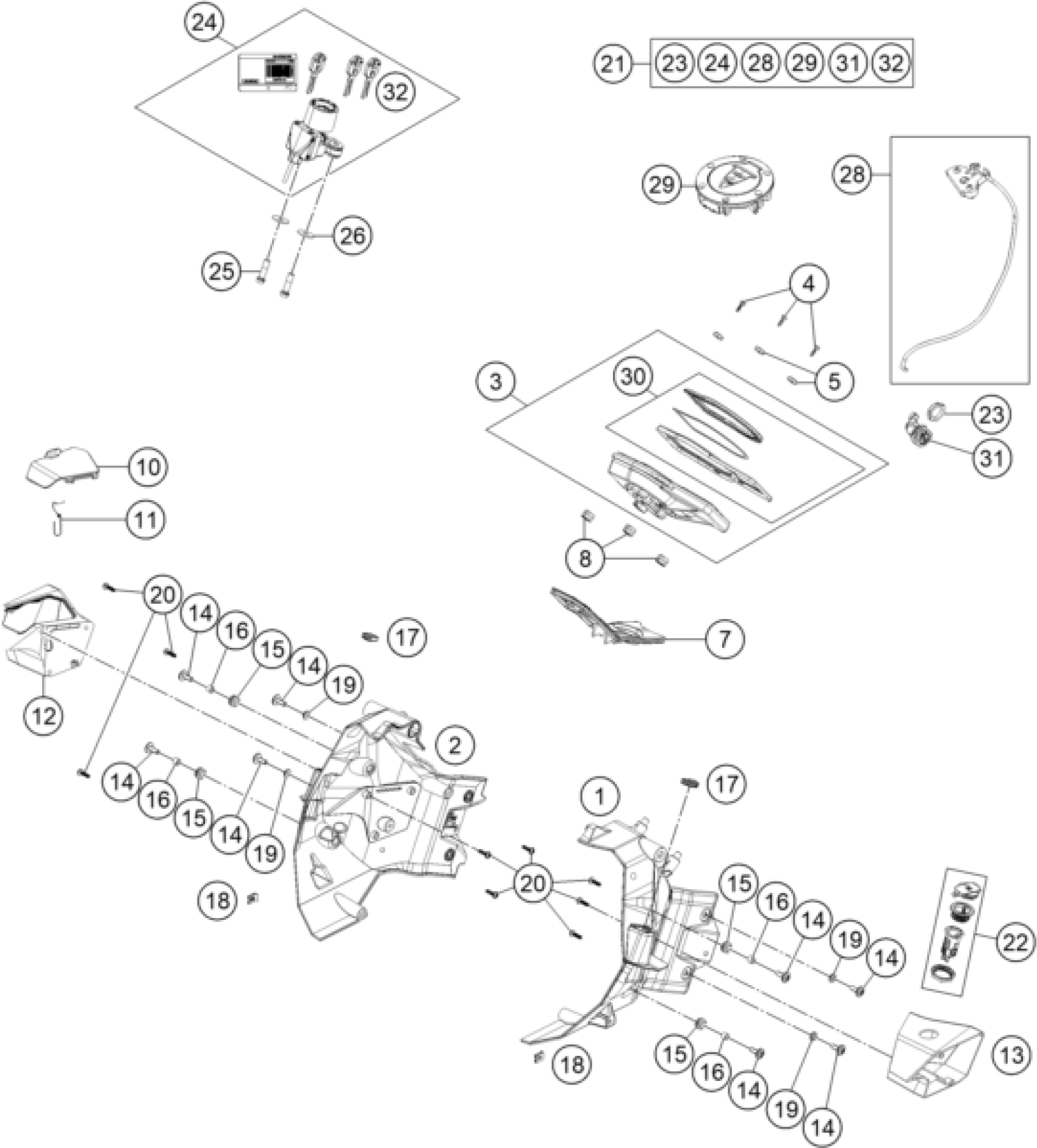

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

8

DAMP. COMPONENT SPEEDOMETER

61314069051

$5.32

10

STORAGE BOX COVER

60314079000

$5.88

11

STORAGE BOX SPRING

60314080000

$3.08

12

STORAGE BOX

60314078100

$7.10

1

COCKPIT SUPPORT L/S

60414010000

$39.64

2

COCKPIT SUPPORT R/S

60414011000

$39.64

3

SPEEDOMETER

60414069000

$851.50

4

SCREW FOR PLASTIC PT K50X14T25

0081250141

$2.05

5

SPECIAL WASHER 4.5X16

60308045000

$5.70

7

IGNITION LOCK CAP

60414012000

$12.80

13

COCKPIT COVER LEFT

60314070100

$7.10

14

special screw M6x18-8.8 ISA30

69014017000S

$2.05

15

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

16

Bushing 6.1X9.2X7.5 08

69014014000

$3.08

17

RUBBER SLEEVE

60308008057

$7.94

18

RANGE CHANGE MET. NUT M5 15460

54603048400

$3.08

19

Chain slider bushing

69004060050

$4.11

20

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

21

LOCK SYSTEM GKS CPL.

60311066344

$651.78

22

POWER OUTLET 12V

60311042000

Unavailable

23

NUT SEAT LOCK M22X1,5

69007050050

$10.74

24

IGNITION LOCK

60311066100

$589.14

25

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

26

WASHER DIN9021-A 8,4

0021080003

$1.49

28

SEAT LOCK CPL.

60307050000

$34.68

29

TANK CAP

60307008100

$458.33

30

Frame cpl. without screen

60314069050

$180.91

31

LOCK CYLINDER SEAT LOCK

60307050020

$145.76

32

KTM ignition key

60411067000

$179.98
