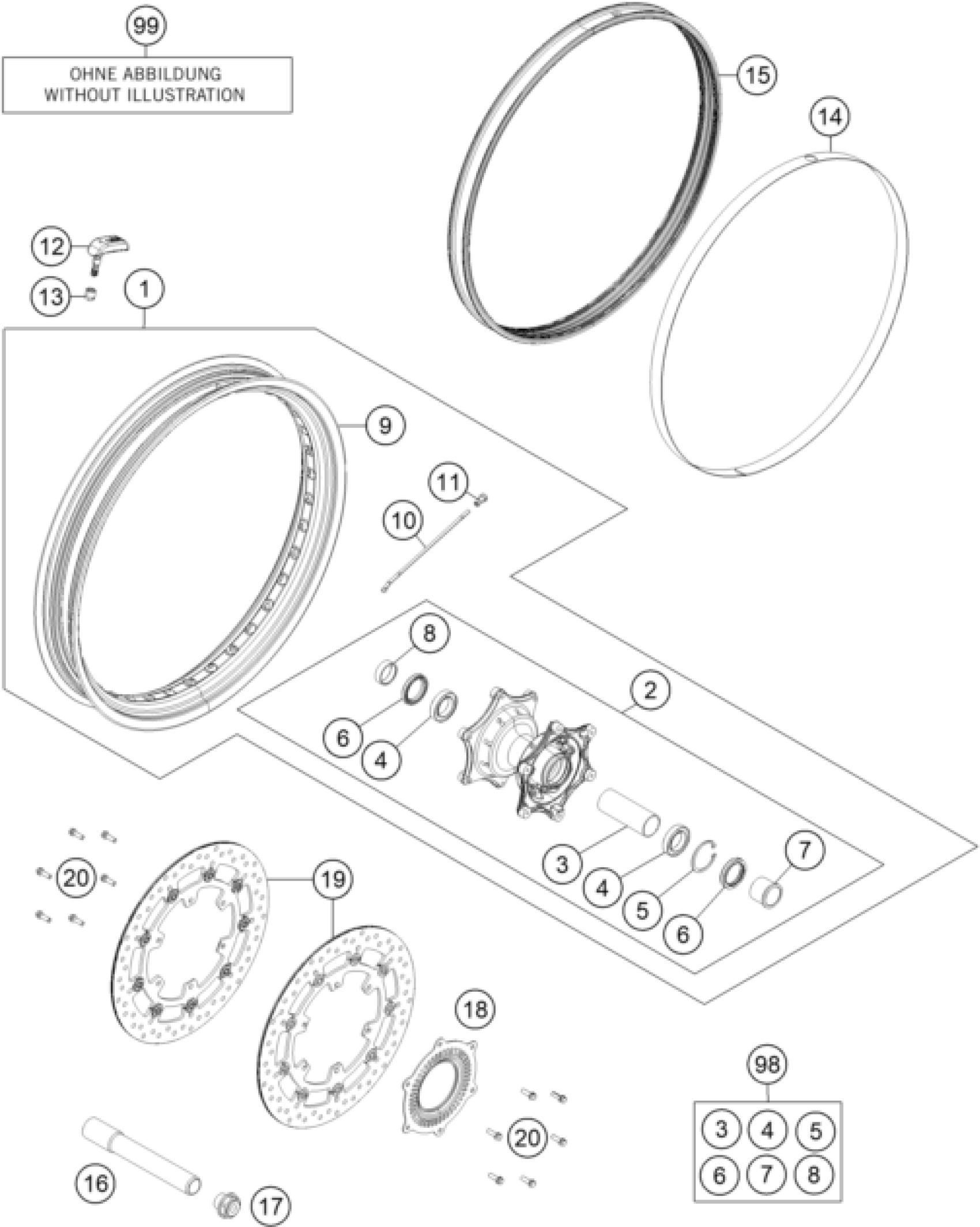

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> FRONT WHEEL Diagram

#

Description
Price

1

FRONT WHEEL CPL. 3''X19''

6040900114430A

Unavailable

2

FRONT HUB CPL.

60309010144KBA

Unavailable

4

Grooved ball bearing 6906

0625069068

Unavailable

5

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

6

Radial shaft seal 35X47X7 TC

0760354771

Unavailable

7

SPACER BUSH. FRONT WHEEL LEFT

60309012000

Unavailable

8

Spacer bush. fr. whee R/S 03

60009013000

Unavailable

10

SPOKE 5/4.37/M5

60309171000

Unavailable

11

SPOKE NIPPLE QUADRAX M5

60310072100

Unavailable

9

RIM FRONT 3,0X19'' TL

6040907010030A

Unavailable

12

TIRE AIR PRESSURE SENSOR

60312033000

Unavailable

13

NUT AIR PRESSURE SENSOR

60312033050

Unavailable

14

RIM BAND 19''

60309173100

Unavailable

15

GASKET RUBBER 3''X19''

60309277100

Unavailable

16

AXLE FRONT

60309081000

Unavailable

17

STEERING HEAD SCREW 09

6900103600001

Unavailable

18

Phonic wheel ABS

60342020000

Unavailable

19

BRAKE DISC FRONT D=320X4,5

6030906000030

Unavailable

20

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

98

FRONT WHEEL REP. KIT ADV 13-14

60309015000

Unavailable

99

VALVE KIT AIR PRESSURE SENSOR

60312034044

Unavailable

3

BUSHING SPACER TUBE FRONT

60309011000

Unavailable
