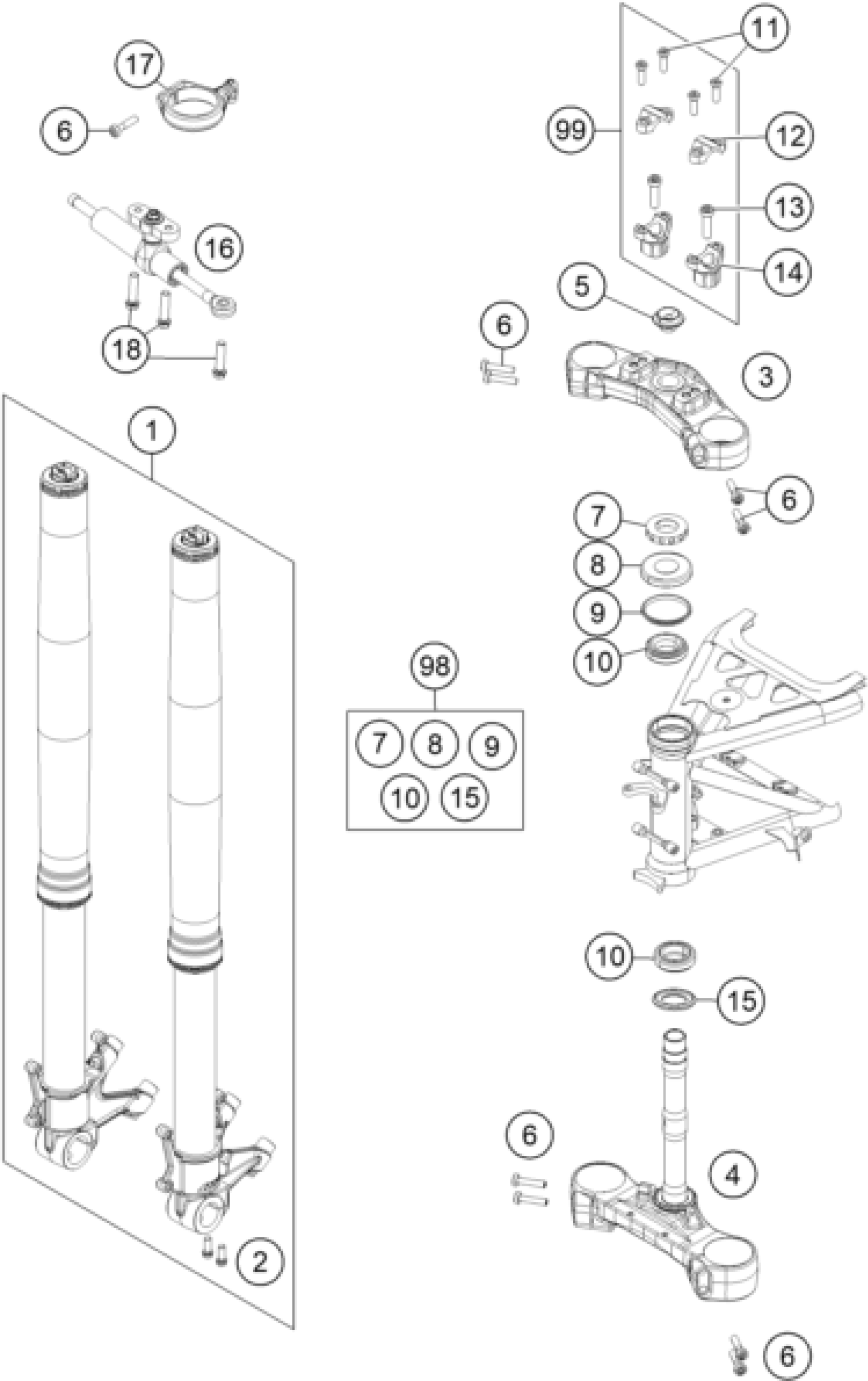

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

3

TOP TRIPLE CLAMP

6030103403233S

$165.05

7

STEER.HEAD NUT

57301036100

$21.96

9

STEARING HEAD GASKET TOP

54601184000

$7.10

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

$4.11

4

BOTTOM TRIPLE CLAMP CPL.

6030103203233S

$293.16

14

HANDLEB.SUPP. D=28MM H=37MM

5940103903730

$36.55

15

O-RING SUPPORT W. SEALING LIP

77701084000

$19.35

16

STEERING DAMPER CPL.

16181N53ES

$173.43

17

CLAMP STEERING DAMPER

6031200700033S

$56.93

18

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

98

STEARING HEAD REP. KIT ADV 13

60301081010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable

11

HH collar screw M8x25

0025080256

$2.05

12

HANDLEBAR CLAMP 28MM

7720103800030

$21.03

8

STEERING HEAD COVER 05

61001086000

$13.92

5

STEER.HEAD SCREW M22X1,5 SW27

6030103600001

$15.61

6

AH-COLLAR SCREW M8X35 ISA45

0035080356

$4.11

1

FORK SEMIACTIV ADVENTURE 2015

14181P2601

Unavailable

10

TAPERED ROLLER BEARING CPL. 06

54201081100

$51.04

2

HH collar screw M8x20 TX40 SL

0025080206S

$2.05
