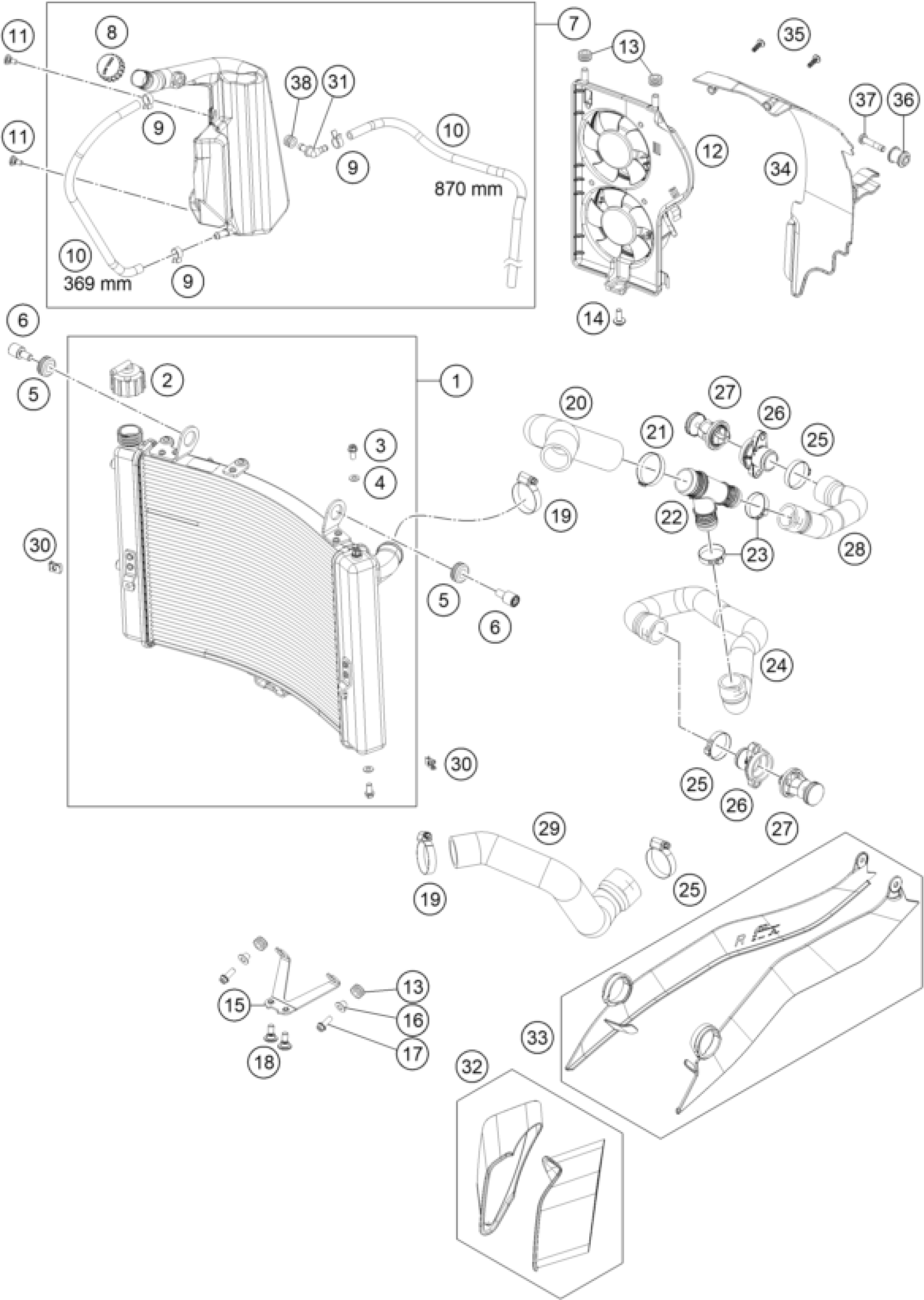

KTM 1290 SUPER ADVENTURE WH ABS 16 <2016> COOLING SYSTEM Diagram

#

Description
Price

21

VARIABLE ONE-EAR CLAMP 39,6MM

00050396706

$7.00

22

Y-JOINT

60335093000

$8.59

23

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

1

WATER COOLER

60335010100

$569.59

2

RADIATOR CAP 1,4 BAR

62535009000

$25.42

3

HH collar screw M6x12 TX30

0025060126

$3.08

4

ALU-GASKET 6X10X1.5

60035048000

$3.08

5

RUBBER SLEEVE D=12MM

41001052000

$4.11

6

STUD BOLT M6 11X11 ISA45

69035001000

$7.28

7

EXPANSION TANK

60435065000

$108.84

8

Latch, compens. tank cpl.

60335066044

$6.72

9

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

special screw M5x12

69008021160

$4.11

12

FAN COVER CPL.

60335044033

$393.63

13

rubber grommet D=8mm open

31008060000

$2.05

24

PREFORMED HOSE

60335025000

$19.63

25

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

26

WATER CONNECTION CPL.

61235019100

$22.43

15

MOUNTING PLATE COOLER BOTTOM

60335005000

$22.43

16

COLLAR BUSHING 6,1X8,1X14X8 07

75014010050

$4.11

17

HH collar screw M6x16 TX30

0025060166

$3.08

18

HH collar screw M5x10 TX30

0025050106

$1.49

14

HH collar screw M6x15 TX30

0024060156

$3.08

18

Screw for expansion tank

69013099050

$4.11

19

HOSE CLAMP 30-45 SGT

54305058000

$5.23

20

PREFORMED HOSE

60335026000

$17.10

27

THERMOSTAT 70 DEGREE

61235017000

$33.65

28

PREFORMED HOSE

60335024000

$15.42

29

PREFORMED HOSE

60335027000

$23.55

31

Angle piece, reservoir

60035068000

$3.08

32

AIR DEFLECTOR KIT TANK

60408052044

$55.16

33

AIR DEFLECTOR KIT SEAT

60308053144

$22.34

34

AIR DEFLECTOR FAN

60308056000

$11.02

35

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

36

RETAINING SLEEVE

60308056010

$15.51

37

AH collar screw M10x50 ISA45

0035100509S

$7.10

38

RUBBER GROMMET 6X9X13MM 04

60035069000

$4.11

30

RANGE CHANGE METAL NUT M5

54603048200

$5.23
