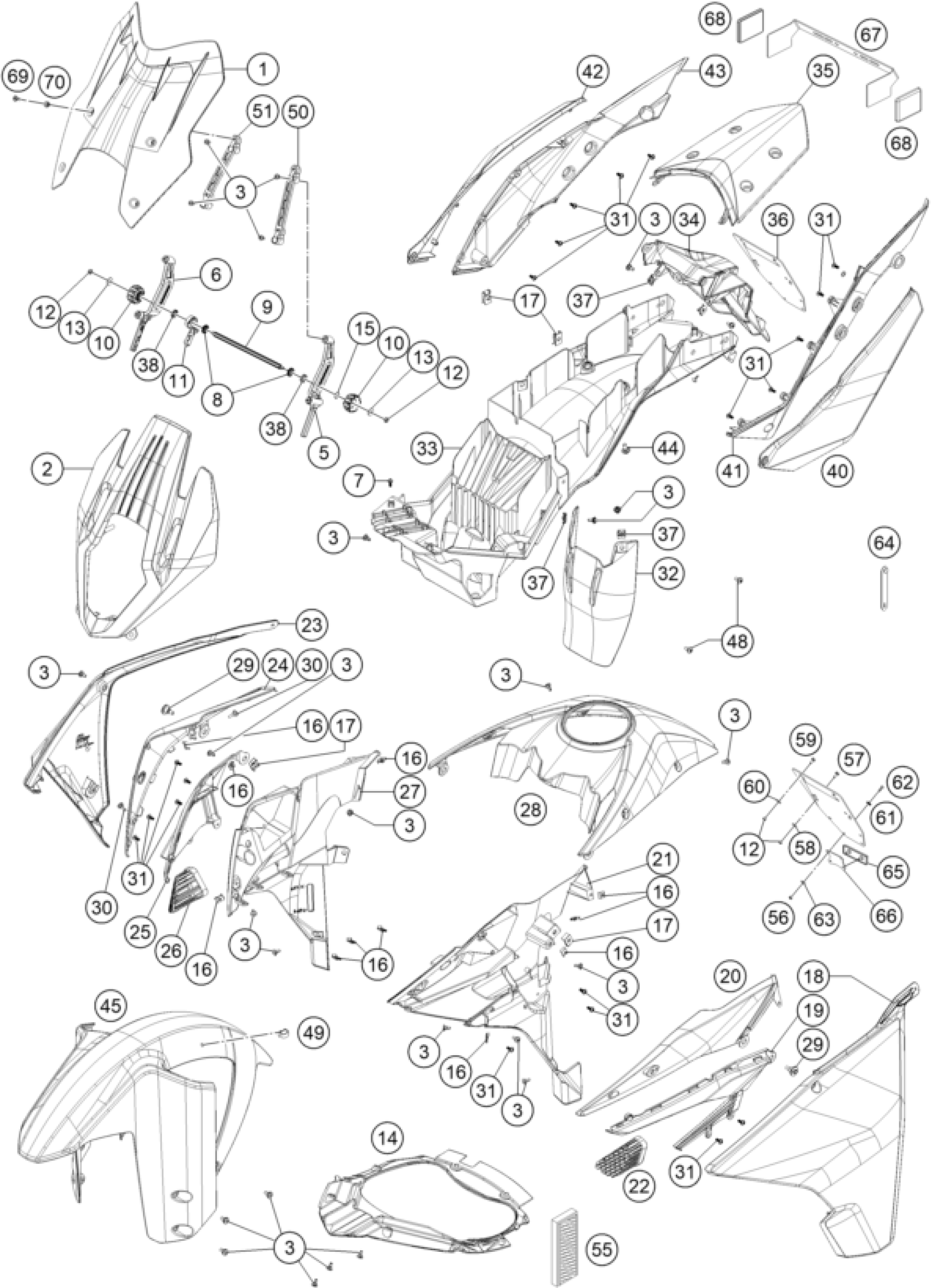

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> MASK, FENDERS Diagram

#

Description
Price

1

WIND SHIELD USA

60408108000

Unavailable

2

HEADLIGHT MASK

60408001000

Unavailable

3

special screw M5x12

69008021160

Unavailable

5

WINDSHIELD BRACKET L/S

60408008050

Unavailable

6

WINDSHIELD BRACKET R/S

60408008051

Unavailable

7

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

8

GEAR 16TH ADJUSTMENT

60408008155

Unavailable

9

CONNECTIN SHAFT M6

60408008054

Unavailable

10

ADJUSTING WHEEL

60408008053

Unavailable

11

CLAMP LEVER RIGHT

60408008052

Unavailable

12

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

13

Washer DIN9021-A 6.4

0021060003

Unavailable

14

COCKPIT COVER LOWER SIDE

60308005000

Unavailable

15

WAVO SPRING YRW-0062

60408008063

Unavailable

16

clip nut M5

69008021080

Unavailable

17

clip nut M6

54603048100

Unavailable

18

SPOILER L/S

60408050000AAA

Unavailable

19

AIR INTAKE LEFT

60308002050KBA

Unavailable

56

Self locking nut DIN 985 M5

0985050003

Unavailable

59

HH collar screw M6x20 TX30

0024060206

Unavailable

60

WASHER DIN0125-A 6,4

0125060003

Unavailable

61

WASHER 6MM

40006006000

Unavailable

62

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

Unavailable

63

WASHER DIN0125-A 5,3

0125050003

Unavailable

65

REFLECTOR RED

58412080000

Unavailable

66

BRACKET FOR REFLECTOR

58412080050

Unavailable

67

BRACKET SIDE REFLECTOR

62512081100

Unavailable

68

SIDE REFLECTOR RED REAR

16512180100

Unavailable

20

MASK ARM LEFT

60308002000BGA

Unavailable

21

INNER LINING LEFT

60308025100

Unavailable

22

COVERING GRID AIR INTAKE L/S

60308021050

Unavailable

23

SPOILER R/S

60408051000AAA

Unavailable

24

MASK ARM RIGHT

60308003000BGA

Unavailable

25

AIR INLET RIGHT

60308003050KBA

Unavailable

26

COVERING GRID AIR INTAKE RIGHT

60308031050

Unavailable

27

INNER LINING RIGHT

60308026100

Unavailable

28

TANK COVER

60308030000AAA

Unavailable

29

SPECIAL SCREW M6X21 WS=8

60035001000

Unavailable

30

special screw M5x17

69008021060

Unavailable

31

EJOT PT screw K50x12

0081050121

Unavailable

32

SPLASH PROTECTION

60304050000

Unavailable

33

TAIL END LOWER PART

60308019000

Unavailable

34

NUMBER PLATE SUPPORT

60308015000

Unavailable

36

license plate mouning plate

60012081200

Unavailable

35

TAIL FENDER BLACK

6030801310033

Unavailable

37

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

38

WINDSHIELD HOLDER RUBBER

60408008057

Unavailable

40

TAIL SPOILER L/S PEARL W.

60308041000AAA

Unavailable

41

REAR SIDE COVER LEFT

6030804300033

Unavailable

42

TAIL SPOILER R/S PEARL W.

60308042000AAA

Unavailable

43

REAR SIDE COVER RIGHT

6030804400033

Unavailable

44

SPECIAL SCREW M6X15X3

83008000015

Unavailable

45

FRONT FENDER

60308110000AAA

Unavailable

48

HH collar screw M6x12 TX30

0025060126

Unavailable

49

CABLE SUPPORT KHS NR.150-47610

58111076000

Unavailable

50

WINDSHIELD ADAPTER L/S

60408008060

Unavailable

51

WINDSHIELD ADAPTER R/S

60408008061

Unavailable

55

SIDE REFLECTOR YELLOW 03

60012080000

Unavailable

57

HH collar screw M6x15 TX30

0024060156

Unavailable

58

Washer DIN9021-A 6.4

0021060003

Unavailable

64

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

69

Special screw M5x14

60708008071

Unavailable

70

rubber bush windshield fixatio

60708008070

Unavailable
