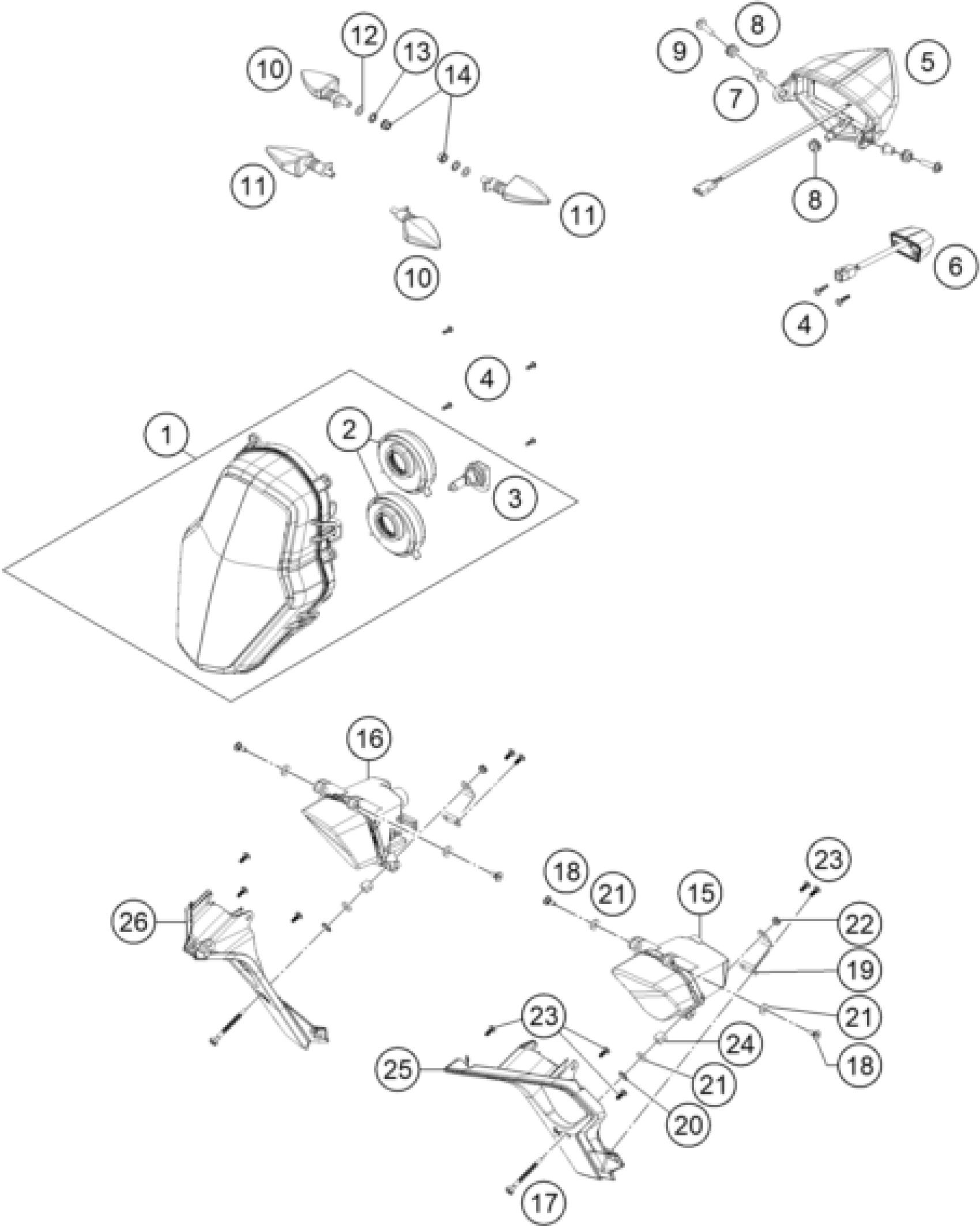

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> LIGHTING SYSTEM Diagram

#

Description
Price

1

HEAD LIGHT TFL

60314001100

Unavailable

2

CAP H11

60314001050

Unavailable

3

LAMP H11 12V 55W

60314003000

Unavailable

4

EJOT PT screw K50x12

0081050121

Unavailable

5

Rear light

60314040200

Unavailable

6

license plate lighting

60314047000

Unavailable

7

COLLAR BUSHING 6,2X9,2X15X12,5

60308006000

Unavailable

8

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

9

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

10

FLASHER CPL.FRONT L/S REAR R/S

78114025000

Unavailable

11

FLASHER CPL.FRONT R/S REAR L/S

78114026000

Unavailable

12

Washer DIN0433-M10

0433100003

Unavailable

13

LOCK WASHER DIN6797-J10,5 ZI

0797100003

Unavailable

14

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

15

CORNERING LIGHT L/S ADV.

60414007000

Unavailable

16

CORNERING LIGHT R/S ADV.

60414008000

Unavailable

17

ADJUSTING SCREW CURVE LIGHT

60414007125

Unavailable

18

Screw for expansion tank

69013099050

Unavailable

19

STABILIZER PLATE

60408055000

Unavailable

20

QUICKLOCK D=6

60408061160

Unavailable

21

RUBBER 14X6.5X2.3MM

60408061050

Unavailable

22

RUBBER GROMMET

60408055010

Unavailable

23

SCREW FOR PLASTIC K45X12 T20

0081045121

Unavailable

24

INSERT FOR HEADLIGHT ENTRY

60414007030

Unavailable

25

FRONT SPOILER LEFT

60408060100

Unavailable

26

FRONT SPOILER RIGHT

60408061100

Unavailable
