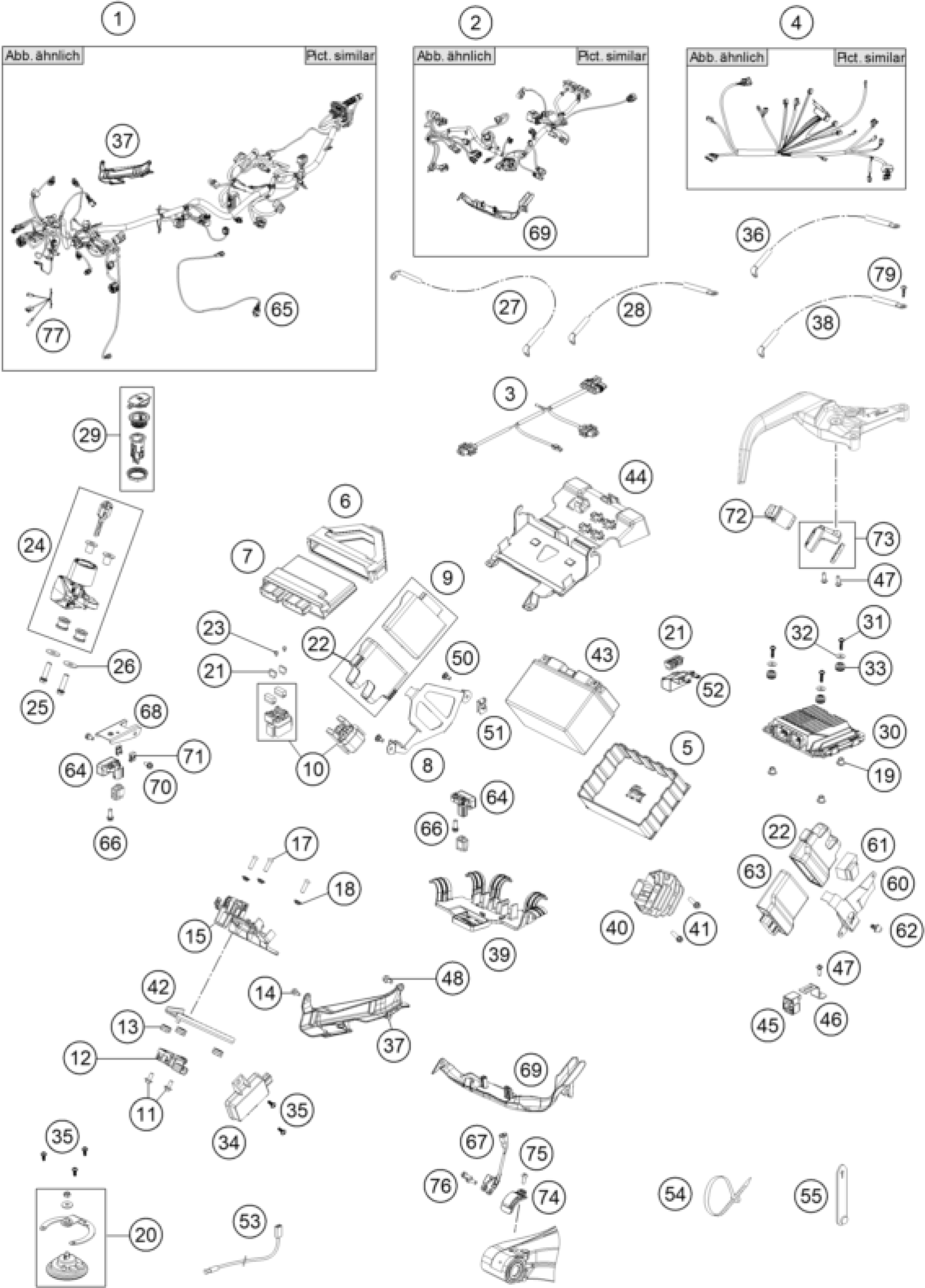

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> WIRING HARNESS Diagram

#

Description
Price

74

MAGNET HOLDER

60416061000

Unavailable

75

Oval head screw M5x14 TX25

58605083014

Unavailable

2

WIRING HARNESS ENGINE

60411085000

Unavailable

3

WIRING HARNESS HEAD LIGHT

60311079000

Unavailable

4

REAR WIRING HARNESS

60311076000

Unavailable

1

MAIN HARNESS CPL.

60411075133

Unavailable

5

Battery Housing

60311053050

Unavailable

6

ECU RUBBER BRACKET

60341031050

Unavailable

7

ECU

61341031100

Unavailable

8

BRACKET ELECTRIC

60311057050

Unavailable

9

ELECTRONIC CONTROL UNIT SAFE

60416031000

Unavailable

10

Starter reley 12V 99

58211058000

Unavailable

11

HH collar screw M6x13 TX30

0024060136

Unavailable

12

SLOPING POSITIONS SENSOR

60342090000

Unavailable

13

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

14

special screw M5x12

69008021160

Unavailable

15

SUPPORT BRACKET FRONT

60311048100

Unavailable

17

FLAT HEAD SCREW ISO7380 M6X20

0738060201

Unavailable

18

COLLAR BUSHING 6,5X8,8X12,5X10

60611046000

Unavailable

19

collar bushing 6.1x9.2x15x8.5x

69014015000

Unavailable

20

HORN

60311060100

Unavailable

21

FUSE 40 A

58011109140

Unavailable

21

Plug-in fuse, big 30A

58011109130

Unavailable

21

FUSE 25 A

58011109125

Unavailable

21

FUSE 15 A

58011109115

Unavailable

21

Plug-in fuse, big 10A

58011109110

Unavailable

77

CABLE FOR SOCKET 07

60111042060

Unavailable

76

HH collar screw M5x20 TX30

0025050206

Unavailable

61

RELAY CM1A-R-12V-H80 07

61111057000

Unavailable

63

CONTROL UNIT CURVE LIGHT

60414039000

Unavailable

64

ACCLERATION SENSOR

60416063000

Unavailable

66

HH collar screw M6x16 TX30

0025060166

Unavailable

62

DISTANCE RUBBER D=14X10,5

69003027060

Unavailable

67

WHEEL TRAVEL SENSOR

60416062000

Unavailable

68

SUPPORT ACCLERATION SENSOR CPL

60416065000

Unavailable

69

CABLE CHANNEL L/S

60311046000

Unavailable

70

HH collar screw M5x10 TX30

0025050106

Unavailable

71

clip nut M5

69008021080

Unavailable

72

SWITCH SEAT HEATER PILLION

60411041000

Unavailable

73

SUPPORT SWITCH SEAT HEATER

60411041050

Unavailable

22

RUBBER EDS-CONTROL UNIT

60316029000

Unavailable

23

Oval head screw ISO 7380 M 6X8

0902060083

Unavailable

24

IGNITION LOCK

60311066000

Unavailable

25

HH COLLAR SCREW M8X30 TX40

0025080306S

Unavailable

26

WASHER DIN9021-A 8,4

0021080003

Unavailable

27

STARTER CABLE

60311059000

Unavailable

28

GROUND CABLE

60311098000

Unavailable

29

POWER OUTLET 12V

60311042000

Unavailable

30

MOTORCYCLE CONTROL UNIT 2.1

60311033200

Unavailable

31

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

32

washer DIN 9021 A - 5.3

0021050003

Unavailable

33

rubber grommet 9x11x16x8.5 mm

60006001022

Unavailable

34

RECEIVER AIR PRESSURE SENSOR

60312032000

Unavailable

35

EJOT PT screw K50x12

0081050121

Unavailable

36

GROUND CABLE

60311097000

Unavailable

37

CABLE CHANNEL R/S

60311047000

Unavailable

38

BATTERIE CABLE

60311059050

Unavailable

39

SUPPORT BRACKET REAR

60311049100

Unavailable

40

VOLTAGE REGULATOR

60311034000

Unavailable

41

HH collar screw M6x20 TX30

0025060206

Unavailable

42

BRACKET SLOPING POSITIONS SENS

60342090040

Unavailable

43

BATTERY 12V/11AH 03

60011053000

Unavailable

44

BATTERIE COVER

60308017000

Unavailable

45

RUBBER SUPP. PRESSURE SENS. 05

61041085050

Unavailable

46

BRACKET PRESSURE SENSOR

60311040100

Unavailable

47

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

48

COLLAR SCREW M6X12 TX

0023060123

Unavailable

49

EDGE PROTECTOR L=45MM 05

61011055045

Unavailable

50

special screw M5x12

69008021160

Unavailable

51

RANGE CHANGE METAL NUT M5

54603048200

Unavailable

52

RUBBERCOVER F.LOCKHOLDER

58411087050

Unavailable

53

TEMPERATURE SENSOR 07

61111018000

Unavailable

54

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

54

Cable tie 200/4.6mm black

44011076200

Unavailable

54

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

55

RUBBER CABLE TIE 45MM 03

60011093045

Unavailable

55

RUBBER CABLE TIE 60MM 03

60011093060

Unavailable

55

RUBBER CABLE TIE 75MM 03

60011093075

Unavailable

60

SUPPORT CONTROLUNIT CURVELIGHT

60411099000

Unavailable

65

WIRING HARNESS MONOSHOCK SAFE

60411015000

Unavailable
