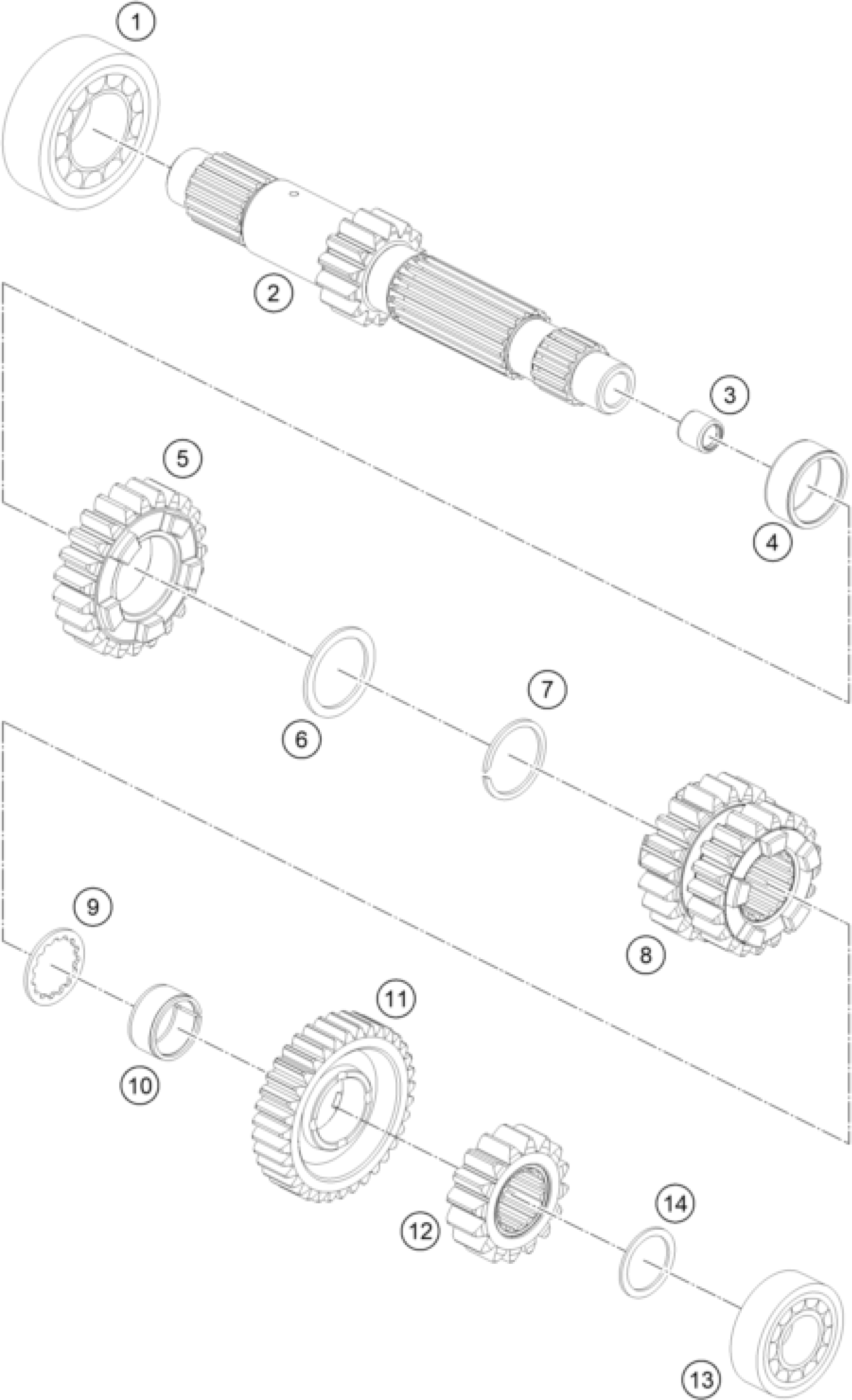

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> TRANSMISSION I - MAIN SHAFT Diagram

#

Description
Price

1

BALL BEARING 6206 C3 J1 NSK

0625062062

$19.63

2

MAIN SHAFT 12T

60333001000

$342.20

3

NEEDLE BUSH HK0912 9/13/12 03

0618091312

$11.12

4

NEEDLE BEAR. K 26-31-13

0405263113

$8.59

5

IDLER GEAR 5. GEAR

60333005000

$149.59

6

STOP DISK 27,9/35,75/1,5

61233042000

$5.60

7

LOCK RING SW 27

0417270150

$2.05

8

SLIDING GEAR 3./4. GEAR

60333003000

$207.09

9

STOP DISK 22,2/30,2/1,5

61233041000

$5.23

10

NEEDLE BEAR. K 22X26X13 TN

0405222613

$9.15

11

IDLE GEAR 6. GEAR

60433006000

$75.10

12

SOLID GEAR 2ND GEAR

60333002000

$110.32

13

BALL BEARING 6204 DU J1 C3

0625062040

$28.98

14

STOP DISK 20,2X28X1,5

60033040015

Unavailable

14

STOP DISK 20,2/28/1,6

60033040016

Unavailable

14

STOP DISK 20,2/28/1,7

60033040017

Unavailable

14

STOP DISK 20,2/28/1,8

60033040018

Unavailable

14

STOP DISK 20,2/28/1,9

60033040019

Unavailable

14

STOP DISK 20,2/28/2,0

60033040020

Unavailable

14

STOP DISK 20,2/28/2,1

60033040021

Unavailable

14

STOP DISK 20,2/28/2,2

60033040022

Unavailable
