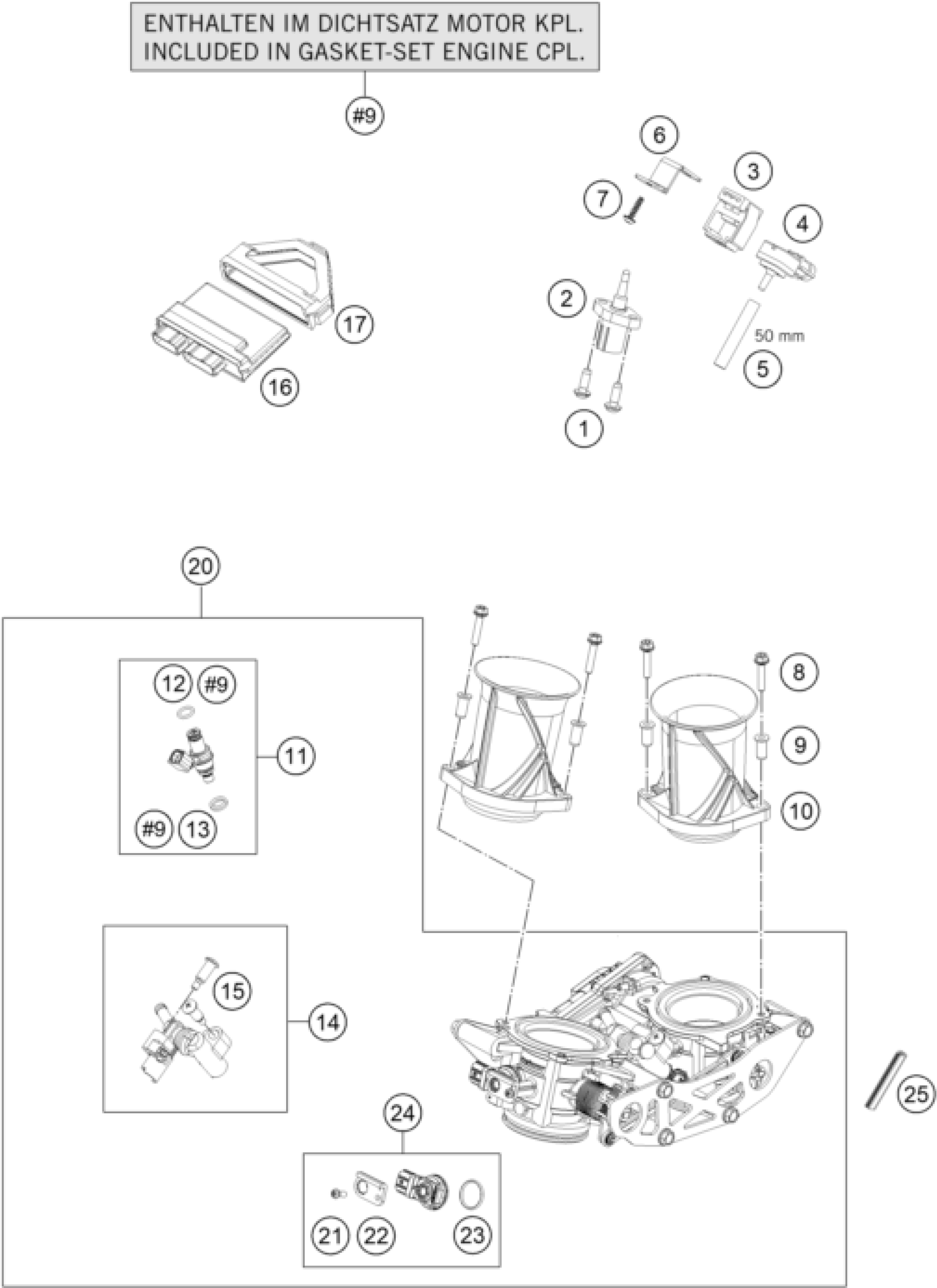

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> THROTTLE BODY Diagram

#

Description
Price

15

SCREW SHOULDER

75041013060

Unavailable

16

ECU

61341031100

Unavailable

17

ECU RUBBER BRACKET

60341031050

Unavailable

20

THROTTLE BODY

60341001000

Unavailable

1

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

2

AMBIENT-AIR TEMPERATURE SENSOR

61041080000

Unavailable

3

RUBBER SUPP. PRESSURE SENS. 06

61041085150

Unavailable

4

PRESSURE SENSOR 06

61041085100

Unavailable

5

HOSE 3,2X8,5 PER METER

60031098001

Unavailable

6

BRACKET PRESSURE SENSOR

60311040100

Unavailable

7

SCREW FOR PLASTIC K50X18 T20

0081050181

Unavailable

8

HH collar screw M5x25 TX30

0025050256S

Unavailable

9

Bushing intake funnel

60306042010

Unavailable

10

INTAKE TRUMPET LENGTH 100

60341040100

Unavailable

11

FUEL INJECTOR CPL.

60341023044

Unavailable

12

O-RING

60341023020

Unavailable

13

SEAL RING

75041023010

Unavailable

14

FUEL PIPE CPL.

60341013044

Unavailable

21

SCREW WASHER

75041085030

Unavailable

22

PLATE, STAY

75041085020

Unavailable

23

O-RING

75041085010

Unavailable

24

MAP SENSOR CPL. 07

75041085044

Unavailable

25

EDGE PROTECTOR L=45MM 05

61011055045

Unavailable
