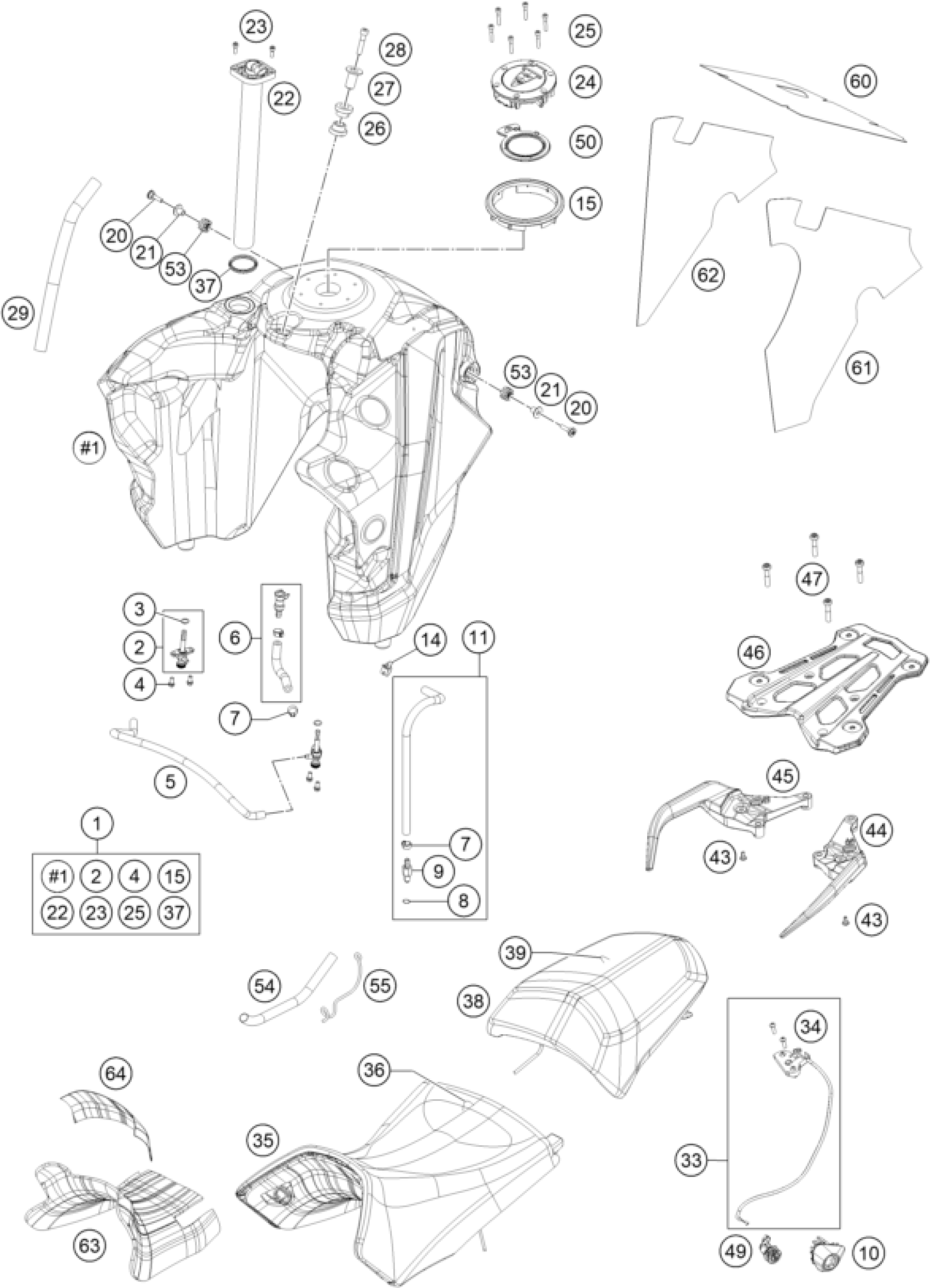

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015> TANK, SEAT Diagram

#

Description
Price

8

O-ring VITON f. plug CPC 0

58507012000

Unavailable

14

CLAMP STD DN14

00049140121

Unavailable

33

SEAT LOCK CPL.

60307050000

Unavailable

34

FLAT HEAD SCREW ISO7380 M6X20

0738060201

Unavailable

35

DRIVER SEAT HEATED

60407040000

Unavailable

1

FUEL TANK CPL.

60407013044BGA

Unavailable

2

Fuel cock cmpl.

58507003200

Unavailable

3

O-RING 1,78x10,82x14,38 2-013

0770020130

Unavailable

4

HH collar screw M6x12 TX30

0025060126

Unavailable

5

EXPANSION HOSE FUEL TANK

60307018000

Unavailable

6

FUEL HOSE TANK/CONNECTOR

60307017000

Unavailable

7

Variable one-ear clamp 15.7mm

00050157706

Unavailable

9

Plug CPC black 05

5850701030030

Unavailable

10

SEAT LOCK COVER

60307053000

Unavailable

11

FUEL HOSE 1 CPL.

60307016000

Unavailable

15

TANK CAP RING

60307009000

Unavailable

20

SPECIAL SCREW M6X32.5 ISA 40

60307025000

Unavailable

21

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

Unavailable

22

GAS LEVEL SENSOR

60307080000

Unavailable

23

AH collar screw DIN 912 M5x16

0912050163

Unavailable

24

TANK CAP

60307008100

Unavailable

25

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

26

collar bushing, front tank hol

61007065000

Unavailable

27

collar bushing, bearing, outsi

61007060000

Unavailable

28

AH collar screw DIN0912 M8x40

0912080403

Unavailable

29

HOSE 5,4X9,4 NBR, METER

60007126001

Unavailable

36

SEAT COVER

60407040050

Unavailable

37

Gasket fuel lever sensor

60307080090

Unavailable

38

PILLION SEAT HEATED

60407047000

Unavailable

39

SEAT COVER PILLION

60407047050

Unavailable

43

Screw for expansion tank

69013099050

Unavailable

44

GRIP L/S D. TITAN.

60312008100KBA

Unavailable

45

HANDGRIP R/S TITAN

60312009200KBA

Unavailable

46

BAGGAGE CARRIER BRIDGE

6031201000033S

Unavailable

47

AH-COLLAR SCREW M8X40 ISA45

0035080406

Unavailable

49

LOCK CYLINDER SEAT LOCK

60307050020

Unavailable

50

GASKET TANK CAP

60307008190

Unavailable

53

rubber grommet, tank mounting

69007027000

Unavailable

55

WIRE HOLDER FUEL HOSE

60307037000

Unavailable

54

HEAT PROTECTION

60307016010

Unavailable

60

HEAT PROTECTION TANK

60307013180

Unavailable

61

HEAT PROTECTION TANK LEFT

60307013181

Unavailable

62

HEAT PROTECTION TANK RIGHT

60307013182

Unavailable

63

heat foil

60307058000

Unavailable

64

heat foil

60307059000

Unavailable
