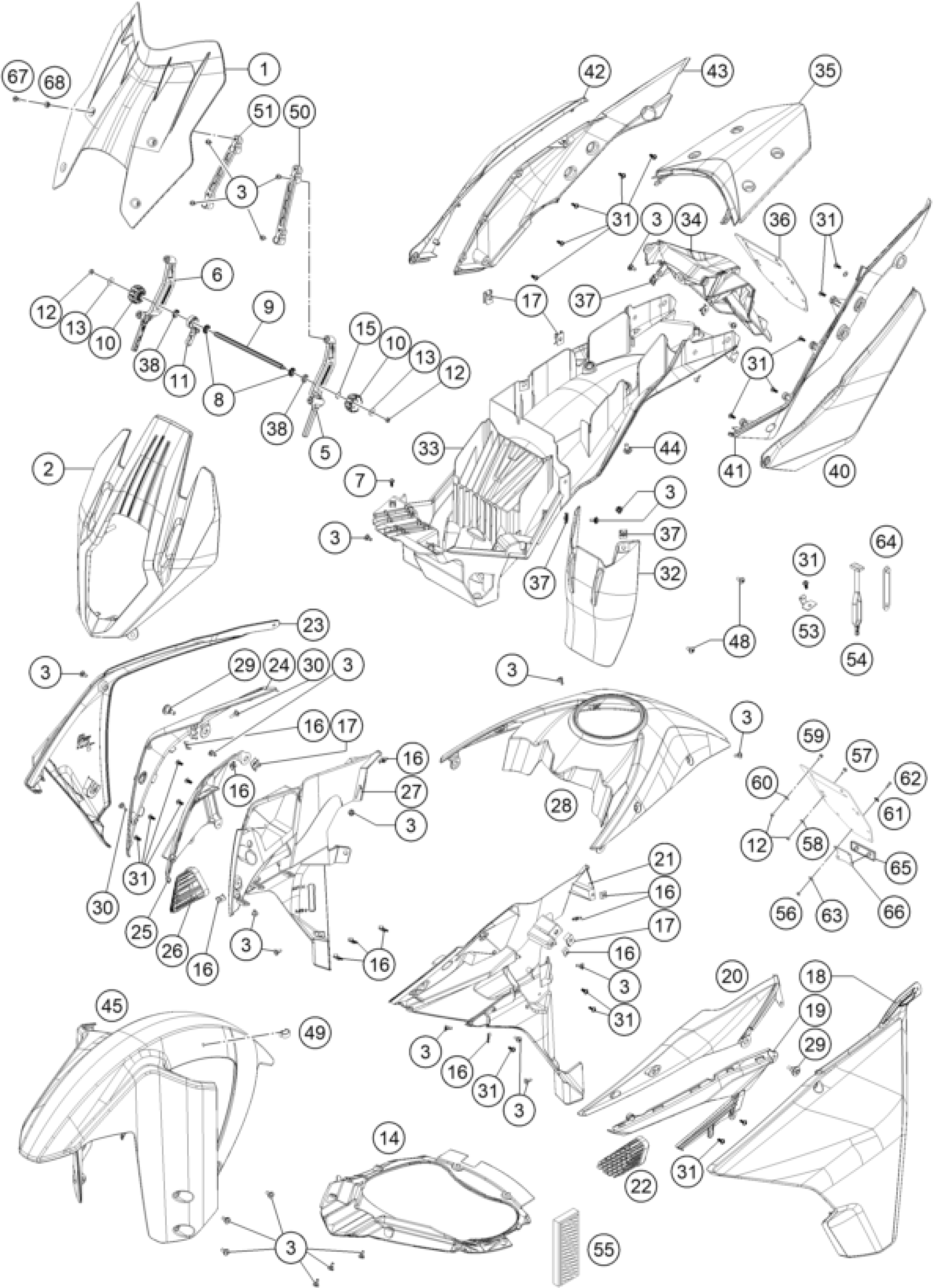

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015 MASK, FENDERS Diagram

#

Description
Price

27

INNER LINING RIGHT

60308026100

$28.72

29

SPECIAL SCREW M6X21 WS=8

60035001000

$3.08

30

special screw M5x17

69008021060

$3.08

1

WINDSHIELD EU

60408008000

Unavailable

2

HEADLIGHT MASK

60408001000

$100.60

3

special screw M5x12

69008021160

$4.11

5

WINDSHIELD BRACKET L/S

60408008050

$19.72

6

WINDSHIELD BRACKET R/S

60408008051

$19.72

7

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

8

GEAR 16TH ADJUSTMENT

60408008155

$8.41

9

CONNECTIN SHAFT M6

60408008054

$25.98

10

ADJUSTING WHEEL

60408008053

$8.41

11

CLAMP LEVER RIGHT

60408008052

$7.94

12

Self lock. nut DIN985-M6-A2

0985060003

$2.05

13

Washer DIN9021-A 6.4

0021060003

$2.05

14

COCKPIT COVER LOWER SIDE

60308005000

$19.37

16

clip nut M5

69008021080

$3.08

17

clip nut M6

54603048100

$4.11

21

INNER LINING LEFT

60308025100

$28.72

22

COVERING GRID AIR INTAKE L/S

60308021050

$12.15

61

WASHER 6MM

40006006000

$1.49

62

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

64

RUBBER CABLE TIE 75MM 03

60011093075

$5.23

65

REFLECTOR RED

58412080000

$5.23

57

HH collar screw M6x15 TX30

0024060156

$3.08

58

Washer DIN9021-A 6.4

0021060003

$2.05

59

HH collar screw M6x20 TX30

0024060206

$3.08

60

WASHER DIN0125-A 6,4

0125060003

$1.49

55

SIDE REFLECTOR YELLOW 03

60012080000

$6.44

56

Self locking nut DIN 985 M5

0985050003

$2.05

66

BRACKET FOR REFLECTOR

58412080050

$6.07

63

WASHER DIN0125-A 5,3

0125050003

$1.49

26

COVERING GRID AIR INTAKE RIGHT

60308031050

$11.12

18

SPOILER L/S

60408050000AAA

$349.03

19

AIR INTAKE LEFT

60308002050KBA

$83.39

20

MASK ARM LEFT

60308002000BGA

$100.13

23

SPOILER R/S

60408051000AAA

$357.44

24

MASK ARM RIGHT

60308003000BGA

$100.13

25

AIR INLET RIGHT

60308003050KBA

$83.39

28

TANK COVER

60308030000AAA

$329.39

31

EJOT PT screw K50x12

0081050121

$2.05

32

SPLASH PROTECTION

60304050000

$14.58

33

TAIL END LOWER PART

60308019000

$57.96

34

NUMBER PLATE SUPPORT

60308015000

$18.97

35

TAIL FENDER BLACK

6030801310033

$10.84

36

license plate mouning plate

60012081200

$8.41

37

RANGE CHANGE METAL NUT M5

54603048200

$5.23

40

TAIL SPOILER L/S PEARL W.

60308041000AAA

$237.95

41

REAR SIDE COVER LEFT

6030804300033

$25.89

42

TAIL SPOILER R/S PEARL W.

60308042000AAA

$237.95

43

REAR SIDE COVER RIGHT

6030804400033

$25.89

44

SPECIAL SCREW M6X15X3

83008000015

$3.08

45

FRONT FENDER

60308110000AAA

$260.20

48

HH collar screw M6x12 TX30

0025060126

$3.08

49

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

53

BRACKET FOR VEHICLE TOOLS

60312062000

$21.78

54

RUBBER L=145MM

50303018000

$6.44

15

WAVO SPRING YRW-0062

60408008063

$3.08

38

WINDSHIELD HOLDER RUBBER

60408008057

$13.46

50

WINDSHIELD ADAPTER L/S

60408008060

$18.04

51

WINDSHIELD ADAPTER R/S

60408008061

$18.04

67

Special screw M5x14

60708008071

$2.05

68

rubber bush windshield fixatio

60708008070

$2.05
