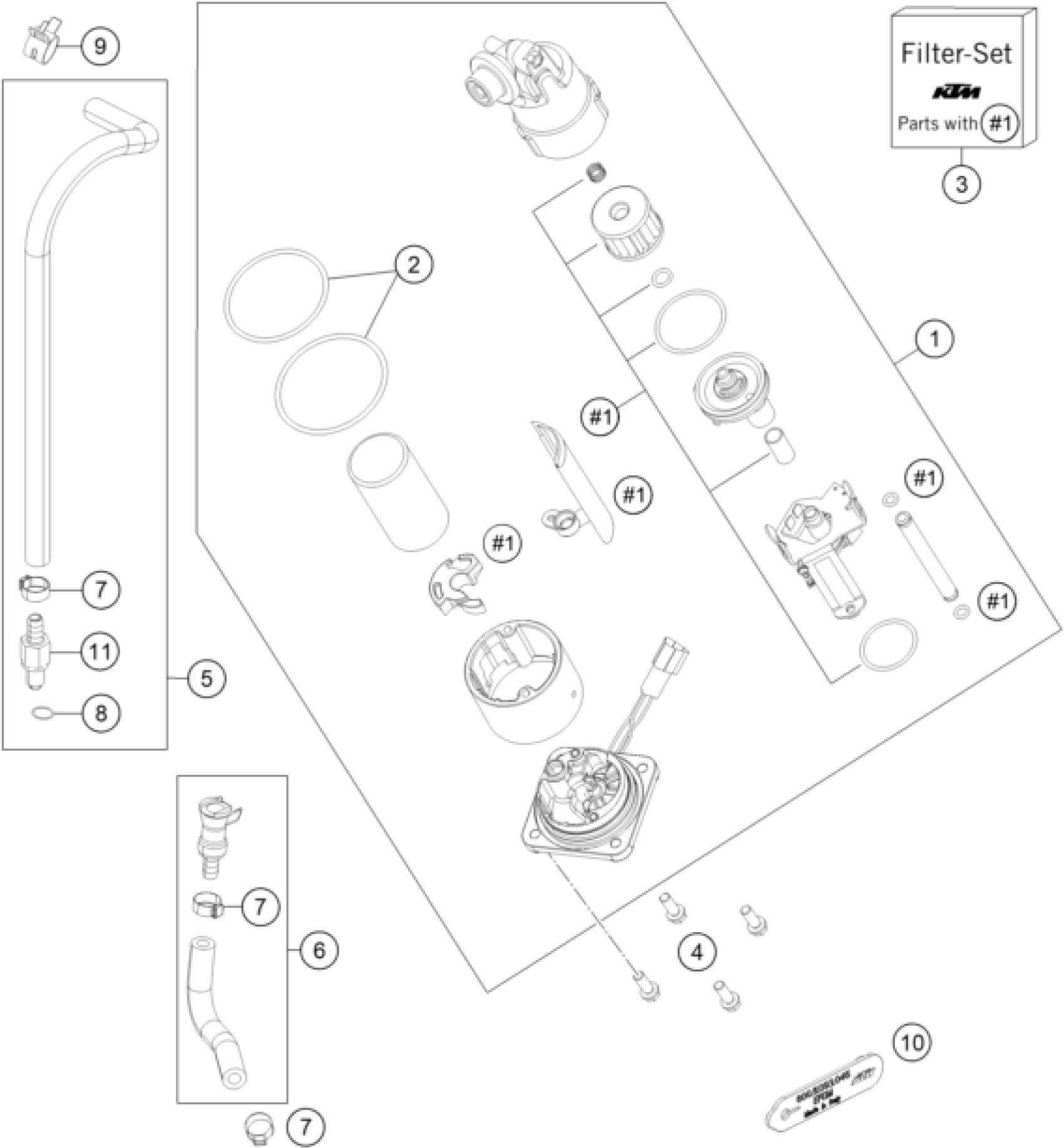

KTM 1290 SUPER ADVENTURE WH ABS 15 <2015 FUEL PUMP Diagram

FUEL HOSE TANK/CONNECTOR

60307017000

$37.48

Variable one-ear clamp 15.7mm

00050157706

$5.23

FUEL PUMP

60307088000

$582.22

O-RING SET FOR FUEL PUMP 05

61007089000

$76.49

FILTER-SET FUEL PUMP

61007090100

$182.88

HH collar screw M6x16 TX30

0025060166

$3.08

FUEL HOSE 1 CPL.

60307016000

$50.11

O-ring VITON f. plug CPC 0

58507012000

$6.26

CLAMP STD DN14

00049140121

$1.49

RUBBER CABLE TIE 45MM 03

60011093045

$3.08

Plug CPC black 05

5850701030030

$43.28
