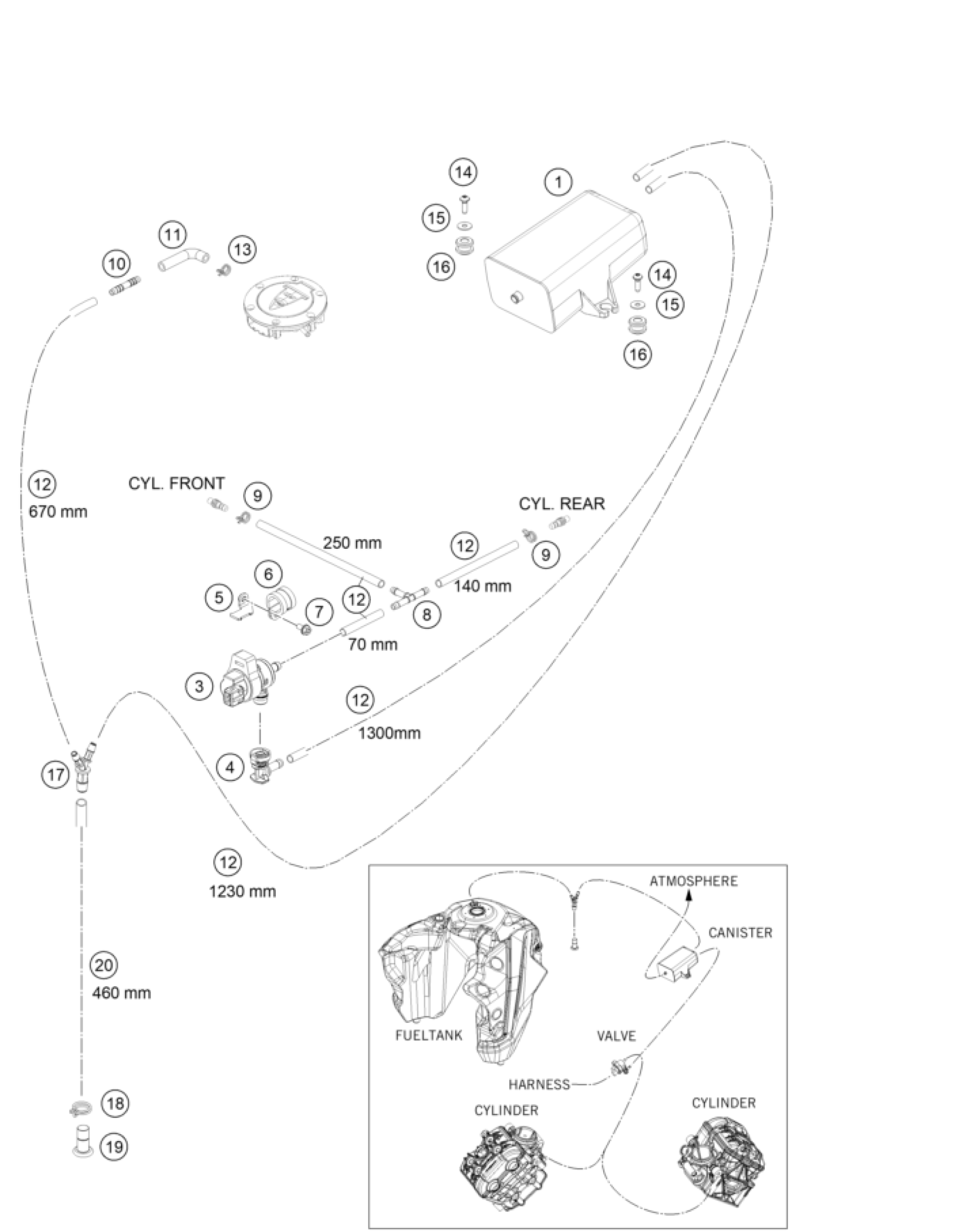

KTM 1290 SUPER ADVENTURE T 2017 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

EVAPORATE CANISTER

60415001000

Unavailable

3

VALVE FOR CARBON CANISTER 07

61115015000

Unavailable

4

FITTING PIECE NQV2 NW7 90°

61115016000

Unavailable

5

RETAINING PLATE VALVE EC

76515032000

Unavailable

6

CLAMP RSGU 18/15 03

59007439000

Unavailable

7

HH collar screw M5x10 TX30

0025050106

Unavailable

8

T-connector TS-6 03

60015022000

Unavailable

9

YDNAC-clamp 10101 (10.4MM)

58007017000

Unavailable

10

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

11

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

12

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

14

EJOT PT SCREW K50X16 1451

0081050161

Unavailable

15

washer DIN 9021 A - 5.3

0021050003

Unavailable

16

VIBRATION DAMPER DIGITALBOX 03

60039030000

Unavailable

17

Y-CONNECTOR YS 6-10-6

61315028100

Unavailable

18

YDNAC-clamp 10173 (16MM)

58431082100

Unavailable

19

PLUG D=10

61315026000

Unavailable

20

HOSE EPA D=10/16 L=2000MM

78015119000

Unavailable

13

CLAMP YDNAC 10096F (9,6MM)

59007017000

Unavailable
