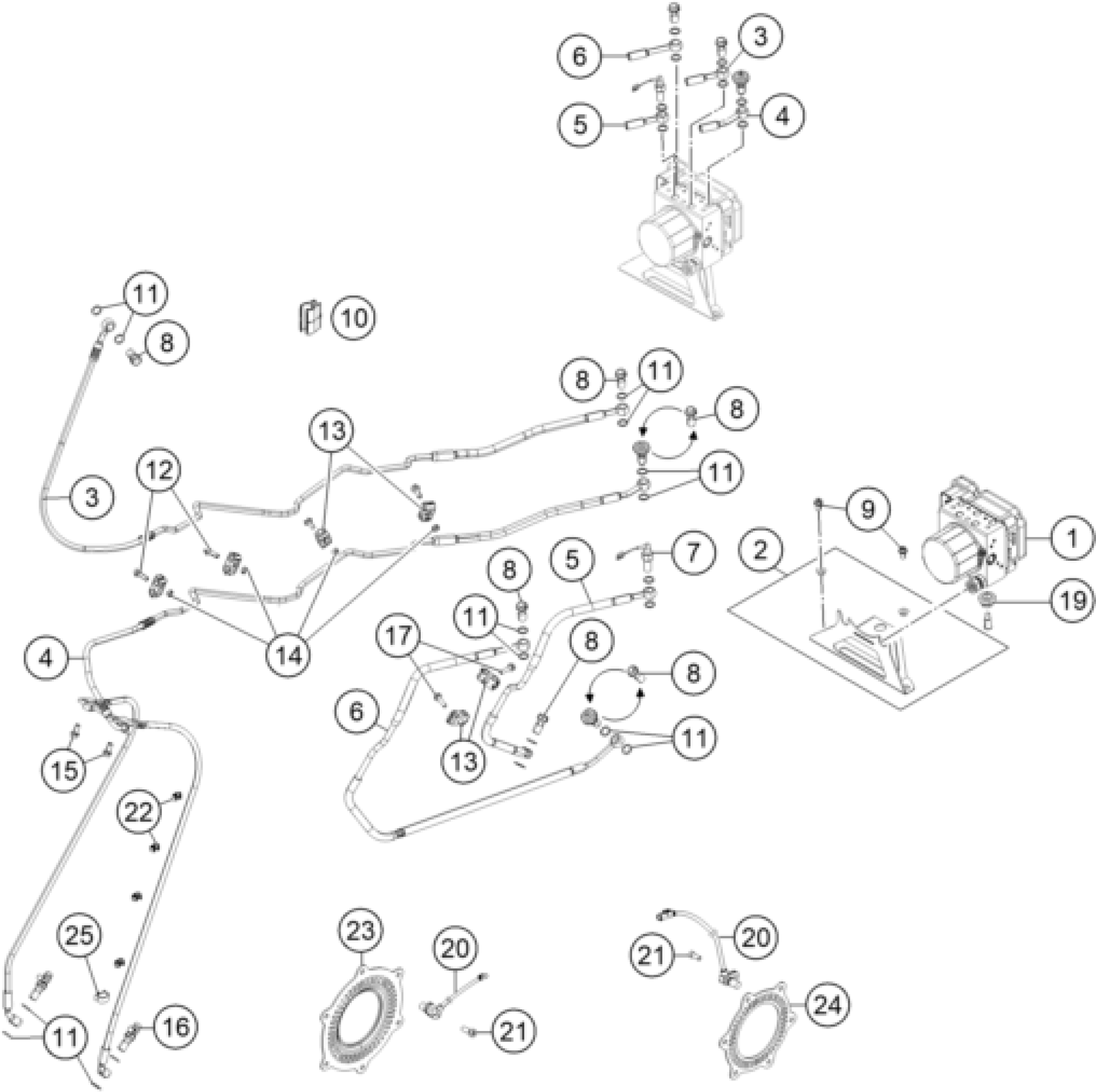

KTM 1290 SUPER ADVENTURE T 2017 ABS Diagram

#

Description
Price

1

ABS MODULE FILLED

60442031144

$3,633.03

2

SUPPORT ABS-MODULE CPL.

60342040044

$64.04

3

HOSE HAND BRAKE CYLINDER

60342003000

$143.70

4

BRAKE HOSE BRAKECALIPER FRONT

60342104000

$285.26

5

BRAKE HOSE REAR BRAKE CONTROL

60342001000

$81.24

6

Brake line rear caliper

60342002100

$68.34

7

BRAKE LIGHT SWITCH REAR

60311051000

$43.66

8

banjo bolt M10x1x19.5

62113020100

$8.78

9

HH collar screw M6x16 TX30

0025060166

$3.08

10

CABLE SUPPORT 10/4MM 2014

54813026100

$2.05

11

sealing ring DIN 7603 10x14x1

0603100141

$2.05

12

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

13

SUPPORT FOR BRAKE HOSE M5

60113146000

$3.08

14

Self locking nut DIN 985 M5

0985050003

$2.05

15

HH collar screw M6x12 TX30

0025060126

$3.08

16

BLEEDER SCREW CPL. 05

62513020000

$27.48

19

DAMP RUBBER

60342041000

$5.23

20

ABS-SENSOR

76042125000

$189.98

21

Cap head bold ISO 14580 M6x16

014580060166

$2.05

22

BAR SPACER 4/7 BLACK

60111094100

$5.79

23

Phonic wheel ABS

60342020000

$27.95

24

Phonic wheel ABS, rear

60142021100

$21.59

25

CABLE SUPPORT KHS NR.150-47610

58111076000

$4.11

17

HH collar screw M5x20 TX30

0025050206

$2.05
