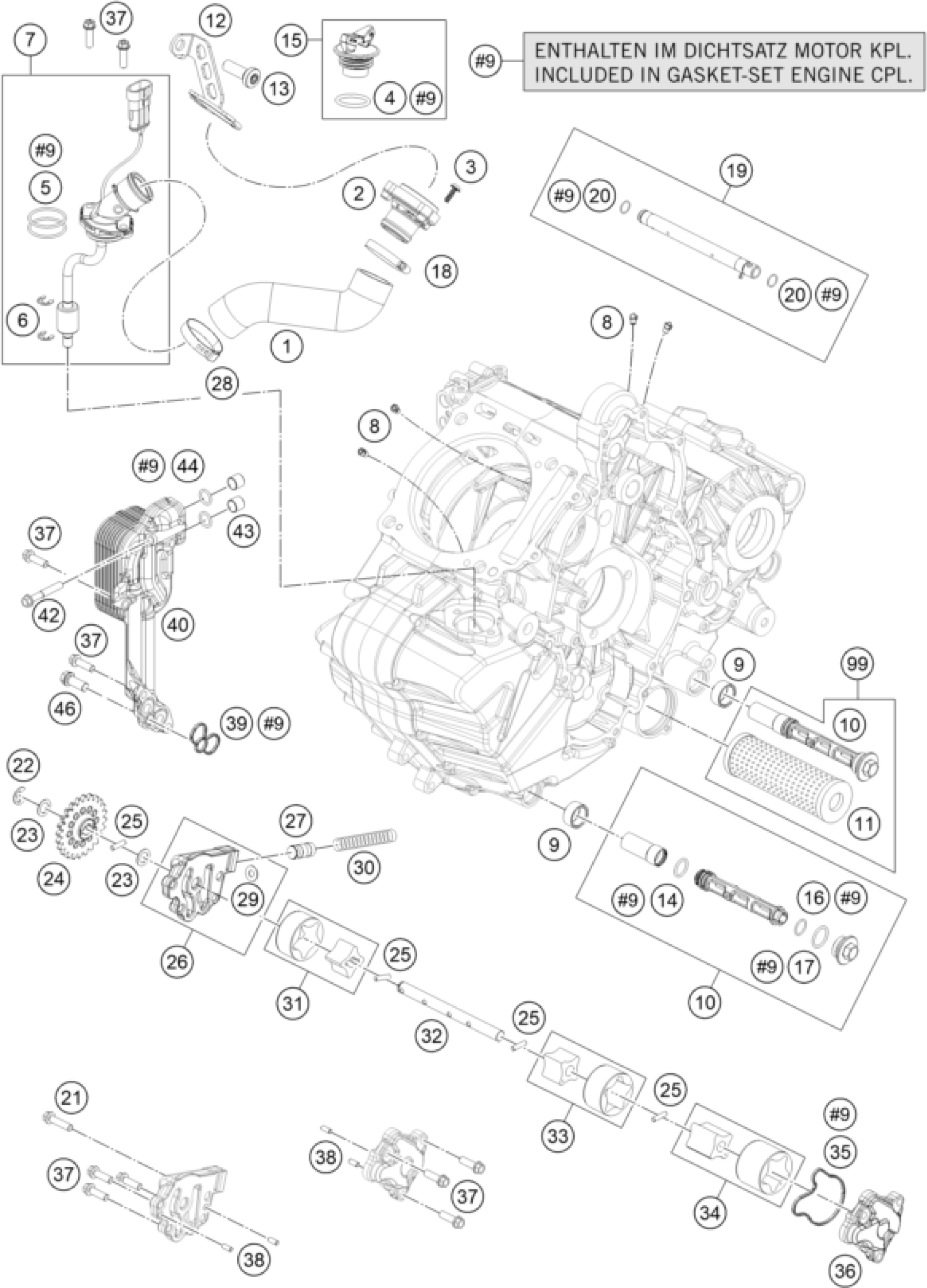

KTM 1290 Super Adventure T 2017 LUBRICATING SYSTEM Diagram

OIL INFILLING HOSE

60407026000

Unavailable

THREADED ADAPTER

60307129000

$8.97

EJOT PT screw K50x14

0081050141

$1.49

O-RING 25,00X3,20 NBR 70

0770250032

$2.05

O-RING 30X2,0 FPM

0770300020

$3.08

TAB WASHER DIN6799-RS 7,0

0799070000

$1.49

OIL INFILLING PIPE CPL.

61338085000

$186.52

oil jet 70 M5

60030063070

$8.59

OIL SCREEN BUSHING 08

61238017000

$6.91

oil screen cpl.

61238021100

$26.17

OIL FILTER

61338015200

$20.66

OIL FILLER PLUG SUPPORT

60407026050

$34.77

AH collar screw M10x30 ISA45

0035100309S

$3.08

O-RING 14,00X2,00

0770140200

$2.05

OIL PLUG CPL.

60338085100

$14.39

O-RING 12,5X1,5 NBR

0770125015

$2.05

O-RING 17,00X2,00

0770170200

$2.05

Hose clamp 25-40 SGT 4

10001120000

$5.32

OIL INJECTION TUBE CPL. 08

61230065000

$26.45

o-ring 10.00x1.00 NBR70

0770010010

$2.05

HH collar screw M6x25 TX30

0025060256

$3.08

retaining washer DIN 6799 - 8

0799080000

$1.49

washer 10x16x0.5

60038007010

$2.33

oil pump gear 24 teeth

60038001224

$14.86

needle roller NRB 4x15.8 G2

0402041580

$2.05

PRESSURE PUMP COVER CPL.

61238009144

$30.10

CONTROL PISTON LC8 03

60038028000

$5.23

VARIABLE ONE-EAR CLAMP 37,6MM

00050376706

$3.08

shim

50337073000

$2.05

Oil pressure spring

61438026000

$4.11

ROTOR-SET 19MM 03

60038009000

$52.91

OIL PUMP SHAFT 08

61238002000

$19.91

ROTOR SET 22MM

61238011100

$16.63

eaton pump set 30mm

61238010100

$22.90

MOLDED RING SUCTION PUMP COVER

61238008150

$20.09

SUCTION PUMP COVER

61238008200

$23.65

HH collar screw M6x20 TX30

0025060206

$3.08

needle roller DIN 5402 5x9.8

0402050980

$1.49

MOLDED RING

61238051000

$5.23

OIL COOLER CPL.

6923805000033

$166.70

HH collar screw M6x50 TX30

0025060506

$3.08

BUSHING

61238052000

$5.23

O-RING 12X2 VITON GREEN

0770012021

$2.05

HH collar screw M8x20

0025080206

$2.05

OILFILTER SERVICE KIT

00050000068

Unavailable
