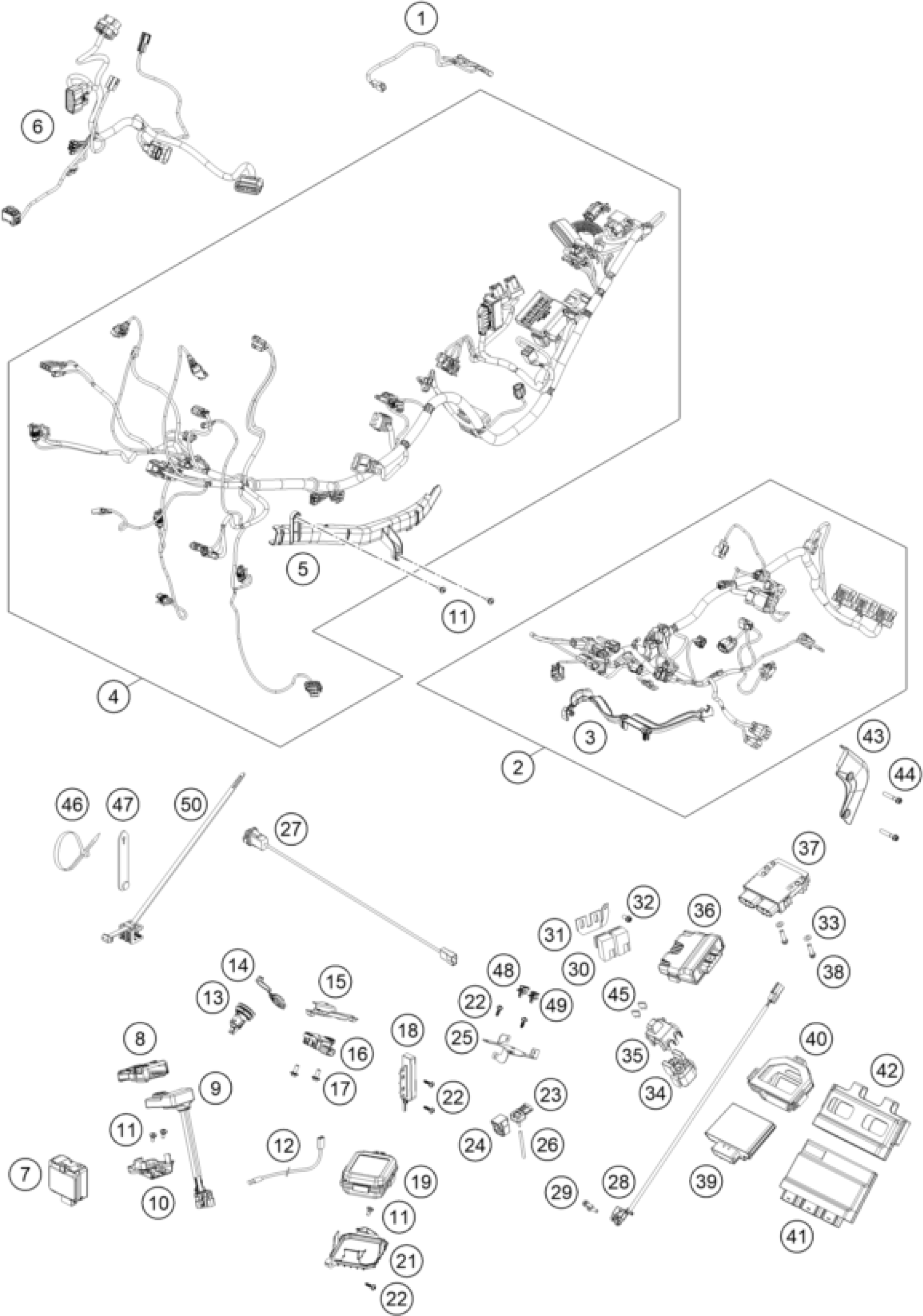

KTM 1290 SUPER ADVENTURE S IKD 2024 WIRING HARNESS Diagram

#

Description
Price

1

Wiring harness, rear

61911076000

$45.06

2

Engine wiring harness cmpl.

61911085133

$326.12

3

cable channel engine wiring ha

61911046000

$14.67

4

Main wiring harness cmpl.

61911075133

Unavailable

5

Cable channel, main wiring har

61911047000

$18.97

6

Wiring harness, front

61911078000

$221.68

7

Front Radar Sensor

61942089000

$2,995.73

8

Rubber support, CCU

79114086050

$7.47

9

Connectivity unit

79114086100

$491.72

10

Bracket, KTM MY RIDE control u

61911047050

$3.08

11

special screw M5x12

69008021160

$4.11

12

Temperatur sensor

61111018100

$31.59

13

Power socket 12V

60711042000

$55.81

14

Lid 12V-socket

60311042050

$7.38

15

Retaining bracket lean angle s

61942090040

$41.79

16

Angle sensor

61542090000

$391.01

17

HH collar screw M6x15 TX30

0024060156S

$2.05

18

Race on antenna

61911168000

$78.81

19

HLU control unit

61914039000

$672.72

21

Control unit bracket, HLU

61914039010

$13.83

22

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

23

PRESSURE SENSOR 06

61041085100

$144.36

24

RUBBER SUPP. PRESSURE SENS. 06

61041085150

$5.23

25

Connector support

61911083000

$7.66

26

HOSE 3,2X8,5 L=50 MM 05

61041095050

$6.54

27

USB Power Supply 12V

61711043000

$42.63

28

Suspension travel sensor

61916062000

$141.92

29

HH Collar Screw M5x16 ISA30 SS

0025050166S

$1.49

30

RELAY CM1A-R-12V-H80 07

61111057000

$16.82

31

Retaining bracket, relay

61911057050

$5.70

32

HH collar screw M6x12 TX30

0025060126

$3.08

34

Starter reley 12V 99

58211058000

$72.64

35

Cover flap, starter relay

64111058110

$3.08

36

Control unit semi-active chass

61916031000

$550.61

37

Voltage regulator, 50 A

61911034000

$172.97

38

HH collar screw M6x25 TX30

0025060256

$3.08

39

Control unit MCU 3.0

60711033000

$646.64

40

Rubber band

60711033050

$11.12

41

Engine control unit "KTKZ"

61941031000

$440.94

42

Rubber mount ECU

61741031050

$18.60

43

Plug cover

61411095000

$22.52

44

HH collar screw M6x35 TX30

0025060356

$3.08

45

Plug-in fuse, big 30A

58011109130

$2.05

46

CABLE TIE 140/2,5MM BLACK

44011076140

Unavailable

46

Cable tie 200/4.6mm black

44011076200

Unavailable

46

CABLE TIE 300/4,8MM BLACK

44011076305

Unavailable

47

RUBBER CABLE TIE 60MM 03

60011093060

$4.11

48

Plug clip

000700000KN001

$2.05

49

Socket connector clip

000700000KE001

$2.05

33

PLASTIC WASHER 03

60007020040

$1.49

50

Cable tie with foot section

0330000520000

Unavailable
