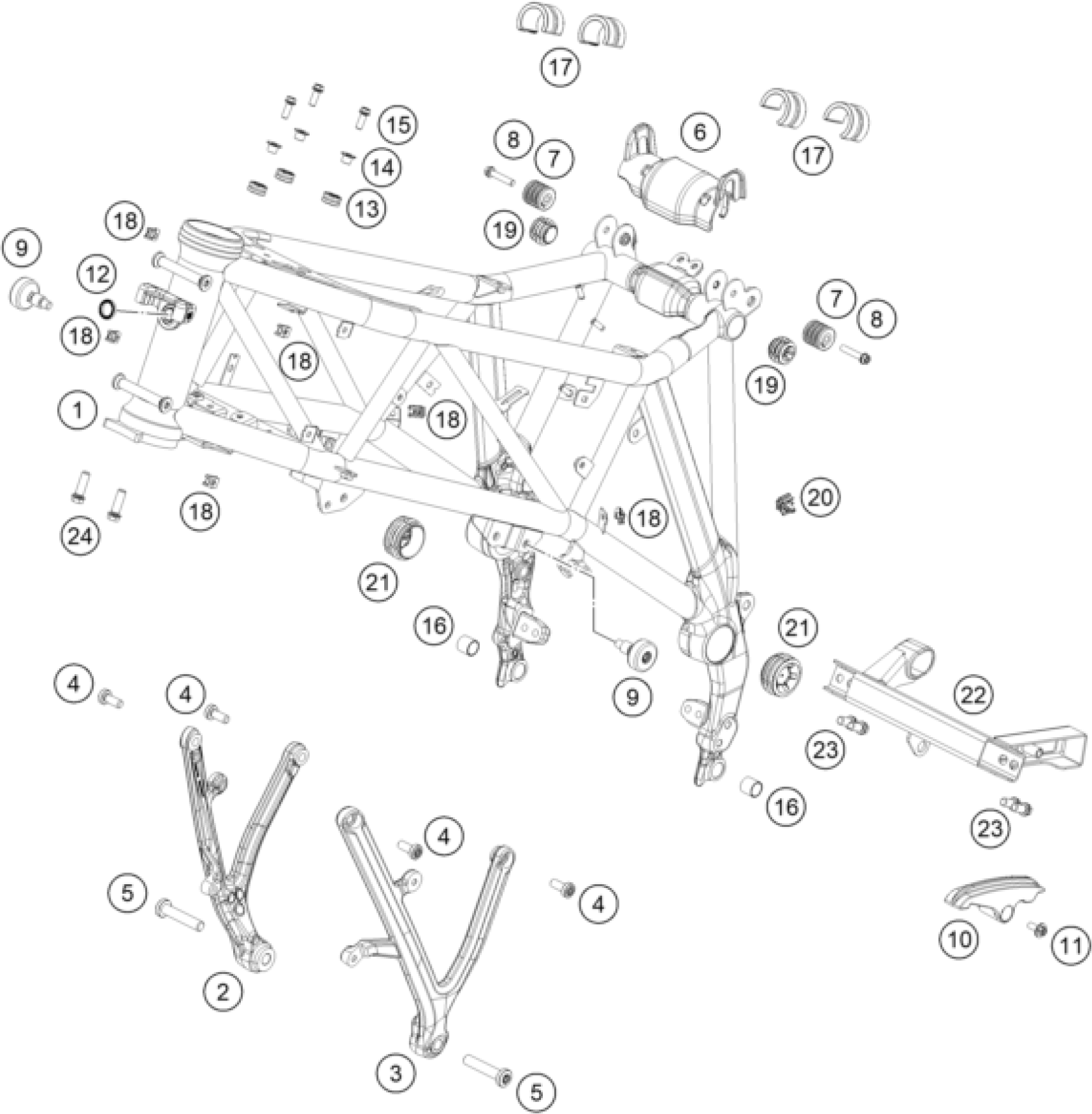

KTM 1290 SUPER ADVENTURE S IKD 2024 FRAME Diagram

#

Description
Price

1

Frame 619UA

61903001000C1

Unavailable

2

Engine brace right

6190300510001

Unavailable

3

Engine brace left

6190300610001

Unavailable

4

SHCS M8x20 TX45

0035080206S

Unavailable

5

AH collar screw M10x50 ISA45

0035100509S

Unavailable

7

Rubber seat cowl pad

61907048100

Unavailable

8

HH collar screw M6x30 TX30

0025060306S

Unavailable

9

SPECIAL SCREW M8 06

62507026100

Unavailable

10

Chain slider

61903070000

Unavailable

11

HH collar screw M6x15 TX30

0024060156

Unavailable

12

Ignition lock gasket

61911066010

Unavailable

13

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

14

Collar bushing 6.1x9.2x15x8.5x

00185006009U0

Unavailable

15

HH collar screw M6x16 TX30

0025060166

Unavailable

16

Plain bearing

61903916050

Unavailable

17

SPACER FUEL TANK 05

61007014000

Unavailable

18

clip nut M5

69008021080

Unavailable

19

Plug D=23.5

61903088000

Unavailable

20

Socket connector clip

000700000HO001

Unavailable

21

Plug, large

61703088000

Unavailable

22

lower cross tube complete

61903001036C1

Unavailable

23

HH collar screw M8x16 TX40 SL

0025080166S

Unavailable

24

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

6

Frame cover abrasion protectio

61903083200

Unavailable
