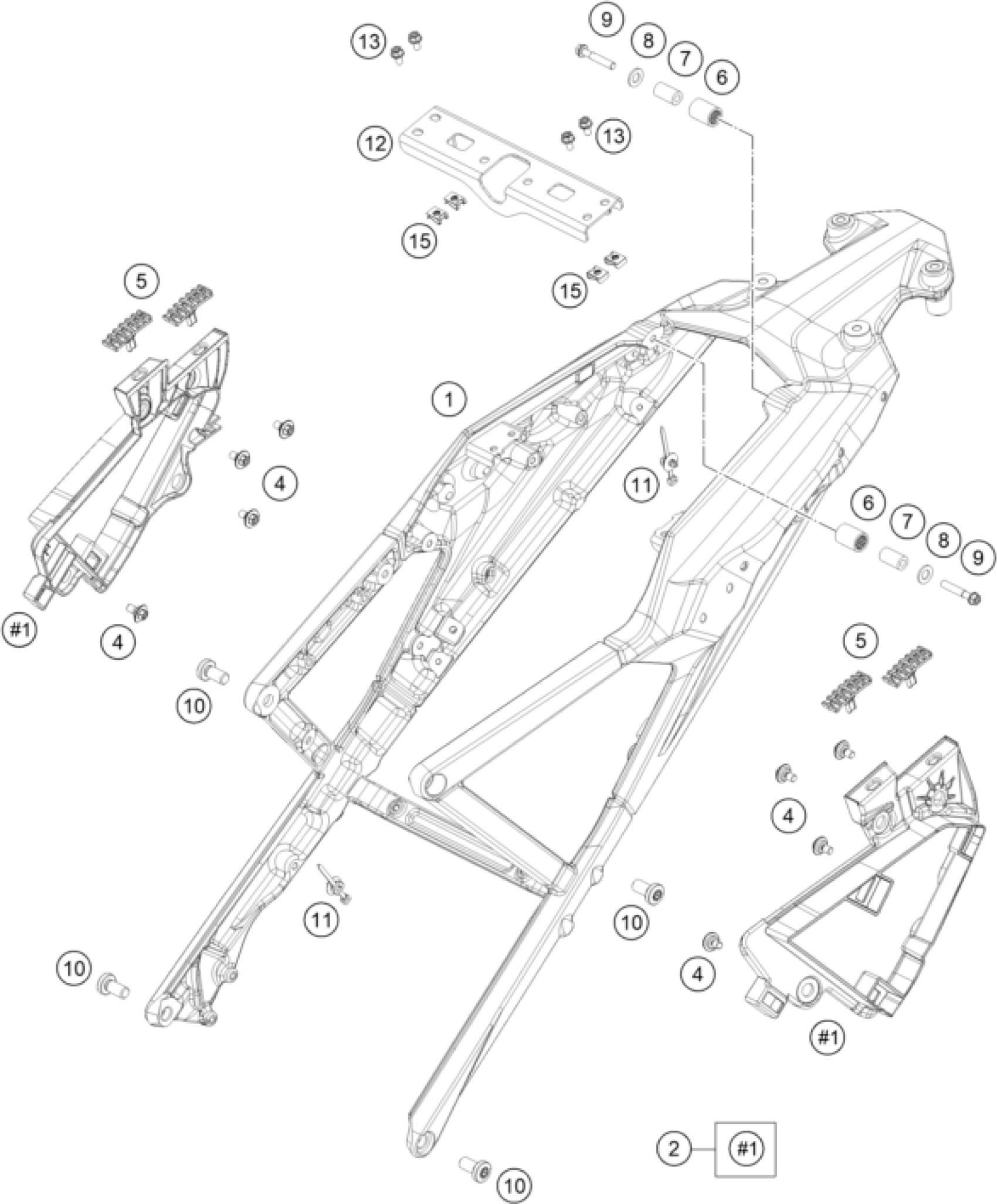

KTM 1290 SUPER ADVENTURE S, grey 2023 SUBFRAME Diagram

#

Description

Price

1

Subframe

61903002000AB

Unavailable

2

Seat cowl pad cpl.

61907040040

Unavailable

4

special screw M6x12x3

83008000012

Unavailable

5

Seat cowl pad, left, elastomer

61907040055

Unavailable

6

RUBBER SEAT-CONTACT SURFACE

60307048000

Unavailable

7

BUSH 6.2X12X21.5

60307049000

Unavailable

8

Washer DIN9021-A 6.4

0021060003

Unavailable

9

HH collar screw M6x35 TX30

0025060356

Unavailable

10

AH collar screw M10x20 ISA45

0035100209

Unavailable

11

Cable strap w.plug-in foot for

61711094100

Unavailable

12

Retaining bracket lock

61903002066

Unavailable

13

HH collar screw M5x10 TX30

0025050106

Unavailable

15

RANGE CHANGE METAL NUT M5 INOX

54603048600

Unavailable
