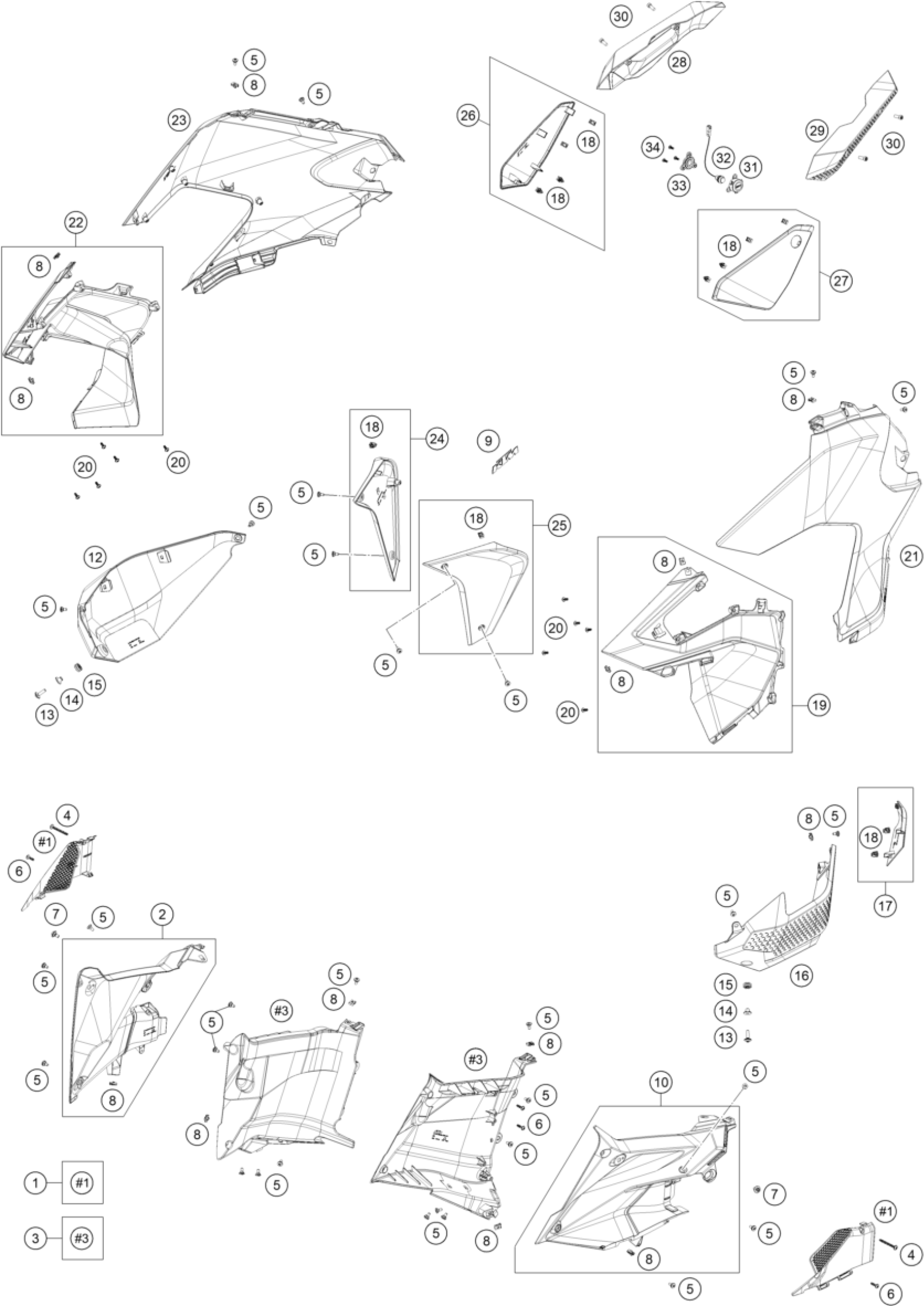

KTM 1290 SUPER ADVENTURE S, grey 2023 SIDE TRIM Diagram

#

Description
Price

1

Air intake cover cpl.

61908002061

$29.72

2

Mask spoiler right cpl.

61908104033

$46.32

3

Inner cover cpl.

61908025044

$56.28

4

EJOT PT screw K50x50 T25

0000170505000

$2.05

5

special screw M5x12

69008021160

$4.11

6

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

7

special screw M6x12x3

83008000012

$3.08

8

clip nut M5

69008021080

$3.08

9

Decal 3D ''KTM'' 17

61608098000

$22.43

10

Mask spoiler left cpl.

61908103033

$49.45

12

Tank protection right

61907025022

$42.58

13

Collar screw M6x22-8.8 ISA30

69014117000

$2.05

14

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

15

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

16

Tank protection left

61907025012

$42.58

17

Oil plug cover

61907025025

$15.98

18

Bracket for side fairing

61908040030

$1.69

19

Radiator shroud top part le. C

61908050011AB

$77.26

20

EJOT PT screw K50x12

0081050121

$2.05

21

Fuel tank spoiler, left bottom

61908050044BHA

Unavailable

22

Radiator shroud top part ri. C

61908051011AB

$77.26

23

Fuel tank spoiler, right botto

61908051044BHA

Unavailable

24

Radiator spoiler ri.

61908061233C1

$30.42

25

Radiator spoiler left cmpl.

61908060133C1

$30.42

26

Side fairing rear part right p

61908044033

$27.45

27

Side fairing rear part left pr

61908043044

$30.19

28

Rear cover right, cmpl.

61908045044

$31.88

29

Rear cover left, cmpl.

61908044044

$31.88

30

SHCS ISO 14580 M6x12

014580060126

$2.05

31

Switch support, seat

61908043050

$12.05

32

Release switch, seat lock

61911069000

$66.00

33

Switch holder tip switch

61908043055

$8.97

34

EJOT Delta PT K40x12

0081040121

$3.08
