Partiron

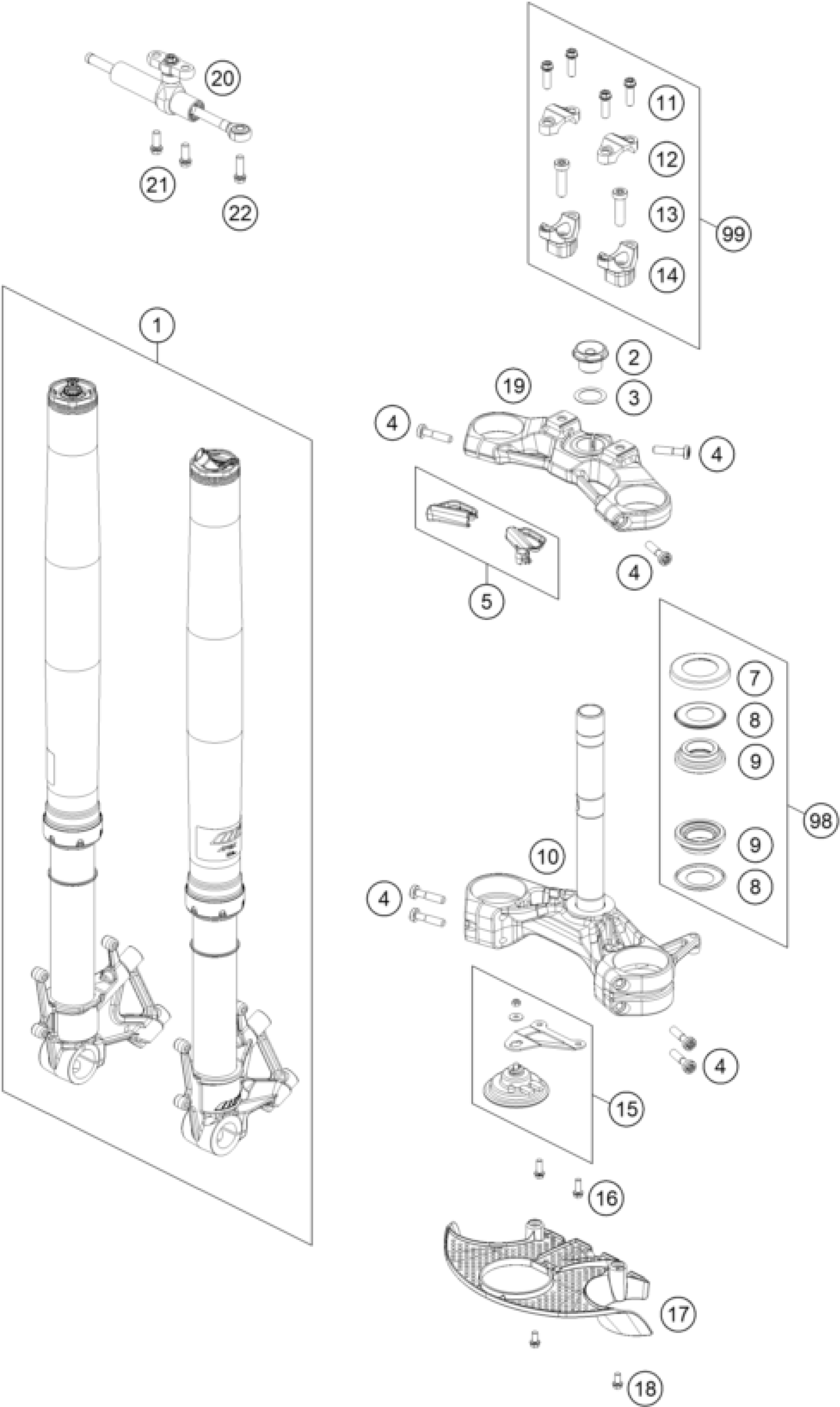

KTM 1290 SUPER ADVENTURE S, black 2023 FRONT FORK, TRIPLE CLAMP Diagram

#

Description
Price

1

Fork KTM 1290 Super Adventure

0619C126W407000

Unavailable

2

Steering head screw

6900103600033

Unavailable

3

thrust wash DIN0988-25x35x0,5

0988253505

Unavailable

4

AH-COLLAR SCREW M8X35 ISA45

0035080356

Unavailable

5

Triple clamp cable protection

61901034010

Unavailable

7

PROT. RING STEER. HEAD BEARING

69001086100

Unavailable

8

Stearing head gasket

69001084100

Unavailable

9

STEERINGHEAD KPL.17

69001181000

Unavailable

10

Bottom triple clamp cmpl. X=32

61901032032C1

Unavailable

11

HH collar screw M8x25

0025080256

Unavailable

12

HANDLEBAR CLAMP 28MM

7720103800030

Unavailable

13

AH-COLLAR SCREW M10X35 ISA45

0032100356S

Unavailable

14

Handlebar mount D28mm-H42mm

5940103904230

Unavailable

15

Horn cmpl.

61911060033

Unavailable

16

HH collar screw M6x16 TX30

0025060166

Unavailable

17

Triple clamp cover, bottom

61908024100

Unavailable

18

HH collar screw M6x12 TX30

0025060126

Unavailable

19

Top triple clamp, X=32 mm

61901034032C1

Unavailable

20

STEERING DAMPER CPL.

16181N53ES

Unavailable

21

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

22

HH COLLAR SCREW M8X25 TX40

0025080256S

Unavailable

98

Stearing head rep. Kit

69001181010

Unavailable

99

HANDLEBAR SUPPORT KIT ADV.1190

00050000927

Unavailable
