Description

Price

1

Silencer USA

61905082000

$939.95

2

V-clamp D=116,1

61905058000

$25.05

3

Manifold gasket

61905005005

$18.97

4

Bushing

60305069100

$2.05

5

DAMPING RUBBER

61305068000

$15.51

6

Shape disc Alu

60405069000

$3.08

7

countersunk screw M8x45 TX45

0019080456

$4.11

8

Heat protection preass.

61905011033

$57.40

9

Oval head screw M5x14 TX25

58605083014

$3.08

10

SILICON SLEEVE

60305083081

$3.08

11

SPACER BUSHING

60305083082

$2.05

12

clip nut M5

69008021080

$3.08

13

DAMPING ELEMENT SILICON

27005011011

$8.50

14

Manifold gasket

69005105005

$7.47

15

Exhaust clamp tube 50 mm

63605058100

$35.80

16

LAMBDA SENSOR

75041090200

$327.34

17

Manifold front

61905007100

$1,588.46

18

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

19

Header with integral insulatio

60405008200

$338.27

20

HH collar screw M8x45 TX40

0025080456

$4.11

21

Heat guard

61905030000

$57.03

22

SCREW TORX M5X10

78105081010

$2.05

23

self-locking nut M8 Cu

51010086100

$3.08

24

EXHAUST PIPE FLANGE GASKET

69005005100

$18.69

25

SHELL EXHAUST PIPE CPL.

60305007015

$33.74

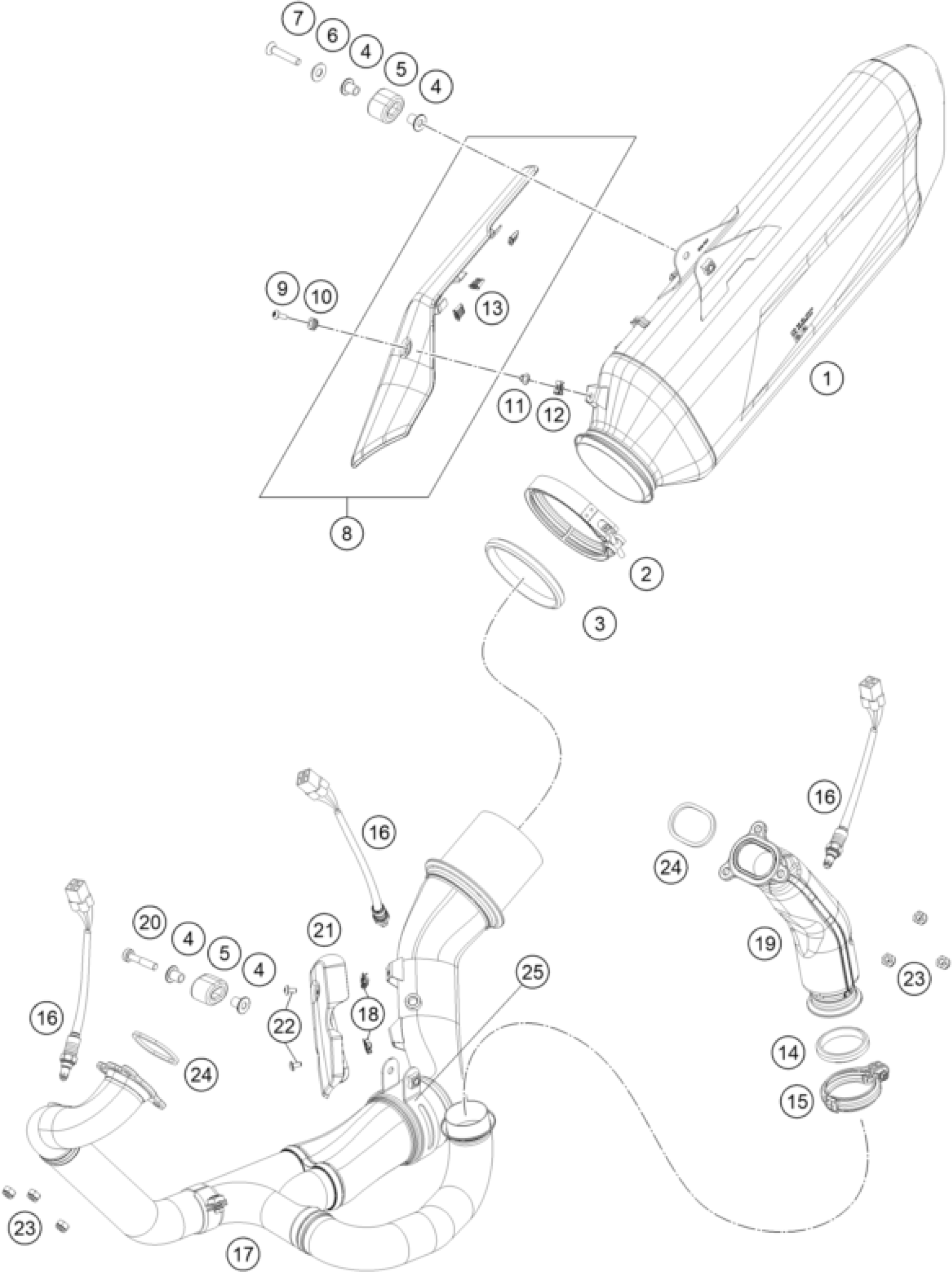

KTM 1290 SUPER ADVENTURE S, black 2023 EXHAUST SYSTEM Diagram

Silencer USA

V-clamp D=116,1

Manifold gasket

Bushing

DAMPING RUBBER

Shape disc Alu

countersunk screw M8x45 TX45

Heat protection preass.

Oval head screw M5x14 TX25

SILICON SLEEVE

SPACER BUSHING

clip nut M5

DAMPING ELEMENT SILICON

Manifold gasket

Exhaust clamp tube 50 mm

LAMBDA SENSOR

Manifold front

RANGE CHANGE METAL NUT M5 INOX

Header with integral insulatio

HH collar screw M8x45 TX40

Heat guard

SCREW TORX M5X10

self-locking nut M8 Cu

EXHAUST PIPE FLANGE GASKET

SHELL EXHAUST PIPE CPL.
