Description

Price

1

Centre stand

61903022000C1

$426.82

2

Plain bearing

61903916050

$2.05

3

Bushing

61903916020

$5.70

4

HH COLLAR SCREW M8X30 TX40

0025080306S

$3.08

5

Rear spring mount, cmpl.

61903022026C1

$45.90

6

Bearing bush, internal spring

61903022010

$5.70

7

HH collar screw M6x16 TX30

0025060166

$3.08

8

SIDESTAND SPRING L=118MM

60303030100

$33.65

10

Swivel joint support

61903022024C1

$23.37

11

BUMP RUBBER M8X25MM

58303070100

$5.88

12

Hexagon nut DIN934 M8

0934080003

$2.05

13

HH collar screw M8x25

0025080256

$2.05

14

Side stand with magnet

61903023133C1

$119.20

16

Screw for side stand M10x31.2

62503027200

$6.72

17

Side stand bracket

61903026050

$50.76

18

AH collar screw M10x30 ISA45

0035100309S

$3.08

19

Side stand bracket

61903026100C1

$83.77

20

HH COLLAR SCREW M8X25 TX40

0025080256S

$3.08

21

SIDE STAND SPRING

60303024100

$40.57

22

Special screw, side stand prin

61303028001

$11.40

23

Side stand sensor

61011045000

$59.64

24

Cap head screw ISO 14580-M4x12

014580040123S

$1.49

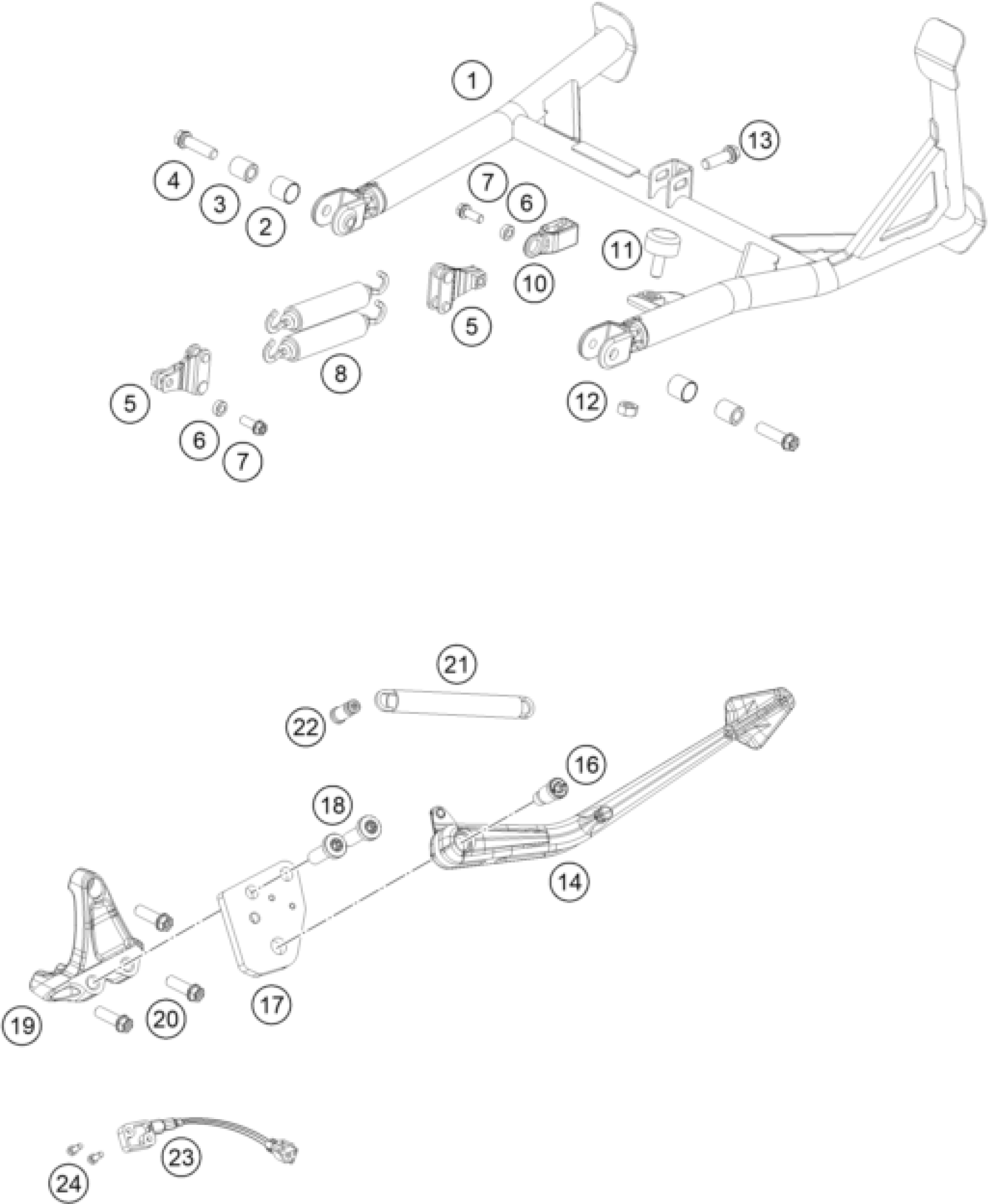

KTM 1290 SUPER ADVENTURE S, black 2021 SIDE / CENTER STAND Diagram

Centre stand

Plain bearing

Bushing

HH COLLAR SCREW M8X30 TX40

Rear spring mount, cmpl.

Bearing bush, internal spring

HH collar screw M6x16 TX30

SIDESTAND SPRING L=118MM

Swivel joint support

BUMP RUBBER M8X25MM

Hexagon nut DIN934 M8

HH collar screw M8x25

Side stand with magnet

Screw for side stand M10x31.2

Side stand bracket

AH collar screw M10x30 ISA45

Side stand bracket

HH COLLAR SCREW M8X25 TX40

SIDE STAND SPRING

Special screw, side stand prin

Side stand sensor

Cap head screw ISO 14580-M4x12
