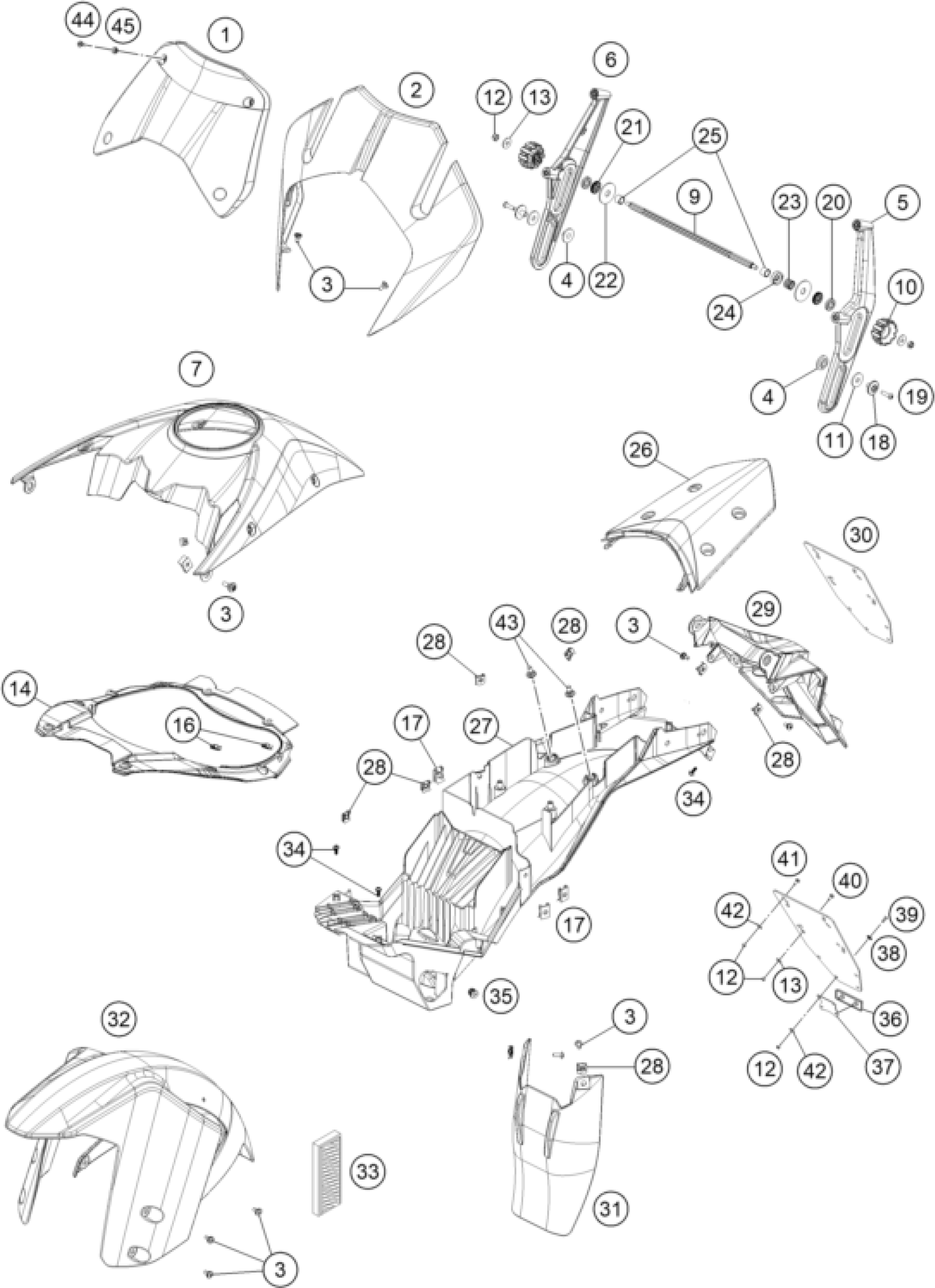

KTM 1290 Super Adventure S, black 2018 MASK, FENDERS Diagram

Windshield EU

60708008000

Unavailable

Headlight mask

60708001000

$67.23

special screw M5x12

69008021160

$4.11

Bearing sleeve

60708008052

$4.11

Windshield support left

6070800805033

$24.77

Windshield support right

6070800805133

$24.77

Tank fairing

60308030000CCA

$329.39

Shaft windshield adjustment

60708008154

$28.60

Adjusting wheel

60408008053B2

$5.23

Washer D=24/T=2.5

60708008062

$2.05

Self lock. nut DIN985-M6-A2

0985060003

$2.05

Washer DIN9021-A 6.4

0021060003

$2.05

Dashboard cover

60708105000

$30.00

clip nut M5

69008021080

$3.08

clip nut M6

54603048100

$4.11

Collared bush

60708008055

$5.41

Lens head screw ISO 7380-M5X20

0738050202

$1.49

Windshield support rubber

60708008057

$11.77

GEAR 16TH ADJUSTMENT

60408008155

$8.41

Washer D=36/T=2

60708008063

$3.08

Spring windshield

60708008067

$10.65

Toothed disk

60708008065

$9.81

Plain bearing

60708008064

$2.05

REAR FENDER

6030801300033

$13.46

Tail end lower part

60308019200

$57.96

RANGE CHANGE METAL NUT M5

54603048200

$5.23

NUMBER PLATE SUPPORT

60308015000

$18.97

license plate mouning plate

60012081200

$8.41

SPLASH PROTECTION

60304050000

$14.58

FRONTFENDER

6030811000033

$63.76

SIDE REFLECTOR YELLOW "CEV"

60012080100

$6.44

EJOT PT screw K50x12

0081050121

$2.05

EJOFORM DELTASERT M6 AL

60308095000

Unavailable

reflector, red

58412080200

$5.23

BRACKET FOR REFLECTOR

58412080050

$6.07

WASHER 6MM

40006006000

$1.49

OVAL HEAD SCREW DIN0966-M 5X16

0966050163

$1.49

HH collar screw M6x15 TX30

0024060156

$3.08

HH collar screw M6x20 TX30

0024060206

$3.08

WASHER DIN0125-A 6,4

0125060003

$1.49

SPECIAL SCREW M6X15X3

83008000015

$3.08

Special screw M5x14

60708008071

$2.05

rubber bush windshield fixatio

60708008070

$2.05
