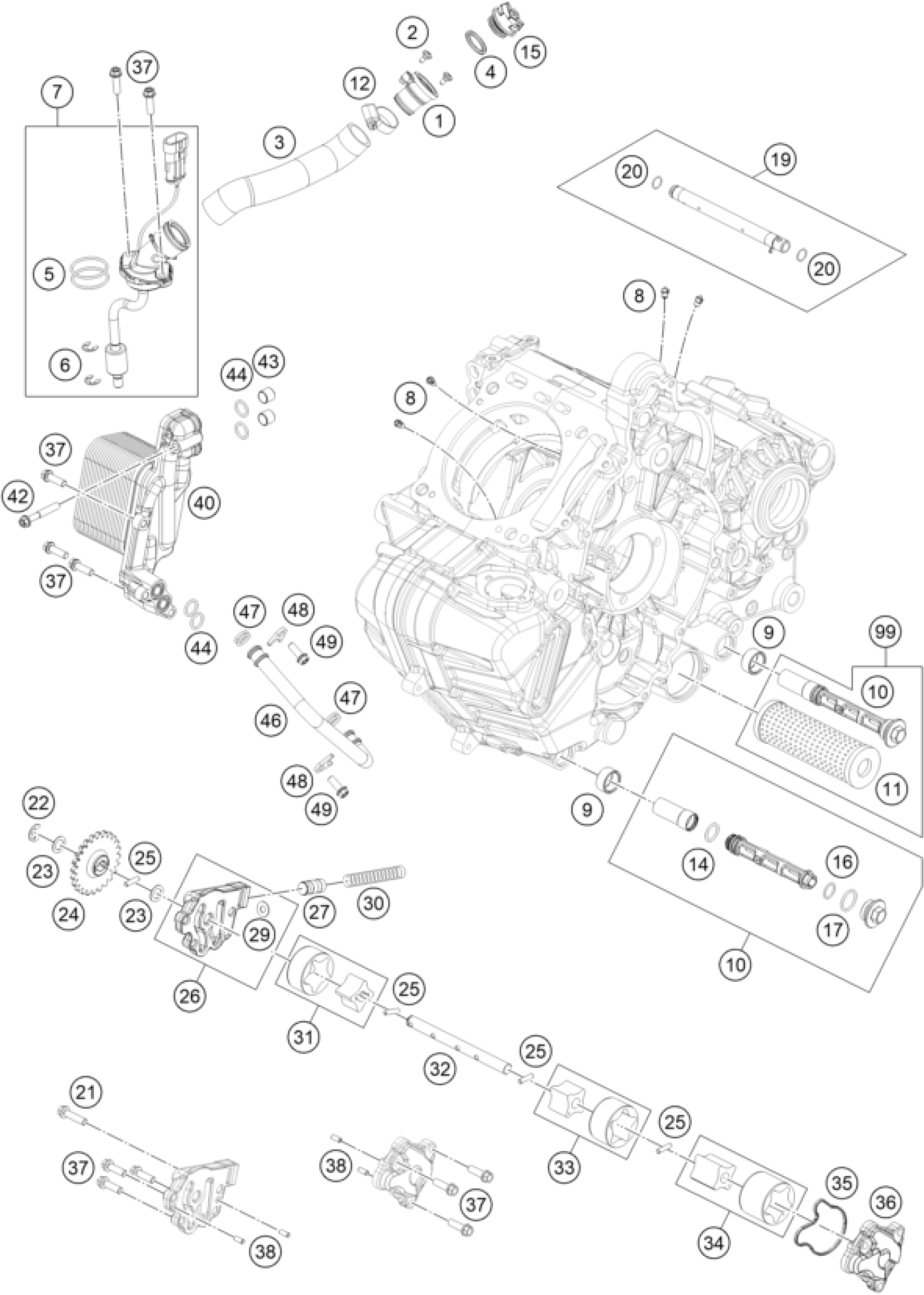

KTM 1290 SUPER ADVENTURE R 2024 LUBRICATING SYSTEM Diagram

#

Description
Price

1

Threaded flange

61907029000

Unavailable

2

special screw M5x12

69008021160

Unavailable

3

Oil filler hose

61907026100

Unavailable

4

O-RING 25,00X3,00 NBR 70

0770250030

Unavailable

5

O-RING 30X2,0 FPM

0770300020

Unavailable

6

TAB WASHER DIN6799-RS 7,0

0799070000

Unavailable

7

OIL INFILLING PIPE CPL.

61338085000

Unavailable

8

oil jet 70 M5

60030063070

Unavailable

9

OIL SCREEN BUSHING 08

61238017000

Unavailable

10

Oil screen cmpl.

61238021300

Unavailable

11

OIL FILTER

61338015200

Unavailable

12

Hose clamp GEMI 20-32

76235028000

Unavailable

14

O-RING 14,00X2,00

0770140200

Unavailable

15

Oil plug

61938085000

Unavailable

16

O-RING 12,5X1,5 NBR

0770125015

Unavailable

17

O-RING 17,00X2,00

0770170200

Unavailable

19

OIL INJECTION TUBE CPL. 08

61230065000

Unavailable

20

o-ring 10.00x1.00 NBR70

0770010010

Unavailable

21

SK-BUNDSCHRAUBE M6X25 ISA30

0025060256S

Unavailable

22

retaining washer DIN 6799 - 8

0799080000

Unavailable

23

washer 10x16x0.5

60038007010

Unavailable

24

oil pump gear 24 teeth

60038001224

Unavailable

25

needle roller NRB 4x15.8 G2

0402041580

Unavailable

26

PRESSURE PUMP COVER CPL.

61238009144

Unavailable

27

control piston

60038128000

Unavailable

29

shim

50337073000

Unavailable

30

Oil pressure spring

61438026000

Unavailable

31

ROTOR-SET 19MM 03

60038009000

Unavailable

32

OIL PUMP SHAFT 08

61238002000

Unavailable

33

ROTOR SET 22MM

61238011100

Unavailable

34

eaton pump set 30mm

61238010100

Unavailable

35

MOLDED RING SUCTION PUMP COVER

61238008150

Unavailable

36

SUCTION PUMP COVER

61238008200

Unavailable

37

HH collar screw M6x20 TX30

0025060206S

Unavailable

38

needle roller DIN 5402 5x9.8

0402050980

Unavailable

40

Oil cooler cmpl.

61738150000

Unavailable

42

Hex collar screw, M6x40, ISA30

0025060406S

Unavailable

43

BUSHING

61238052000

Unavailable

44

O-RING 12X2 VITON GREEN

0770012021

Unavailable

46

Line, oil radiator

61738035000

Unavailable

47

O-RING 11X2 VITON

0770110021

Unavailable

48

Retaining bracket oil line

61738037000

Unavailable

49

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

99

OILFILTER GASKET KIT

61938021344

Unavailable
