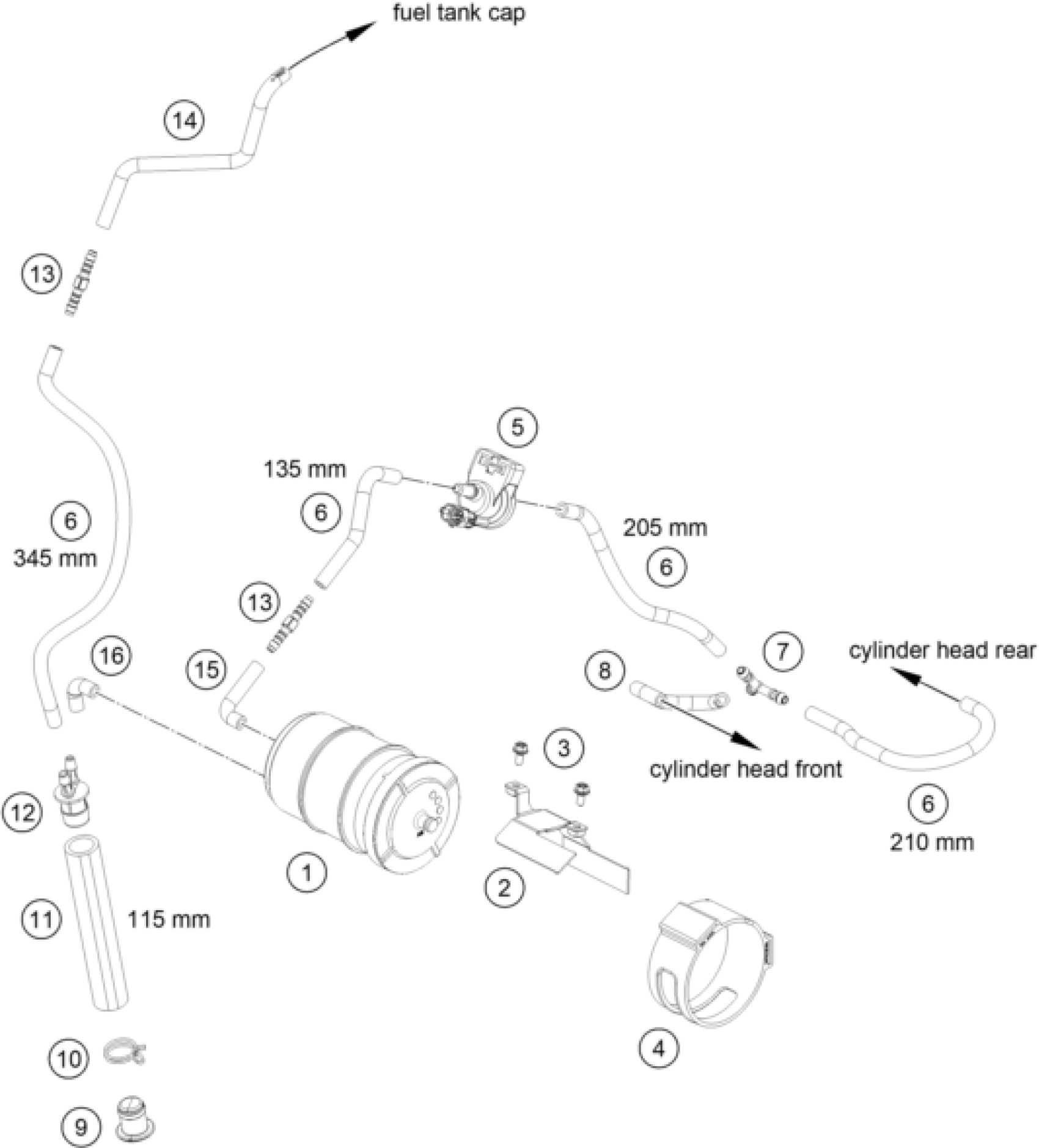

KTM 1290 SUPER ADVENTURE R 2024 EVAPORATIVE CANISTER Diagram

#

Description
Price

1

Evaporative canister

61915001100

Unavailable

2

Ret. bracket act. charcoal fil

61915001040

Unavailable

3

HH collar screw M5x10 TX30

0025050106

Unavailable

4

Rubber band ACF

61915001010

Unavailable

5

EVAP valve

76015015000

Unavailable

6

HOSE EPA D=6/10 L=2000MM

78015019000

Unavailable

7

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

Unavailable

8

Pre-formed hose, ACF valve

61915021000

Unavailable

9

Plug D=18

61915026010

Unavailable

10

YDNAC clamp W1 (25.8-27.4 mm)

0340001202700

Unavailable

11

Hose, FKM/ECO, 18x25 per m.

61915022001

Unavailable

12

Y-PIECE YS 6-18-6

61915028000

Unavailable

13

HOSE CONNECTION STRAIGHT

69015019010

Unavailable

14

Pre-formed hose for fuel tank

61915022100

Unavailable

15

PREFORMED HOSE 6X10 FPM

61315022000

Unavailable

16

Pre-formed hose ACF

61915020000

Unavailable
