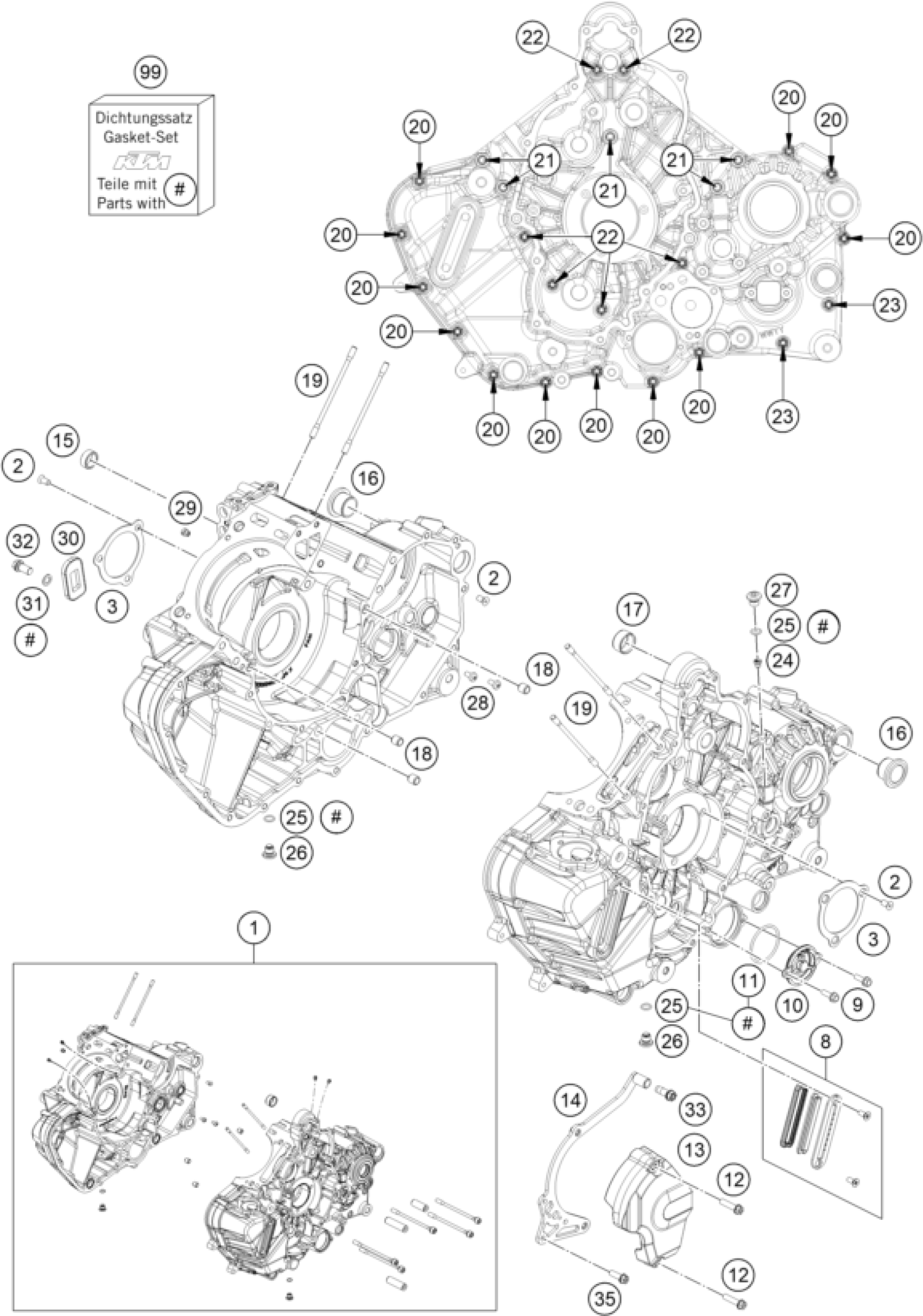

KTM 1290 SUPER ADVENTURE R 2024 ENGINE CASE Diagram

#

Description
Price

1

Engine case cmpl.

6193010014424

Unavailable

2

hex lobe countersunc screw M5x

0019050106S

Unavailable

3

BRACKET FOR BEARING INSERT 08

61230084000

Unavailable

8

OIL SIGHT GLASS CPL.

62638084044

Unavailable

9

HH collar screw M5x16 TX30

0025050166

Unavailable

10

oil filter cover

75038041200

Unavailable

11

O-RING 39,34X2,62

07700390261

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

13

Front sprocket cover

61703096033

Unavailable

14

Chain guard, cmpl.

61930047033

Unavailable

15

SLIDE BEARING

61330157050

Unavailable

16

SWING BEARING OUTSIDE LC8 03

60030010000

Unavailable

17

DOWEL 20,1X24X12 03

60030023000

Unavailable

18

DOWEL 9,8 X 7 X 10

49030090000

Unavailable

19

STUD M6X110 08

61230044000

Unavailable

20

HH collar screw M6x55 TX30

0025060556

Unavailable

21

Case screw M8x125

61230043100

Unavailable

22

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

23

HH COLLAR SCREW M6X70 TX30

0025060706

Unavailable

24

REDUCING JET ''30'' M6X0,75

60038029200

Unavailable

25

O-RING 9x1,5 V80 SH

07700900151

Unavailable

26

SCREW PLUG

77336056095

Unavailable

27

threaded plug

77236080100

Unavailable

28

Oval head screw DIN 7985-M5x10

0018050103S

Unavailable

29

MAIN JET 100 DELLORTO

57031523100

Unavailable

30

SAS Reed Valve

60005026000

Unavailable

31

SEAL RING 8X14X1 AI

45038017000

Unavailable

32

HH COLLAR SCREW M8X16 TX40

0025080166

Unavailable

33

HH collar screw M8x20 TX40 SL

0025080206S

Unavailable

35

HH collar screw M6x16 TX30 SL

0025060166S

Unavailable

99

Engine gasket kit 1290 SD

61730099000

Unavailable
