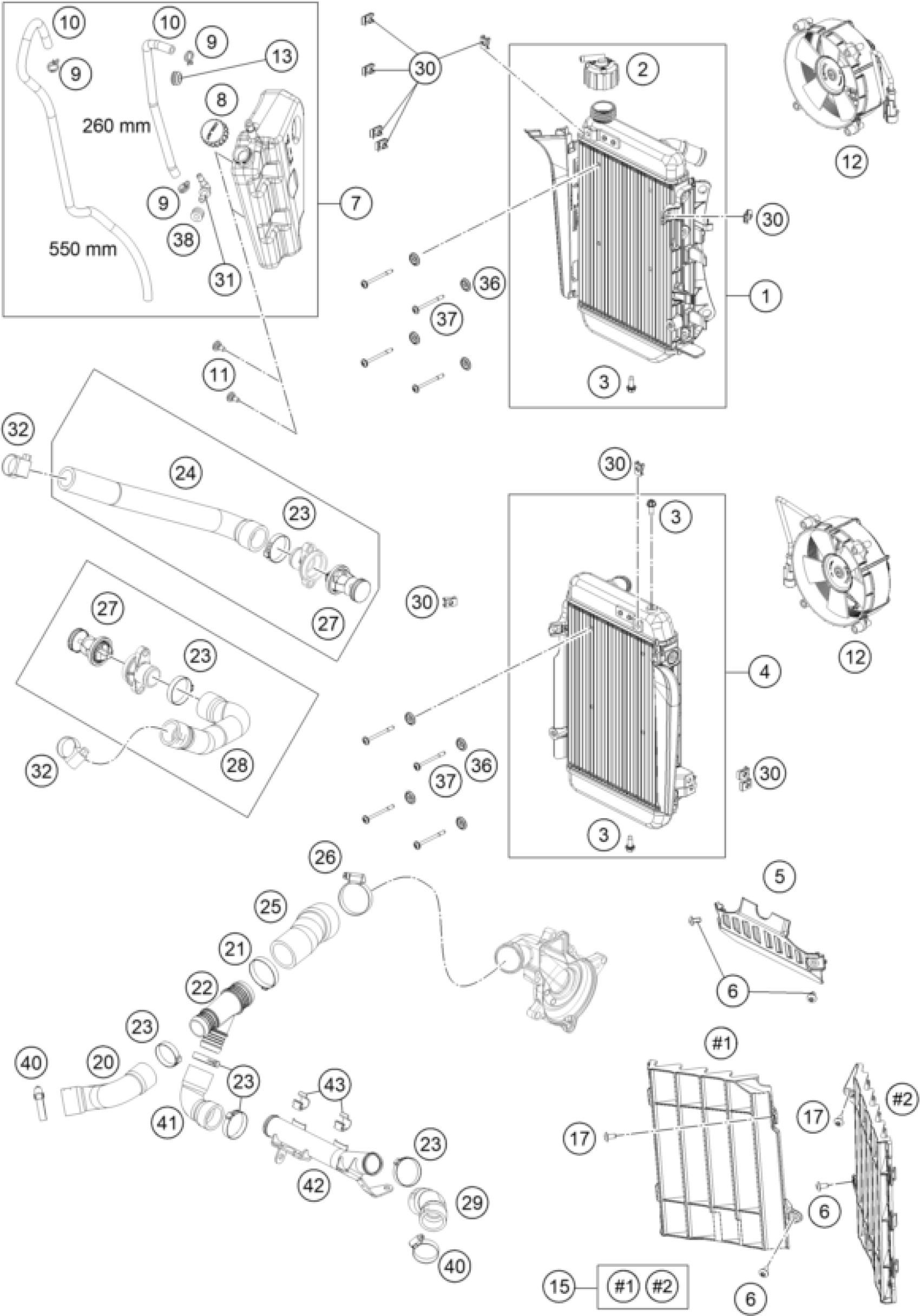

KTM 1290 SUPER ADVENTURE R 2024 COOLING SYSTEM Diagram

#

Description
Price

1

Radiator right

61935008100

$282.92

2

RADIATOR CAP 1,4 BAR

62535009000

$25.42

3

collar screw

69135013

$5.32

4

Radiator left

61935007000

$317.14

5

Radiator cowl

61935012100

Unavailable

6

SCREW TORX M5X10

78105081010

$2.05

7

Reservoir, cmpl.

61935065133

$68.43

8

Latch, compens. tank cpl.

60335066044

$6.72

9

YDNAC-CLAMP 10107 10MM

58007117000

$3.08

10

HOSE 6X10 EPDM 03

60035067001

Unavailable

11

special screw M5x12

69008021160

$4.11

12

Fan cover, cmpl.

61935044033

$159.60

13

rubber grommet 9x11x16x8.5 mm

60006001022

$2.05

15

radiator protection left/right

61935036000C1

$28.98

17

Oval head screw M5x14 TX25

58605083014

$3.08

20

Pre-formed hose

61935024080

$19.44

21

VARIABLE ONE-EAR CLAMP 39,6MM

00050396706

$7.00

22

Y-JOINT

60335093000

$8.59

23

Stufenlose Einohrklemme 33,1mm

00050331706

$3.08

24

Pre-formed hose

61935024020

$22.62

25

Pre-formed hose

61935024070

$18.78

26

HOSE CLAMP 30-45 SGT

54305058000

$5.23

27

Thermostat 80°

61935017000

$37.58

28

Pre-formed hose

61935024010

$24.96

29

Pre-formed hose

61935024050

$18.22

30

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

31

Angle piece, reservoir

60035068000

$3.08

32

Hose clip 18-29

0310000902900

$2.05

36

Washer

69150036

$1.49

37

Screw K40x46/10

69135015

$4.11

38

RUBBER SLEEVE 6X9X14MM

70003065000

$2.05

40

Hose clip 22-33

79135031000

$2.05

41

Pre-formed hose

61935024060

$18.50

42

Radiator connecting pipe, left

61935090000

$134.72

43

Clip, reservoir hose

61907029110

$1.49
