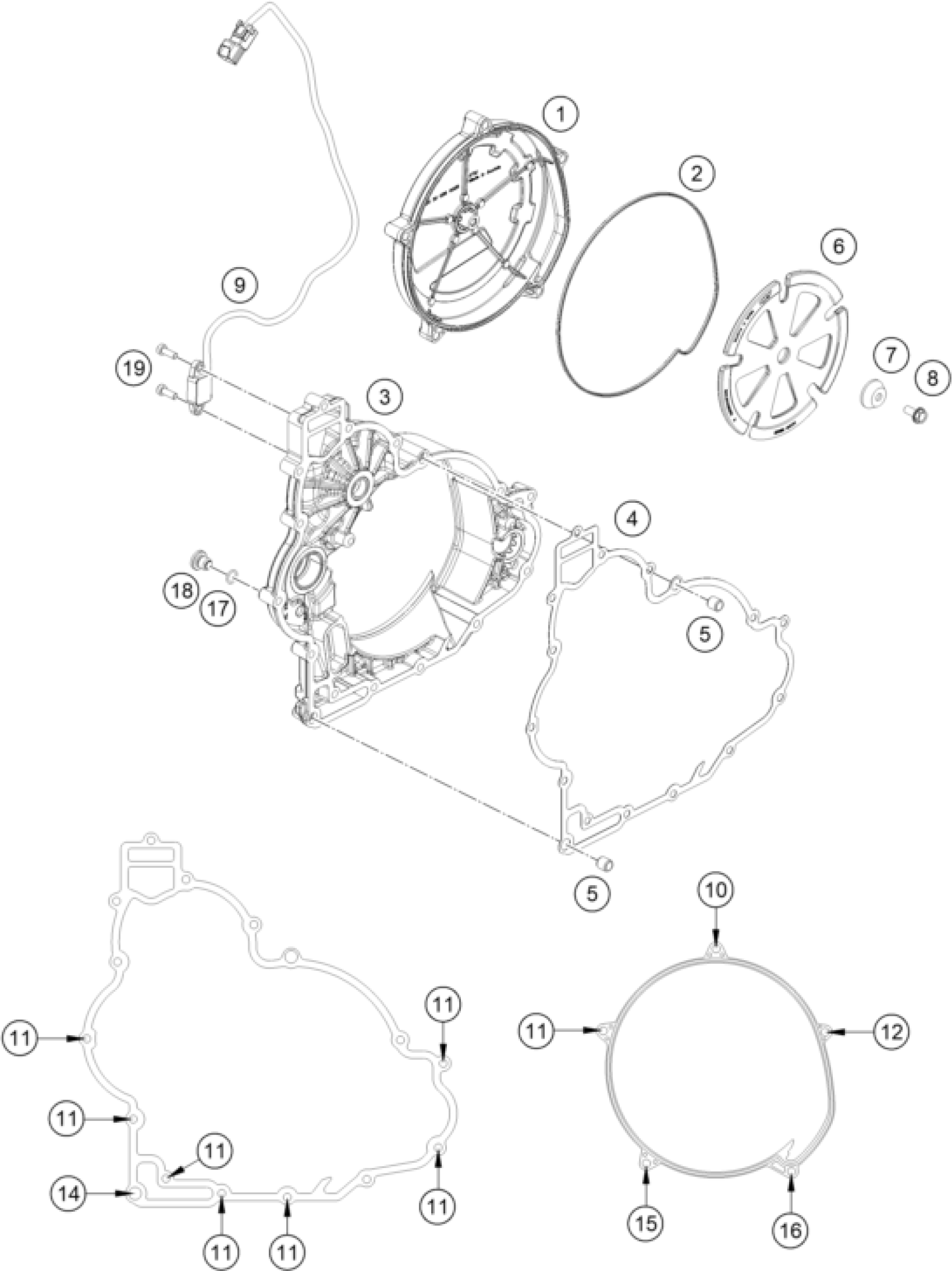

KTM 1290 SUPER ADVENTURE R 2024 CLUTCH COVER Diagram

#

Description
Price

1

OUTER CLUTCH COVER

6033002600041

Unavailable

2

MOLDED RING OUTER CLUTCH COVER

61230027000

Unavailable

3

Clutch cover cmpl.

6173000103341

Unavailable

4

Clutch Cover Gasket

61730025000

Unavailable

5

DOWEL 9,8 X7X10

49030090100

Unavailable

6

DAMPING SHEET CPL.

60330026050

Unavailable

7

Bushing

60330126053

Unavailable

8

EJOT ALTRACS SCR. WN5147,60X14

60030126080

Unavailable

9

Shift shaft sensor

61434051000

Unavailable

10

HH COLLAR SCREW M6X95 TX30

0025060956

Unavailable

11

HH collar screw M6x30 TX30

0025060306

Unavailable

12

HH COLLAR SCREW M6X90 TX30

0025060906

Unavailable

14

HH collar screw M6x35 TX30

0025060356

Unavailable

15

HH collar screw M6x25 TX30

0025060256

Unavailable

16

HH COLLAR SCREW M6X85 TX30

0025060856

Unavailable

17

O-RING 9x1,5 V80 SH

07700900151

Unavailable

18

SCREW PLUG

77336056095

Unavailable

19

CYL. SCREW DIN6912 M5X14 8.8

0984050143S

Unavailable
