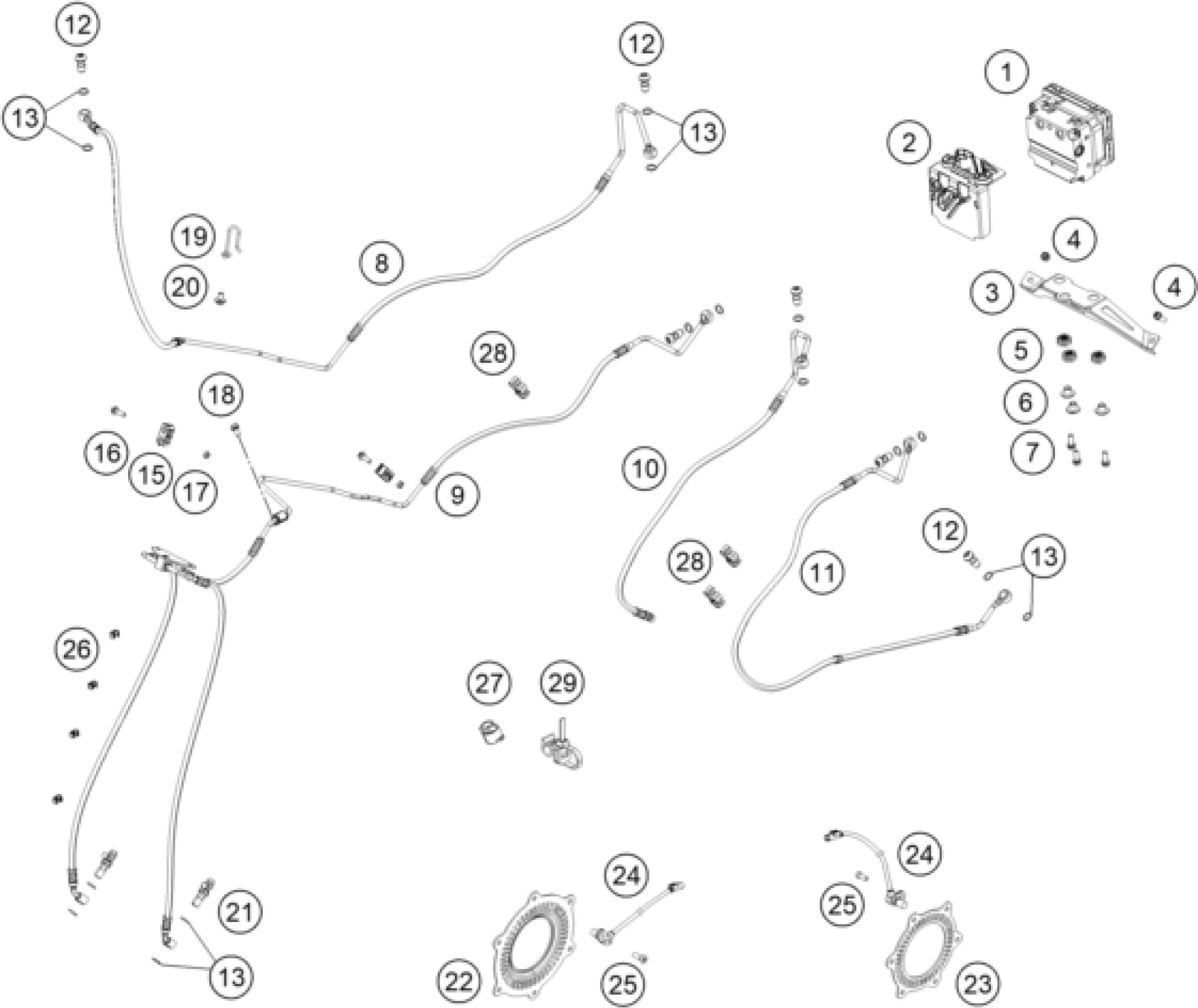

KTM 1290 SUPER ADVENTURE R 2024 ABS Diagram

#

Description
Price

1

ABS Modulator refill

61942031044

$3,639.57

2

Anti-rotation lock, ABS wires

61942033000

$14.11

3

Retaining bracket, ABS module

61942040000

$48.99

4

HH collar screw M6x12 TX30

0025060126

$3.08

5

DAMP. COMPONENT ABS MODUL

62142041000

$4.11

6

Collar bushing 6,5x9x18x8.5

61342041100

$1.49

7

HH collar screw M6x16 TX30

0025060166

$3.08

8

Brake line rear master cylinde

61942003000

$158.29

9

Brake line, brake caliper, fro

61942104000

$243.75

10

Brake line, rear master cylind

61942101000

$116.21

11

Brake line, rear brake caliper

61942102000

$153.80

12

banjo bolt M10x1x19.5

62113020100

$8.78

13

sealing ring DIN 7603 10x14x1

0603100141

$2.05

15

Bracket for brake line M5

61913046000

$10.84

16

HH COLLAR SCREW M 5X16 WS=6

0014050163

$2.05

17

Self locking nut DIN 985 M5

0985050003

$2.05

18

HH collar screw M6x10 TX30

0025060106

$3.08

19

Bracket for brake line

61942003070

$2.05

20

HH COLLAR SCREW M6X10 TX30

0024060106

$3.08

21

BLEEDER SCREW CPL. 05

62513020000

$27.48

22

Phonic wheel ABS

60342020000

$27.95

23

Phonic wheel ABS, rear

60142021100

$21.59

24

ABS-SENSOR

76042125000

$189.98

25

Cap head bold ISO 14580 M6x16

014580060166

$2.05

26

BAR SPACER 4/7 BLACK

60111094100

$5.79

27

spacer bracket D=6/8,5mm

76913047010

$3.08

28

Support ABS-pipe d7.5

61342046000

$11.68

29

Cable tie with cable holder D=

0330000400700

Unavailable
