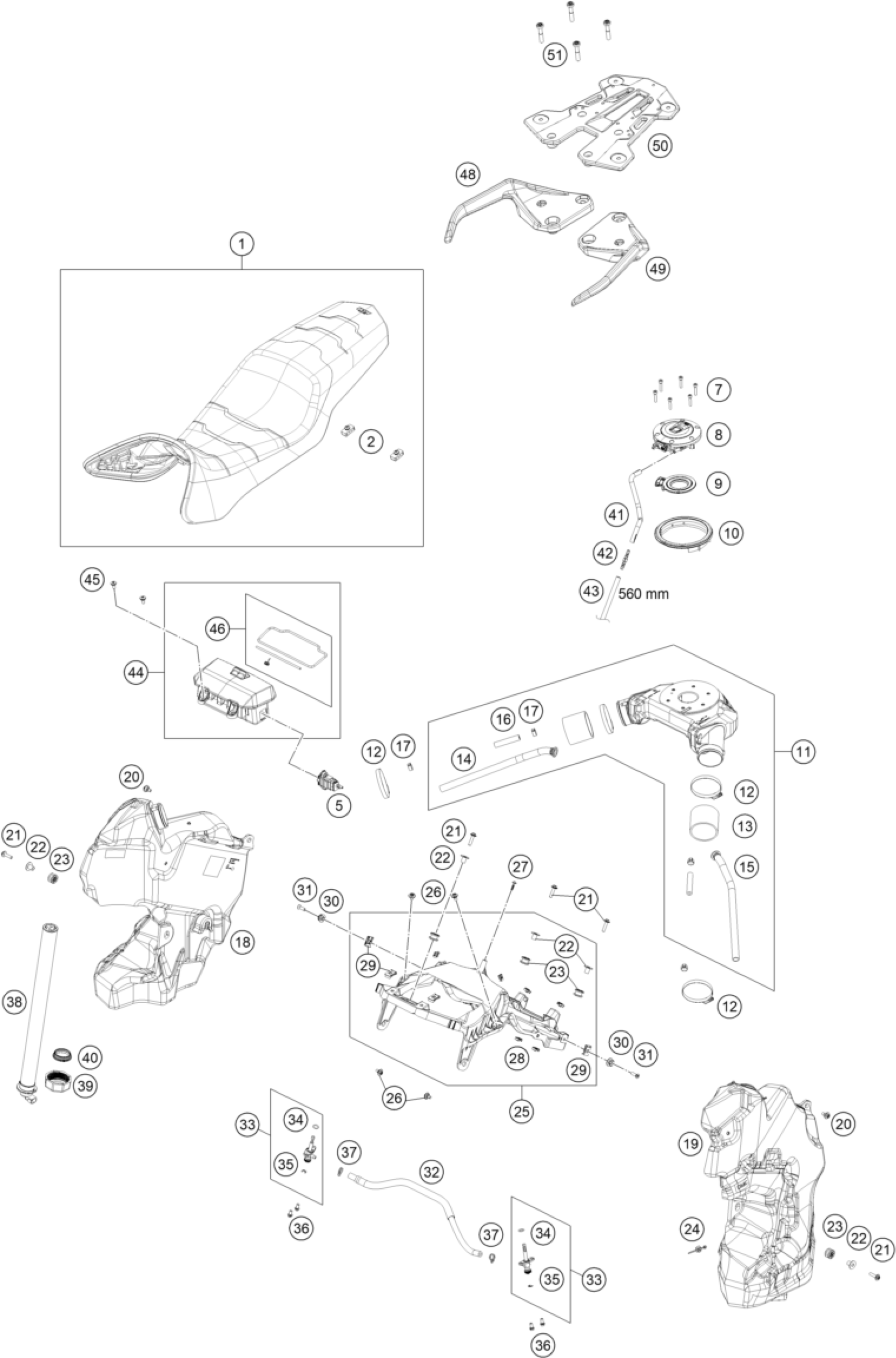

KTM 1290 SUPER ADVENTURE R 2023 TANK, SEAT Diagram

#

Description
Price

1

Seat R

61907140000C1A

Unavailable

2

Rubber support

28503002010

$4.11

7

AH SCREW DIN0912-M 5X25

0912050253

$1.49

8

Fuel cap Race-on

61907008000

$470.39

9

Gasket for fuel tank cap

61907008010

$17.57

10

Fuel tank cap ring

61907009000

$6.82

11

Fuel tank carrier w. manifold

61907013066

$387.74

12

HOSE CLAMP 50-70MM

51006027000

$6.07

13

Fuel hose, 60x67 L=56 mm

06000060056

$29.82

14

Inner vent hose right

61907013071

$40.57

15

Inner vent hose

61907013070

$40.57

16

Fuel hose 6.4x3.2 L=67

60007416067

$6.82

17

VARIABLE ONE-EAR CLAMP 14,0MM

00050140706

$2.05

18

Fuel tank right cmpl.

61907013025

$387.74

19

Fuel tank left cmpl.

61907013015

$296.11

20

Special screw M6x15x5.5

83008100015

$3.08

21

HH COLLAR SCREW M6X25 TX30

0024060256

$3.08

22

COLLAR BUSH. 6,2X10X21X14MM 08

69007028000

$5.23

23

rubber grommet, tank mounting

69007027000

$3.08

24

Cable strap w.plug-in foot for

61711094100

$2.05

25

Fuel tank carrier cpl.

61907013055

$83.30

26

special screw M6x12x3

83008000012

$3.08

27

SCREW FOR PLASTIC K50X18 T20

0081050181

$2.05

28

RANGE CHANGE METAL NUT M5 INOX

54603048600

$2.05

29

clip nut M6

54603048100

$4.11

30

Seat bushing

63507040070

$5.23

31

Count.snk screw M6x20 TX30

014581060201

$1.49

32

Tank compensation line cmpl.

61907117033

$55.06

33

Fuel cock cmpl.

58507003200

$26.55

34

O-RING 11X1,8 NBR 70

55007006200

$2.05

35

TAB WASHER DIN6799 RS5

0799050000

$1.49

36

HH collar screw M6x12 TX30

0025060126

$3.08

37

CLAMP YDNAC 10128 12MM

58031005000

$3.08

38

Fuel level sensor

61907080000

$105.55

39

Sleeve nut, fuel level sensor

61907080020

$13.36

40

Gasket, fuel level sensor

61907080010

$16.82

41

Pre-formed hose for tank overf

61907020000

$17.57

42

HOSE CONNECTION STRAIGHT

69015019010

$5.23

43

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

44

Storage compartment cmpl.

61912078033AC

$216.72

45

special screw M6x14

69008021040

$2.05

46

Repair kit storage compartment

61912078044

$18.69

48

Grip handle right

61912009000

$40.20

49

Grip handle left

61912008000

$36.54

50

Baggage carrier plate

61912010050C1

$193.91

51

AH-COLLAR SCREW M8X40 ISA45

0035080406

$5.23

5

USB power socket 12 V

64111043000

$47.77
