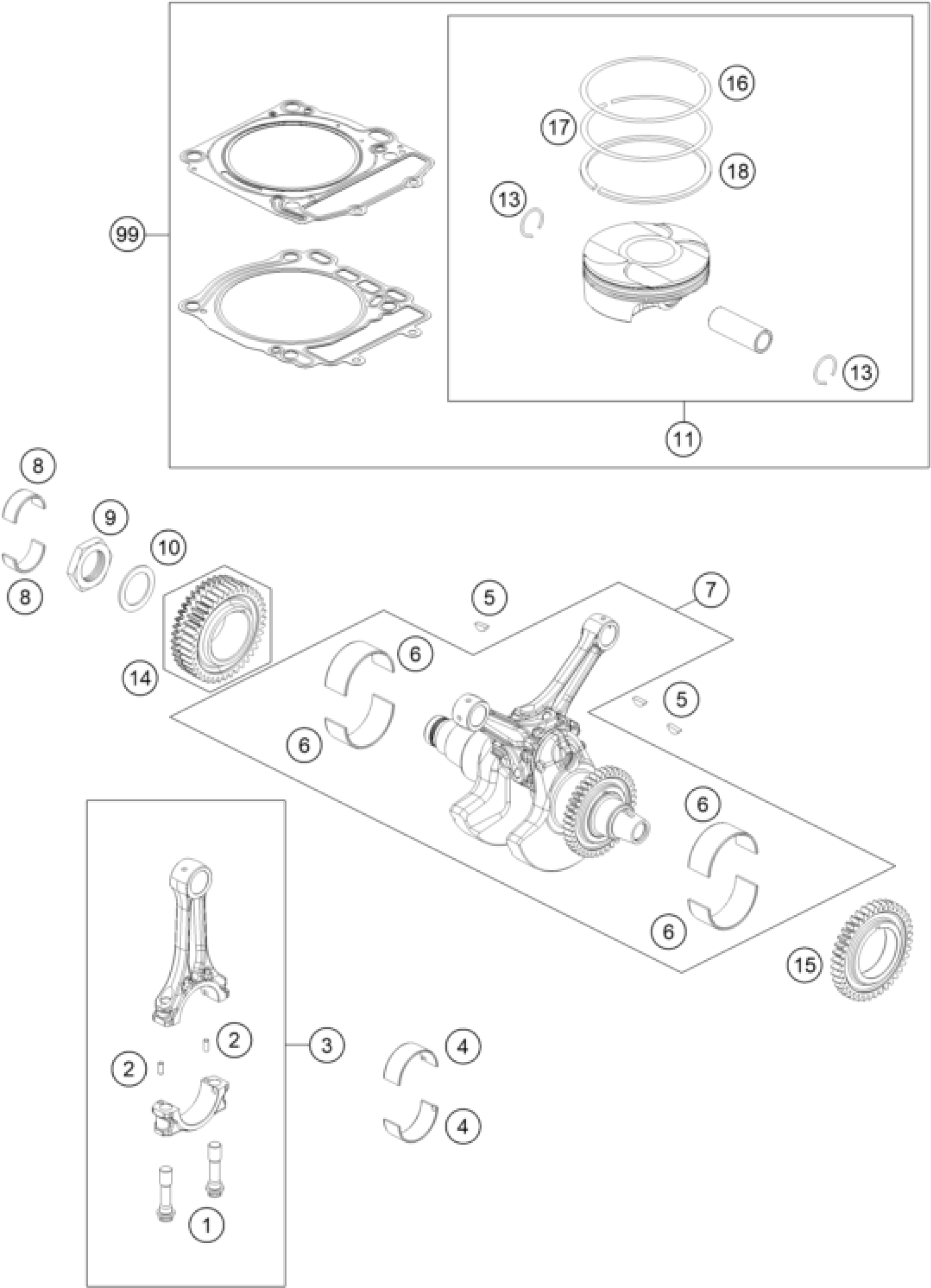

KTM 1290 SUPER ADVENTURE R 2023 CRANKSHAFT, PISTON Diagram

#

Description
Price

1

CONNECTING ROD SCREW MJ10X1

61230015100

Unavailable

2

Needle roll.DIN5402 NRB 4X9.8

0402040980

Unavailable

3

CON ROD

61430015000

Unavailable

4

SPLIT BEAR. BUSH RED

612300151101

Unavailable

4

SPLIT BEAR. BUSH BLUE

612300151102

Unavailable

4

SPLIT BEAR. BUSH YELLOW

612300151103

Unavailable

5

woodruff key DIN 6888 4x5x13

0888040050

Unavailable

6

SPLIT BEAR. BUSH RED 08

612300820001

Unavailable

6

SPLIT BEAR. BUSH BLUE 08

612300820002

Unavailable

6

SPLIT BEAR. BUSH YELLOW 08

612300820003

Unavailable

7

Crankshaft complete

61630018000

Unavailable

8

BUSHING BOWL 28X32X13 03

60030026010

Unavailable

9

HH-NUT M33X1,5 L/S WS46 03

60032009050

Unavailable

10

WASHER 33,2X46X2 03

60032009040

Unavailable

11

Piston cpl. size I

61730007000 I

Unavailable

11

Piston cpl. size II

61730007000 II

Unavailable

13

CIRCLIP LC4 07

75030074000

Unavailable

14

Primary gear cmpl.

61330055100

Unavailable

15

DRIVE WHEEL BALANCER SHAFT 08

61230056000

Unavailable

16

RECTANGULAR RING

61330030000

Unavailable

17

TAPERED COMP. PISTON RING

61330031000

Unavailable

18

OIL SCRAPER RING D108

61330032100

Unavailable

99

Piston Kit I

61730007010 I

Unavailable

99

Piston Kit II

61730007010 II

Unavailable
