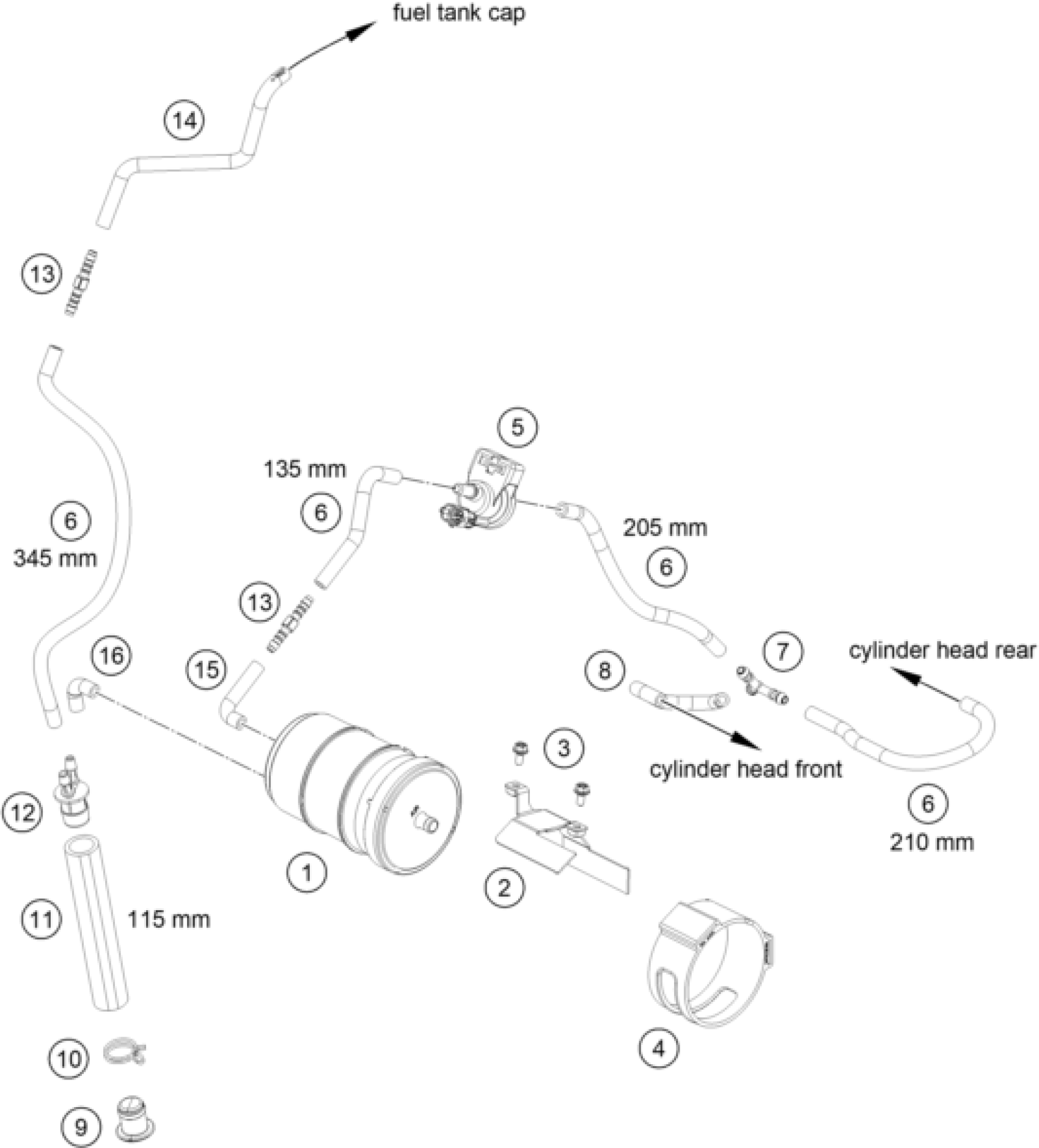

KTM 1290 SUPER ADVENTURE R 2022 EVAPORATIVE CANISTER Diagram

Activated charcoal filter

61915001000

$58.43

Ret. bracket act. charcoal fil

61915001040

$25.14

HH collar screw M5x10 TX30

0025050106

$1.49

Rubber band ACF

61915001010

$9.34

EVAP valve

76015015000

$254.78

HOSE EPA D=6/10 L=2000MM

78015019000

$62.64

Y-CONNECTING PIECE YS 6-6-6 06

60015025100

$5.23

Pre-formed hose, ACF valve

61915021000

$22.52

Plug D=18

61915026010

$8.87

YDNAC clamp W1 (25.8-27.4 mm)

0340001202700

$5.23

Hose, FKM/ECO, 18x25 per m.

61915022001

$8.69

Y-PIECE YS 6-18-6

61915028000

$5.23

HOSE CONNECTION STRAIGHT

69015019010

$5.23

Pre-formed hose for fuel tank

61915022100

$17.48

PREFORMED HOSE 6X10 FPM

61315022000

$10.84

Pre-formed hose ACF

61915020000

$10.74
