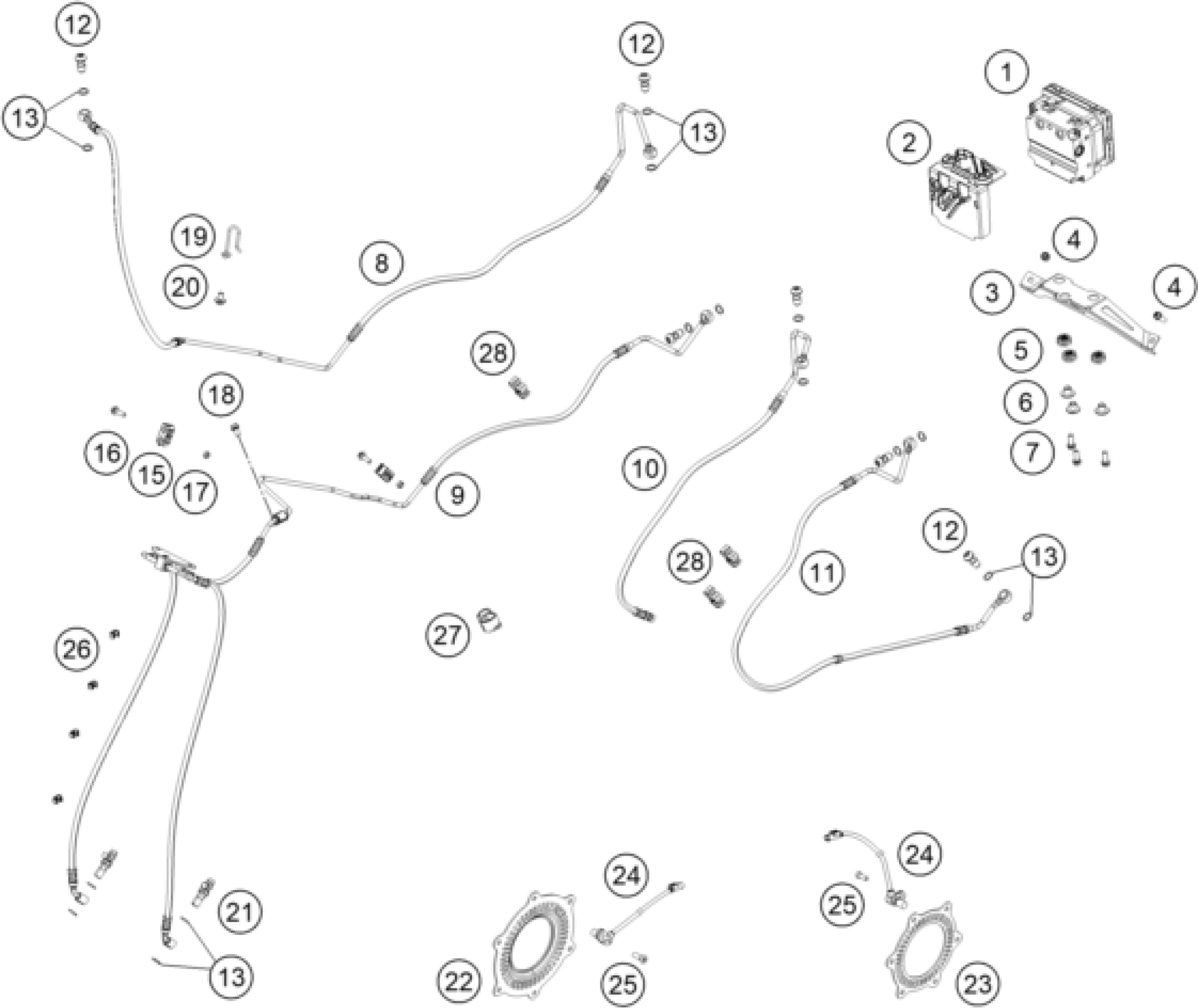

KTM 1290 SUPER ADVENTURE R 2022 ABS Diagram

#

Description
Price

1

ABS Modulator refill

61942031044

Unavailable

2

Anti-rotation lock, ABS wires

61942033000

Unavailable

3

Retaining bracket, ABS module

61942040000

Unavailable

4

HH collar screw M6x12 TX30

0025060126

Unavailable

5

DAMP. COMPONENT ABS MODUL

62142041000

Unavailable

6

Collar bushing 6,5x9x18x8.5

61342041100

Unavailable

7

HH collar screw M6x16 TX30

0025060166

Unavailable

8

Brake line rear master cylinde

61942003000

Unavailable

9

Brake line, brake caliper, fro

61942104000

Unavailable

10

Brake line, rear master cylind

61942101000

Unavailable

11

Brake line, rear brake caliper

61942102000

Unavailable

12

banjo bolt M10x1x19.5

62113020100

Unavailable

13

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

15

Bracket for brake line M5

61913046000

Unavailable

16

HH COLLAR SCREW M 5X16 WS=6

0014050163

Unavailable

17

Self locking nut DIN 985 M5

0985050003

Unavailable

18

HH collar screw M6x10 TX30

0025060106

Unavailable

19

Bracket for brake line

61942003070

Unavailable

20

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

21

BLEEDER SCREW CPL. 05

62513020000

Unavailable

22

Phonic wheel ABS

60342020000

Unavailable

23

Phonic wheel ABS, rear

60142021100

Unavailable

24

ABS-SENSOR

76042125000

Unavailable

25

Cap head bold ISO 14580 M6x16

014580060166

Unavailable

26

BAR SPACER 4/7 BLACK

60111094100

Unavailable

27

spacer bracket D=6/8,5mm

76913047010

Unavailable

28

Support ABS-pipe d7.5

61342046000

Unavailable
