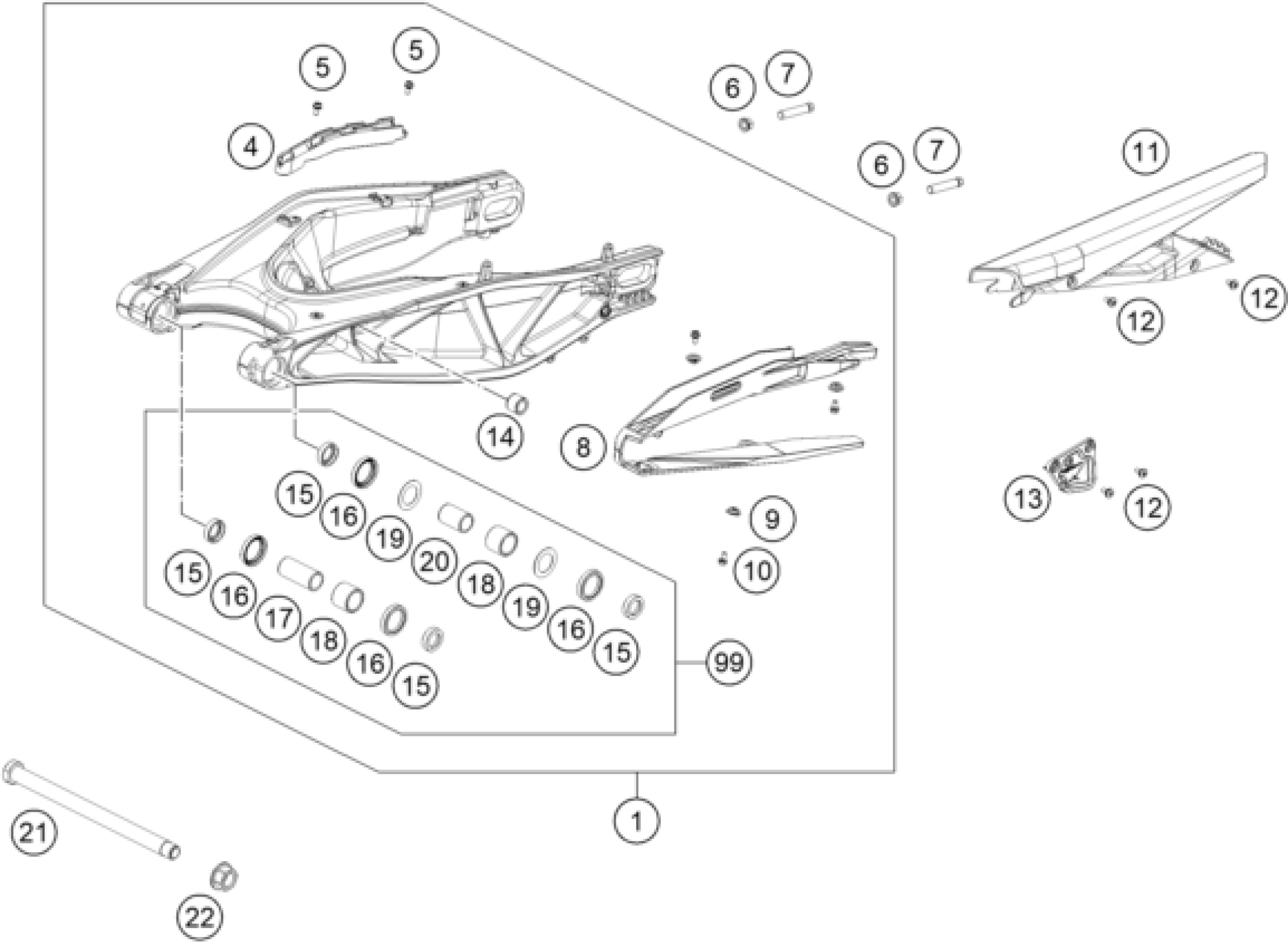

KTM 1290 SUPER ADVENTURE R 2021 SWING ARM Diagram

#

Description
Price

1

Swingarm Adventure 21

61904030044C1

Unavailable

4

Brake line holder

61904043000

Unavailable

5

SCREW TORX M5X10

78105081010

Unavailable

6

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

7

screw M10x1.25x50 WS10

50304040100

Unavailable

8

Chain slider

61904066100

Unavailable

9

BUSH FOR CHAINSLIDER GUARD 02

46104066050

Unavailable

10

INT. TORX OVAL HEAD M 5X10 8.8

0018050103

Unavailable

11

Chainguard

61904061000

Unavailable

12

special screw M5x12

69008021160

Unavailable

13

Chain guide

61904070000

Unavailable

14

BUSHING MONOSHOCK SOCKET 05

60004030151

Unavailable

15

Bucket f. shaft seal ring 03

60004034000

Unavailable

16

Radial shaft seal 30X40X7

0760304073

Unavailable

17

Inner ring JR 20X25X56.5

69004032000

Unavailable

18

NEEDLE BUSH HK2526B 03

60004031000

Unavailable

19

Stop disk 03

60004033000

Unavailable

20

INNER RING JR20X25X38,5 03

60004032000

Unavailable

21

Swingarm pivot

69004037344

Unavailable

22

Collar nut M19X1.5 SW=27MM

60004038200

Unavailable

99

swingarm rep. kit

69004230010

Unavailable
